Description, Compatibility and Features
Compatibility
** If you have 13-18 Ram with stock projector headlights, you will need our converters for installation. Please choose from dropdown box above. |
Design

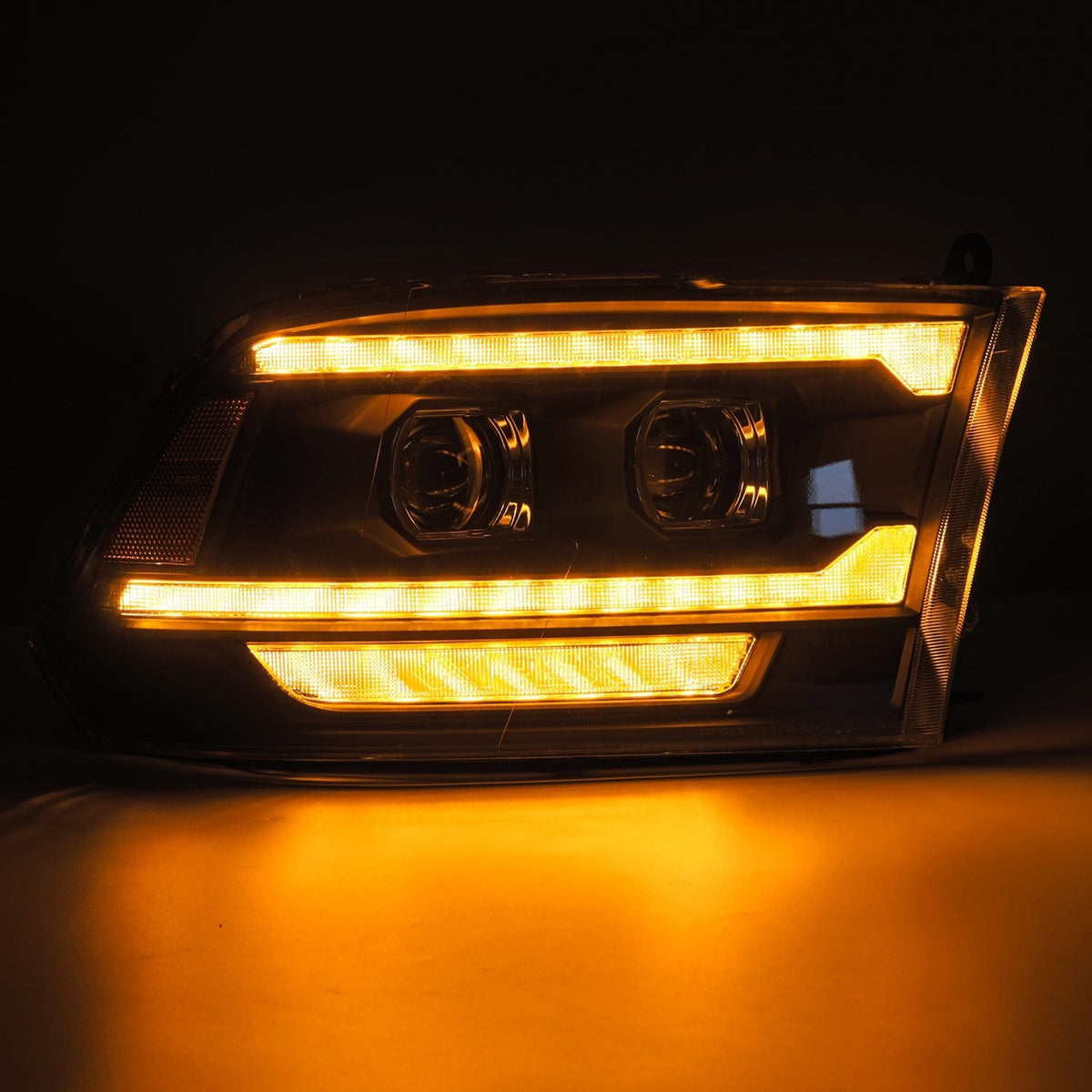

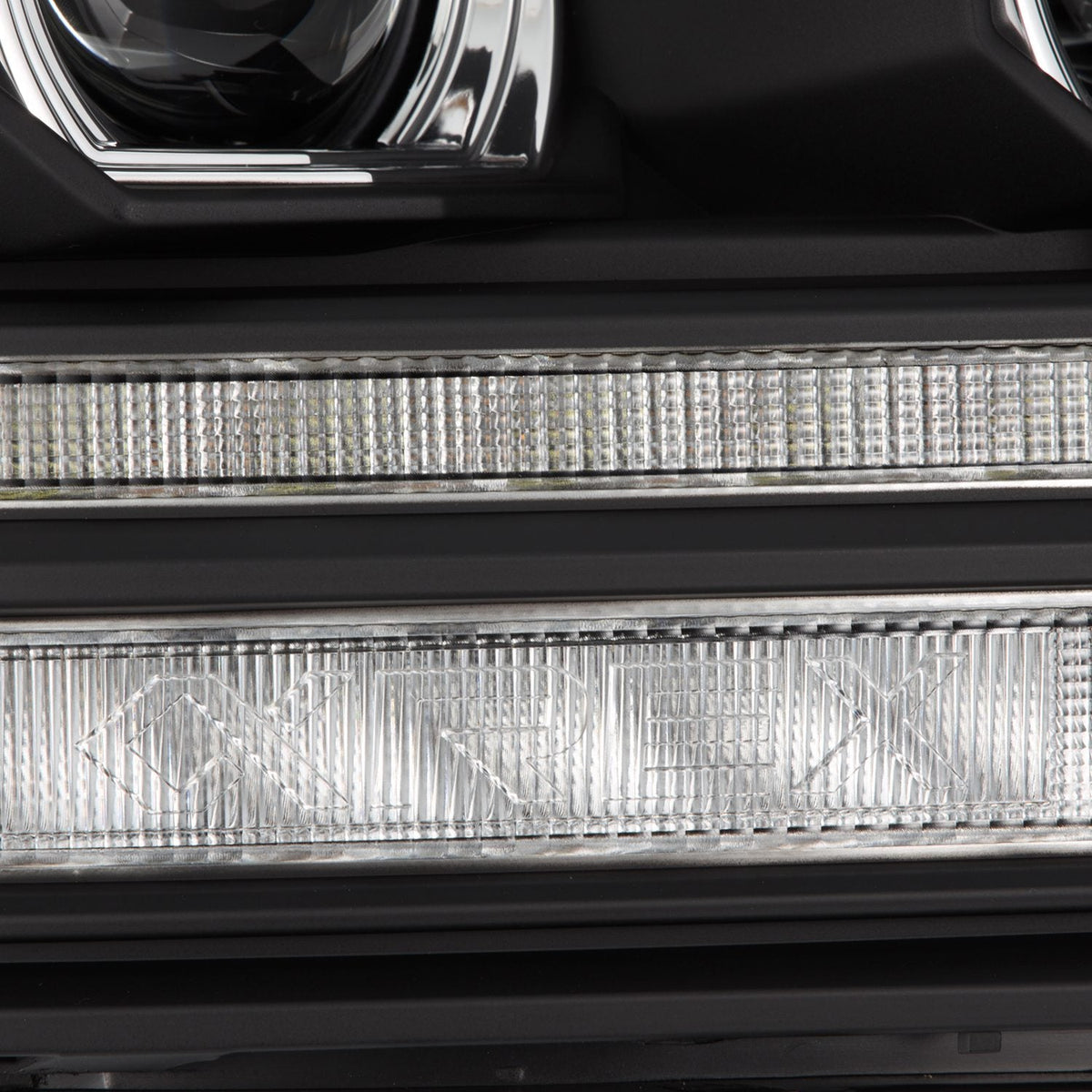

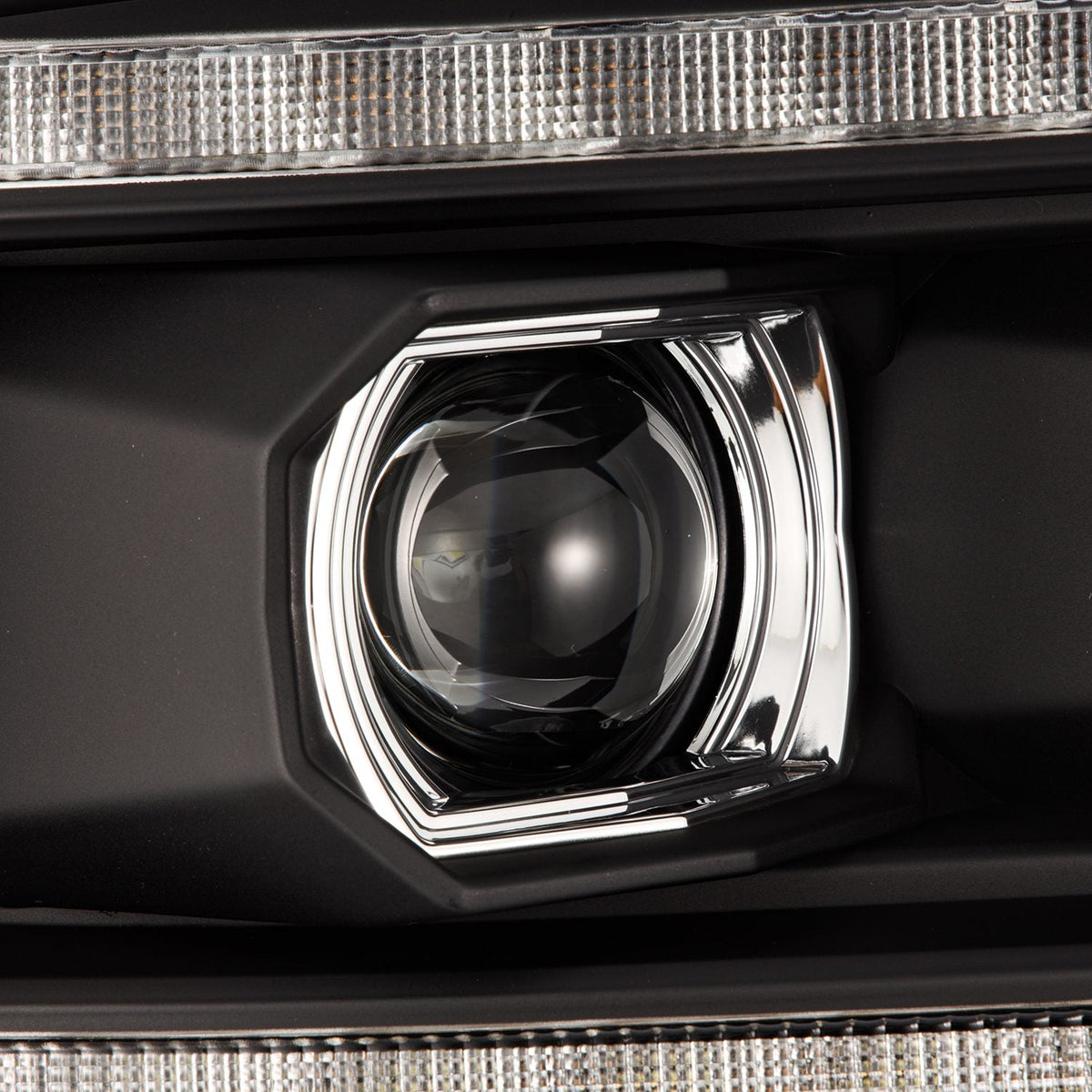

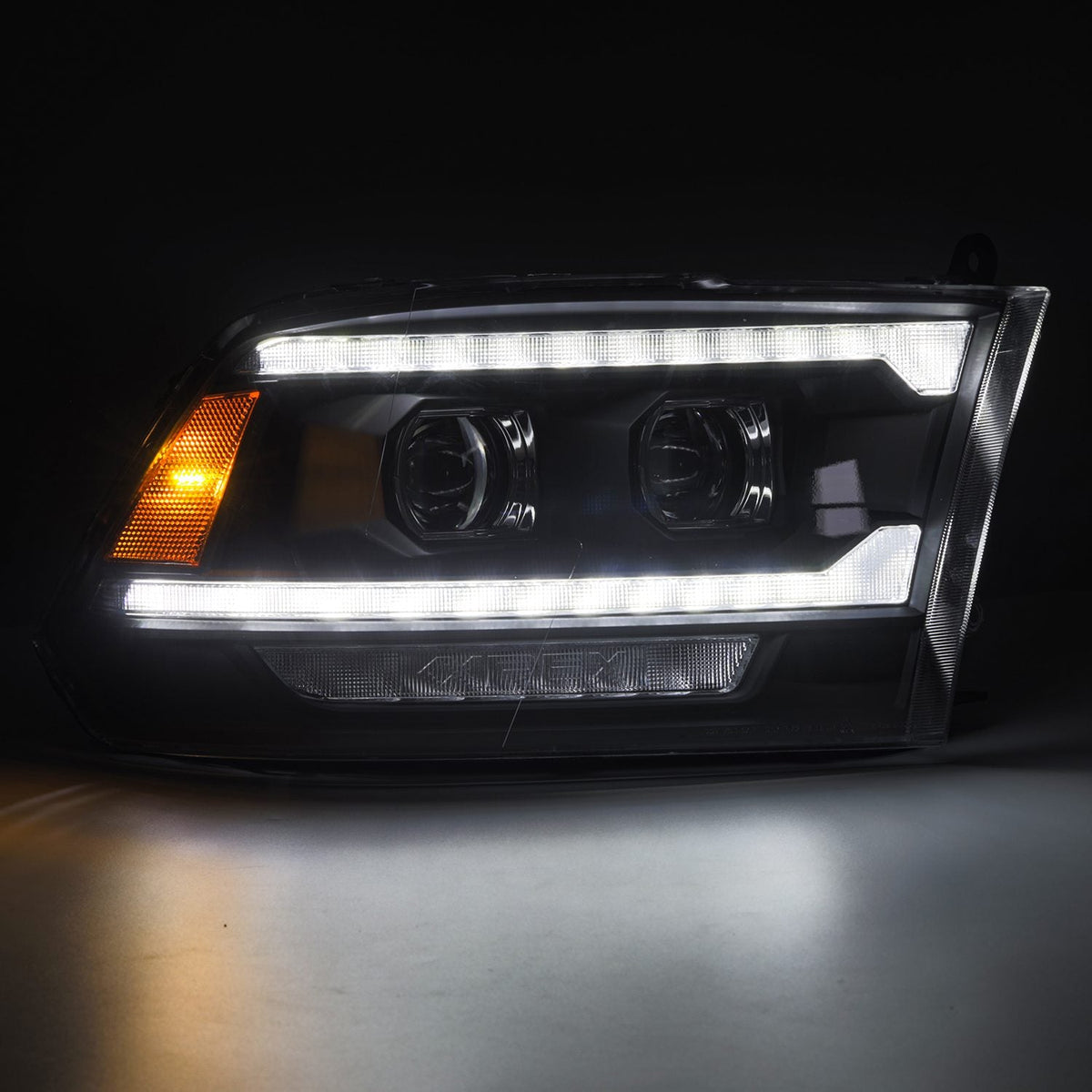

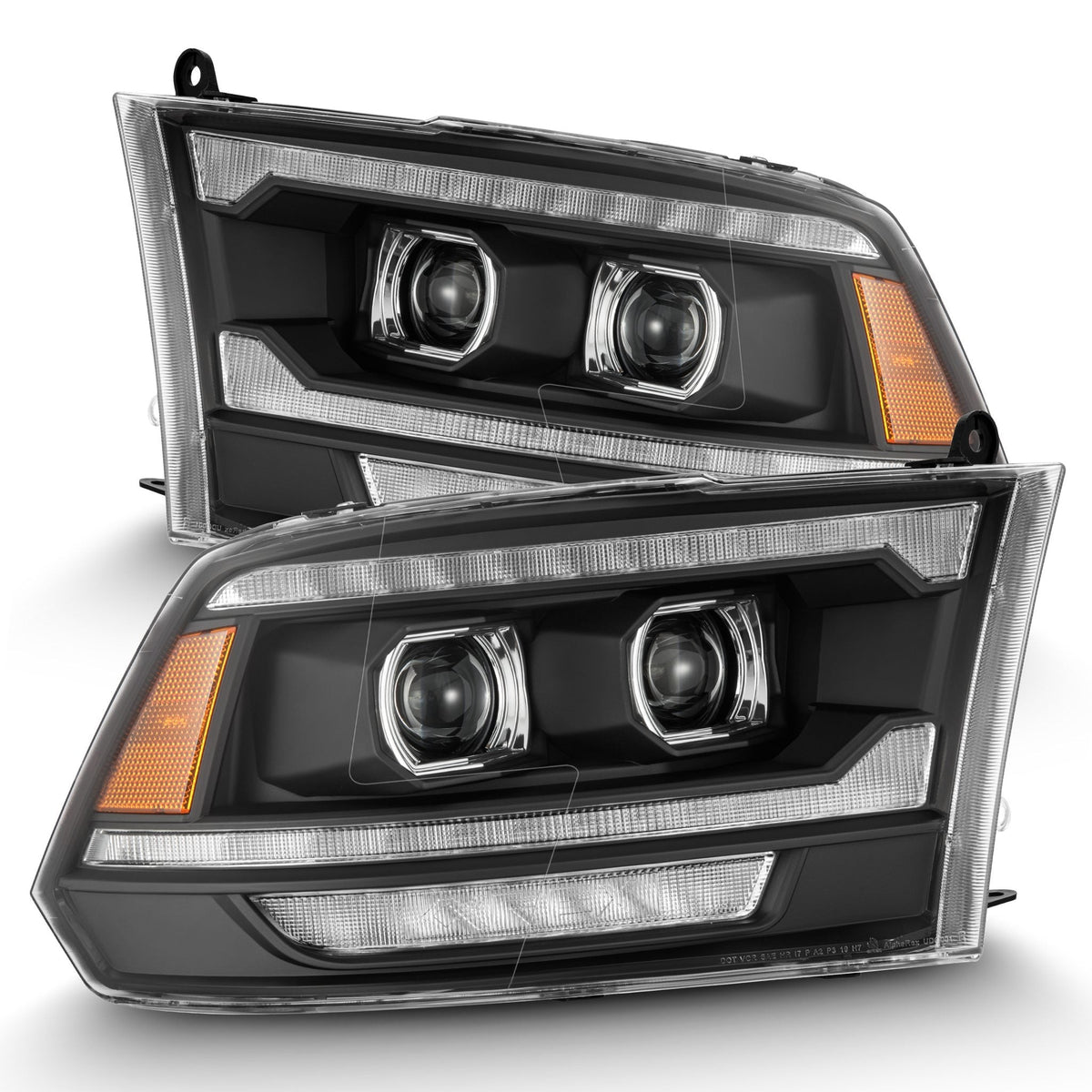

In crafting the 4th gen Ram Truck PRO-Series projector headlights, we adapted the design from the headlights of the 5th generation Ram 2500 trucks to suit the 4th generation Ram. These headlights feature white DRL and sequential turn signal lights at the top and middle DRL bars, complemented by amber LED sequential turn signal lights at the bottom. Moreover, the projectors are engineered as high/low beam projectors utilizing H7 halogen bulbs, equipped with a mechanism for seamlessly transitioning between low and high beam functionalities.
Components and Specifications
| Manufacturer SKU | 880561 |
|---|---|
| Manufacturer MPN | AHL-DR09-G5-P-S-B |
| SKU | 880561 880561 / 810003 |
| MPN | AHL-DR09-G5-P-S-B AHL-DR09-G5-P-S-B / AXHL-DR13-PP2HD-CVT-2PC |
| UPC | 810015614464 810015614464 / 810015611449 |
| Fitment | 09-18 Ram 1500 10-18 Ram 2500 10-18 Ram 3500 10-18 Ram 4500 10-18 Ram 5500 19-24 Ram 1500 Classic ** If you have 13-18 Ram with stock projector headlights, you will need our converters for installation |
| Weight | 22.27 lb |
| Length | 13.39 in |
| Height | 26.38 in |
| Width | 23.82 in |
| Low Beam | H7 Halogen Bulbs |
| High Beam | H7 Halogen Bulbs |
| Lens Material | Polycarbonate (PC) |
| Lens Color | Clear Lens |
| Housing Material | Polypropylene (PP) |
| Housing Color | Black |
Installation
Check vehicle compatibility, factory headlight type, and the selected converter or harness option before ordering. Follow the manufacturer instructions for installation and headlight aiming.
