Description, Compatibility and Features
Compatibility
** If you have 13-18 Ram with stock projector headlights, you will need our converters for installation. Please choose from dropdown box above. |
Design

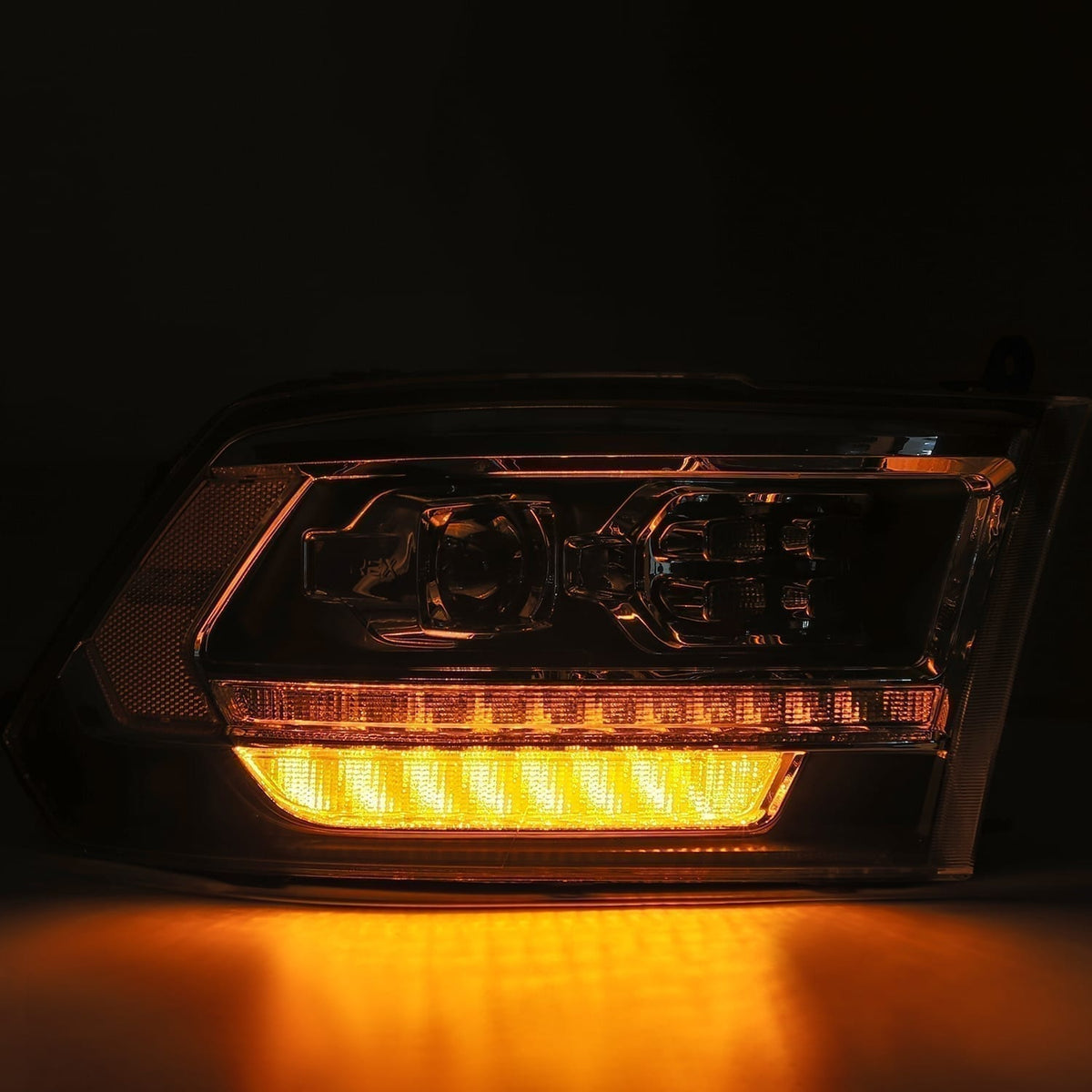

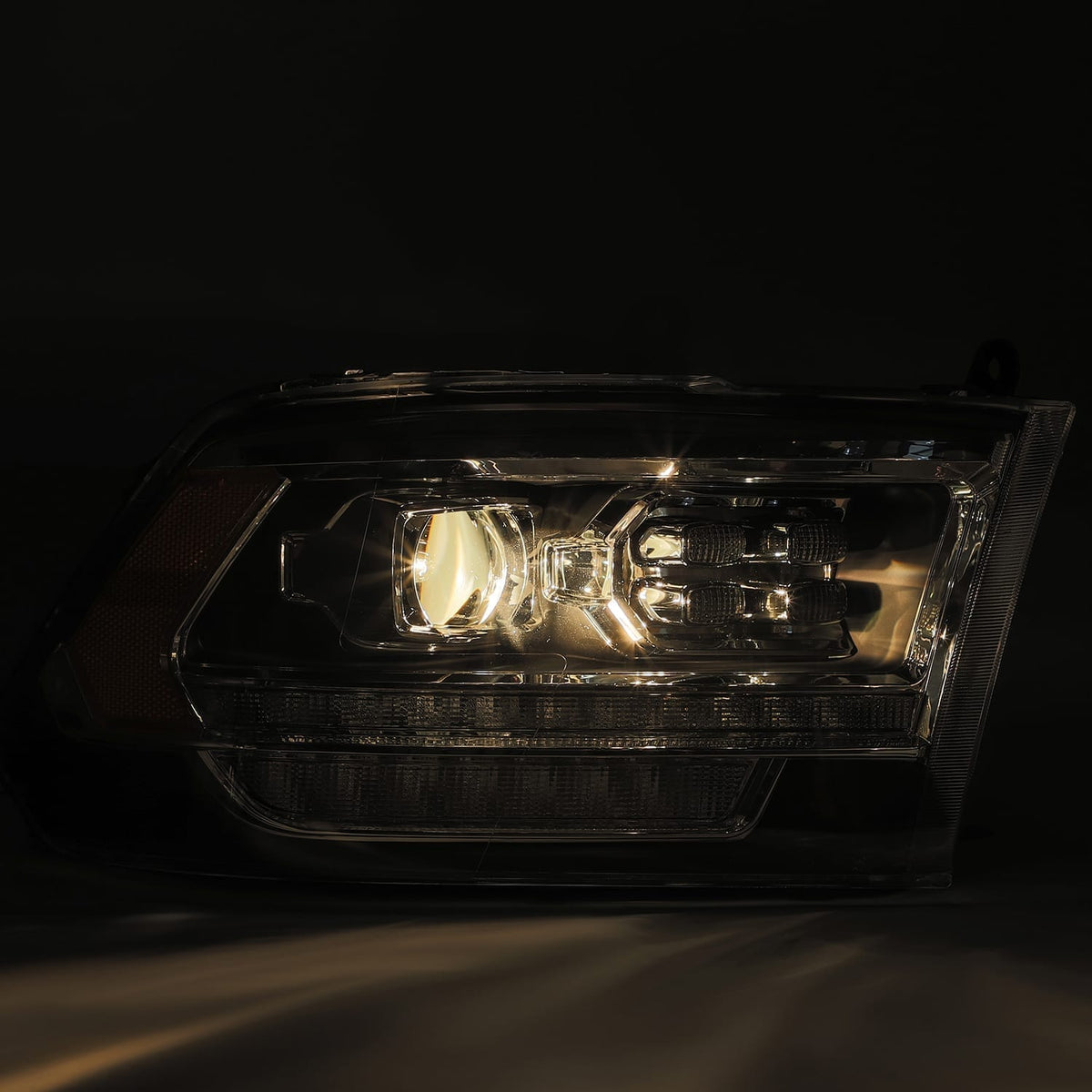

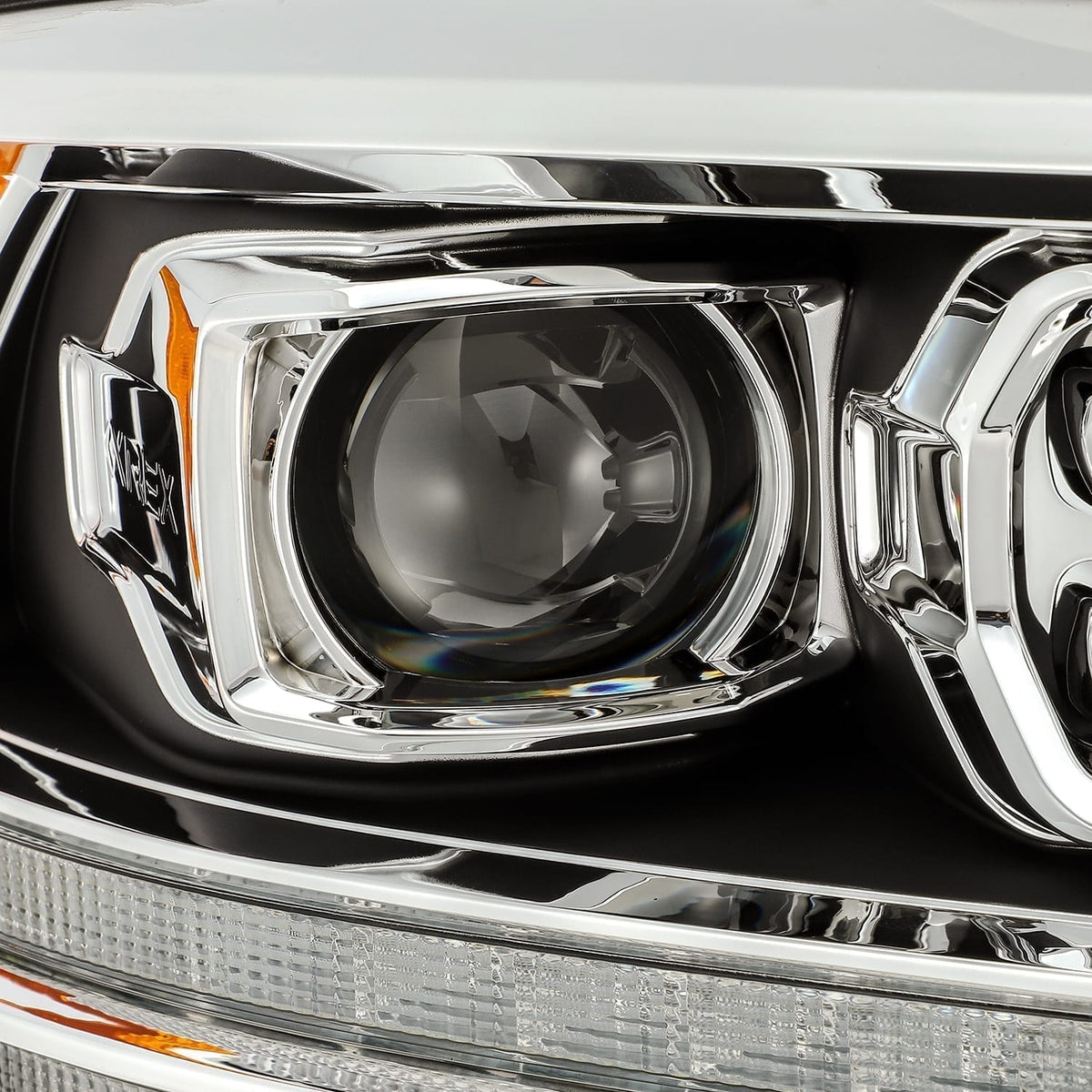

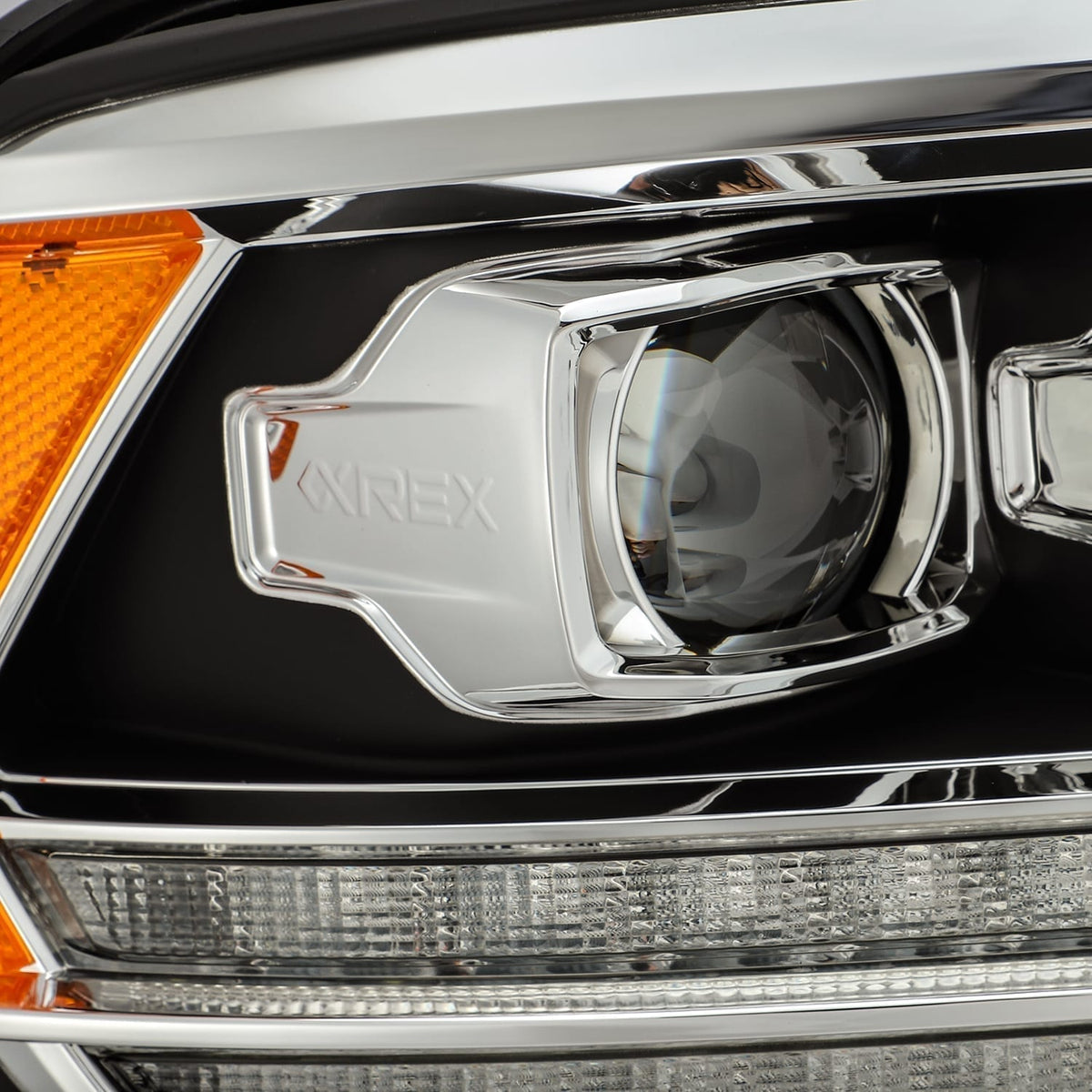

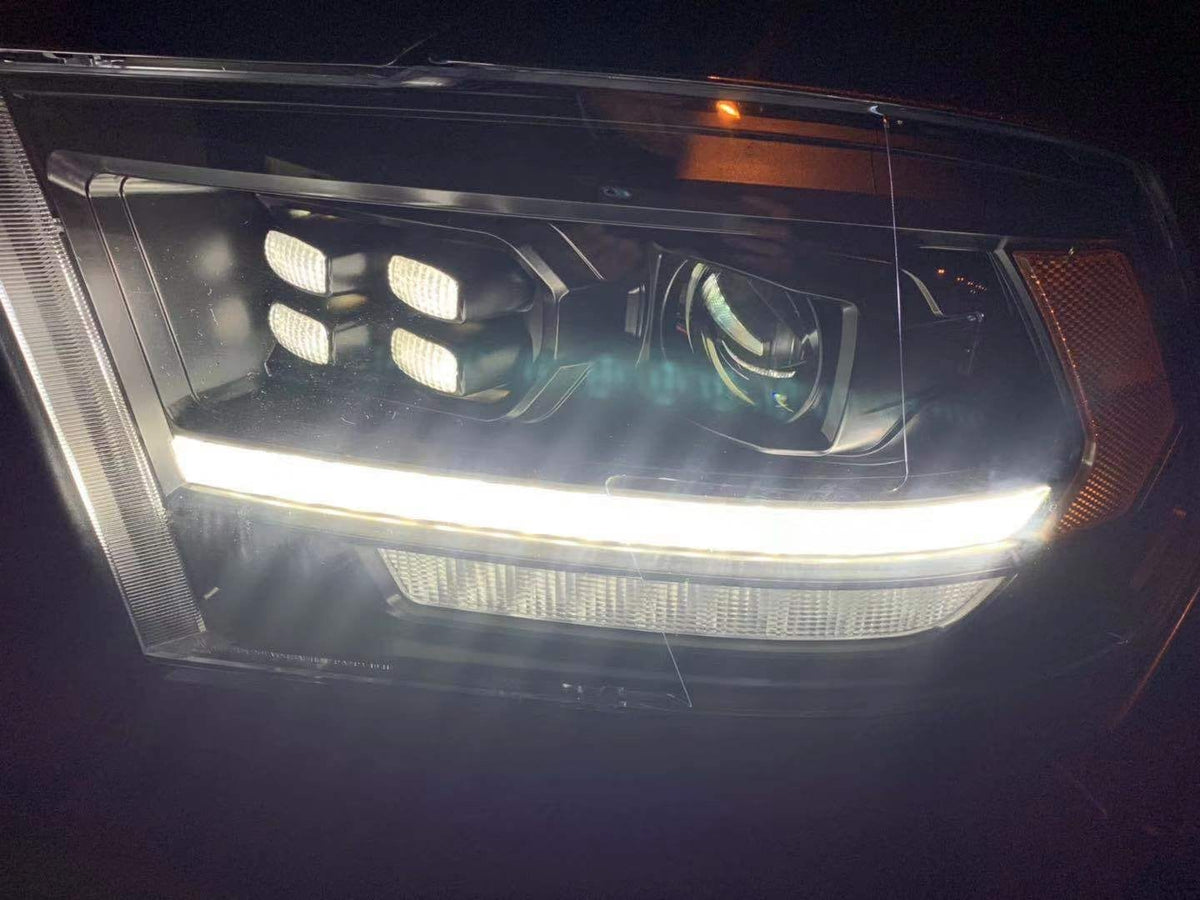

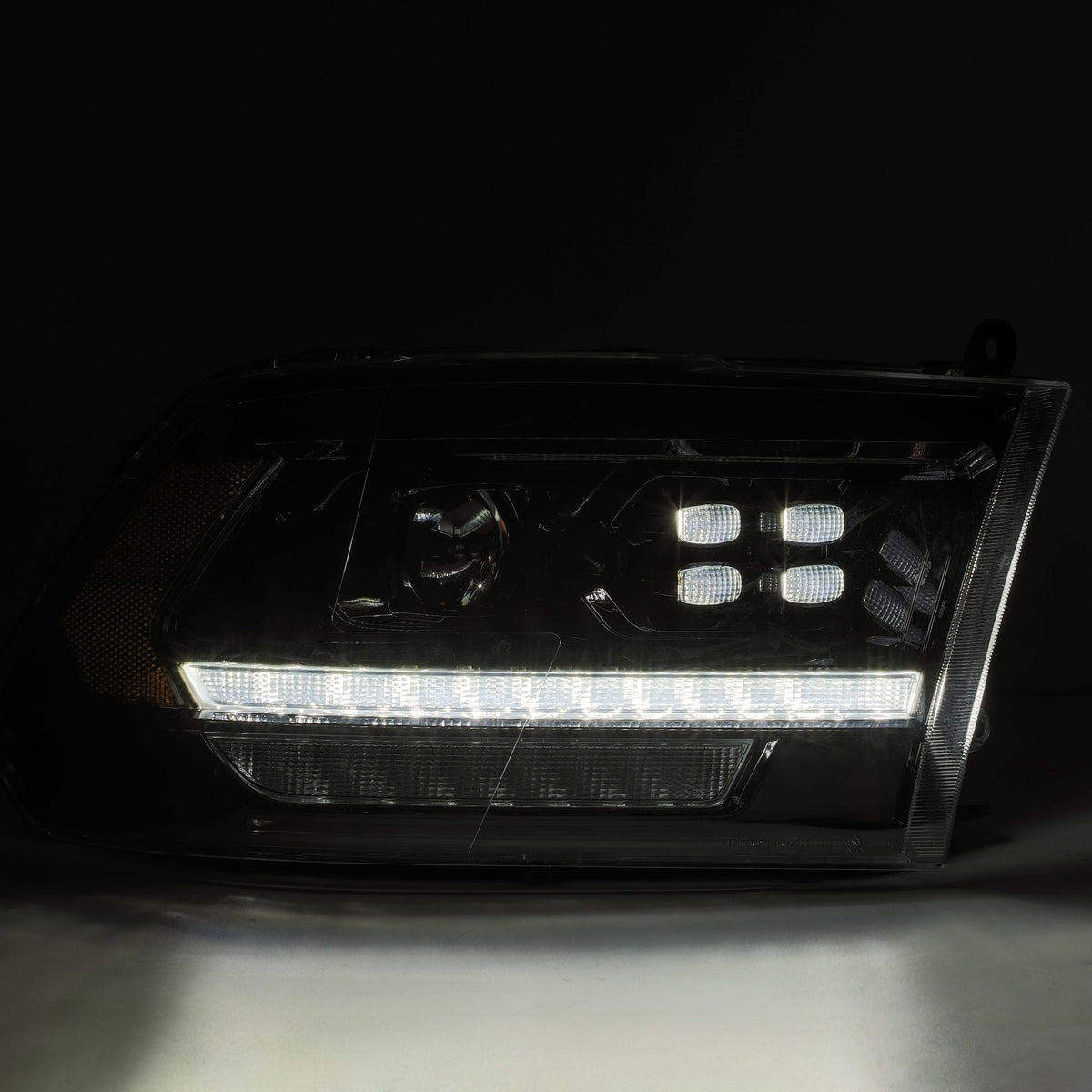

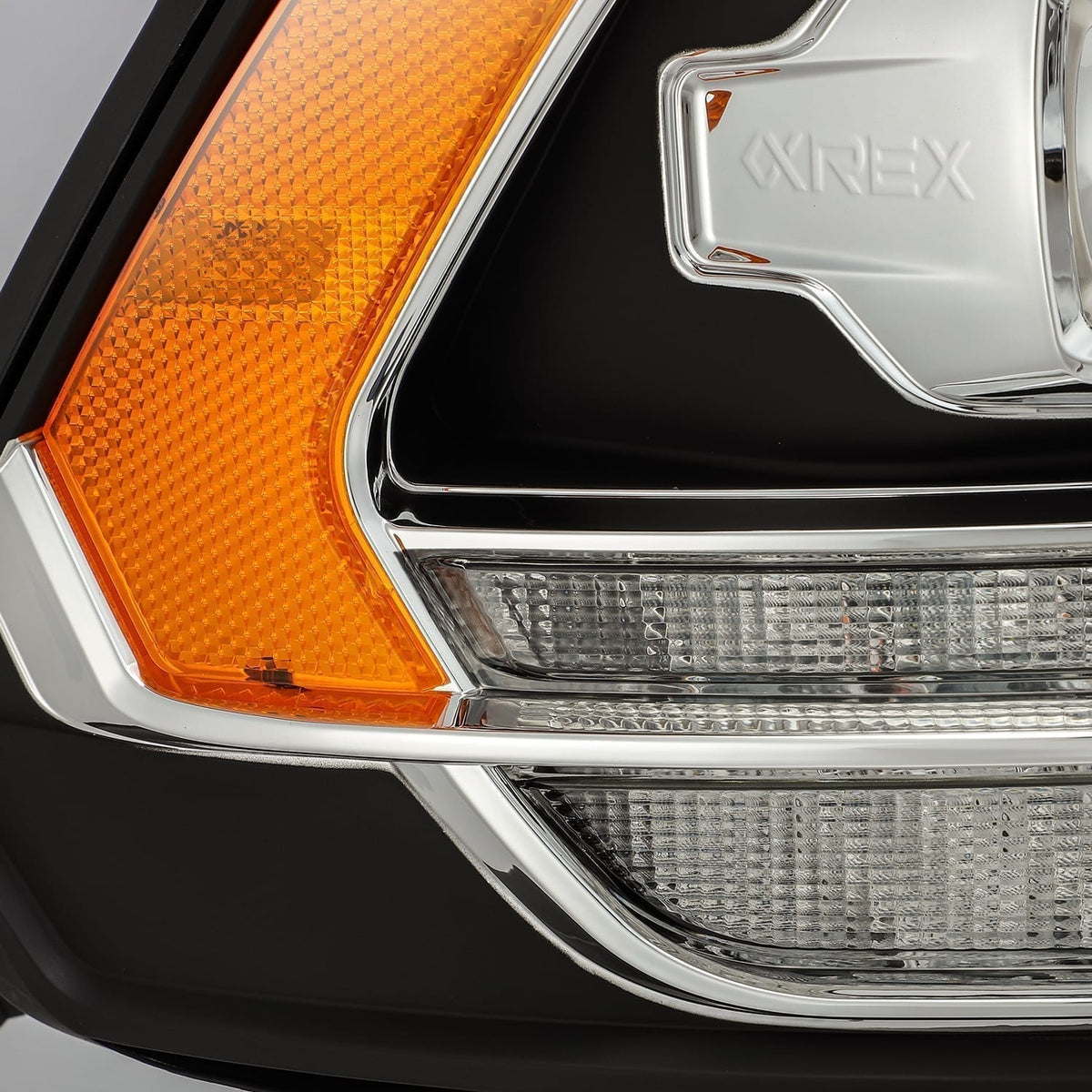

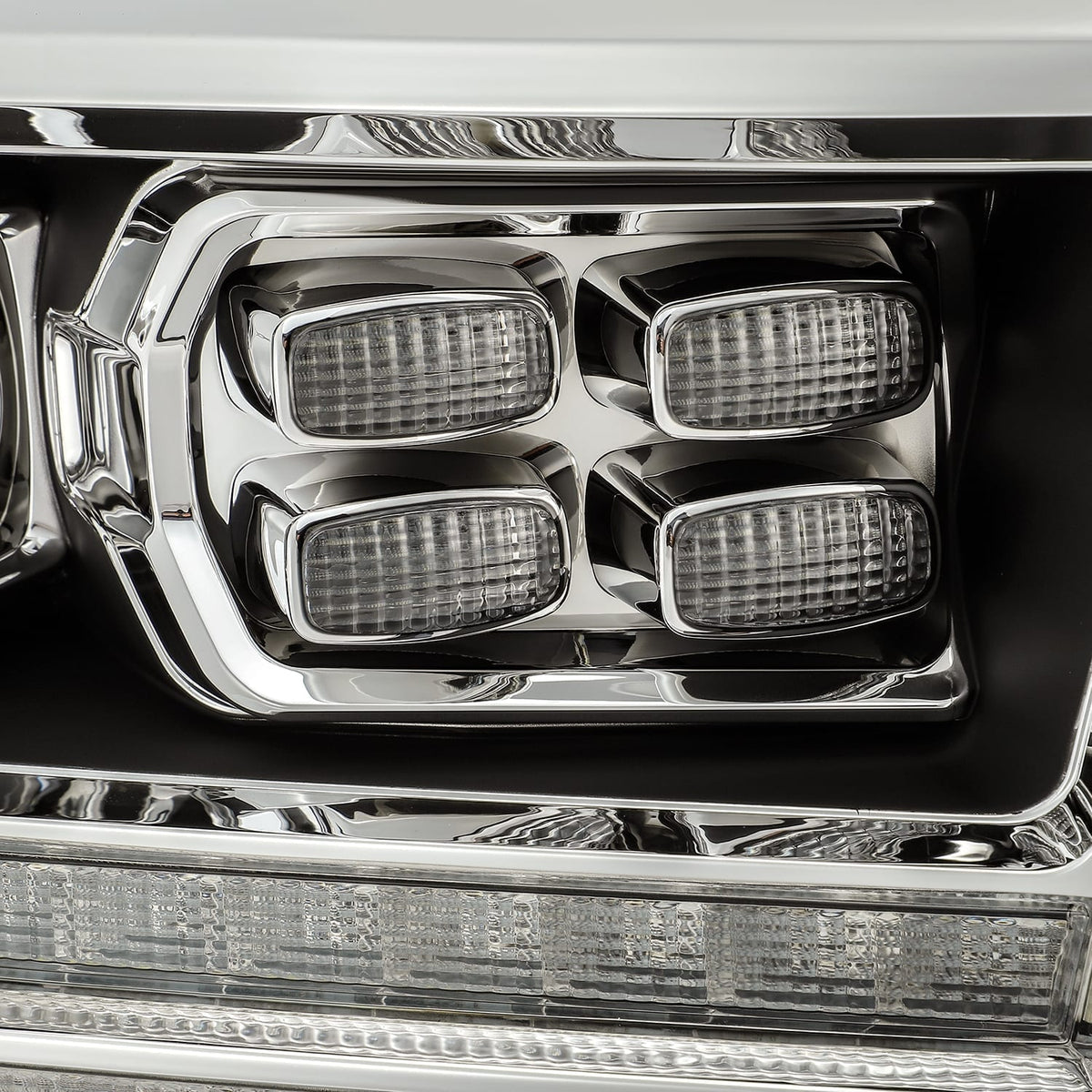

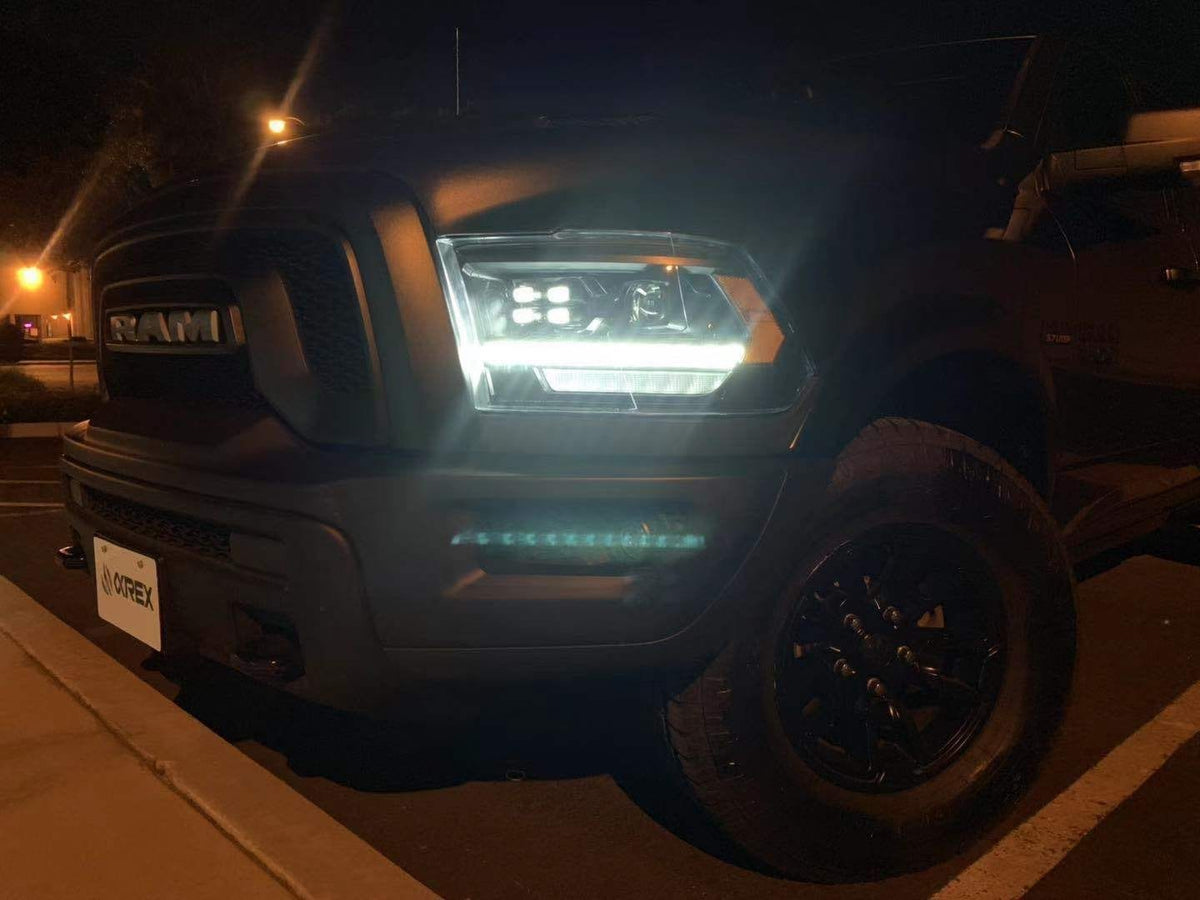

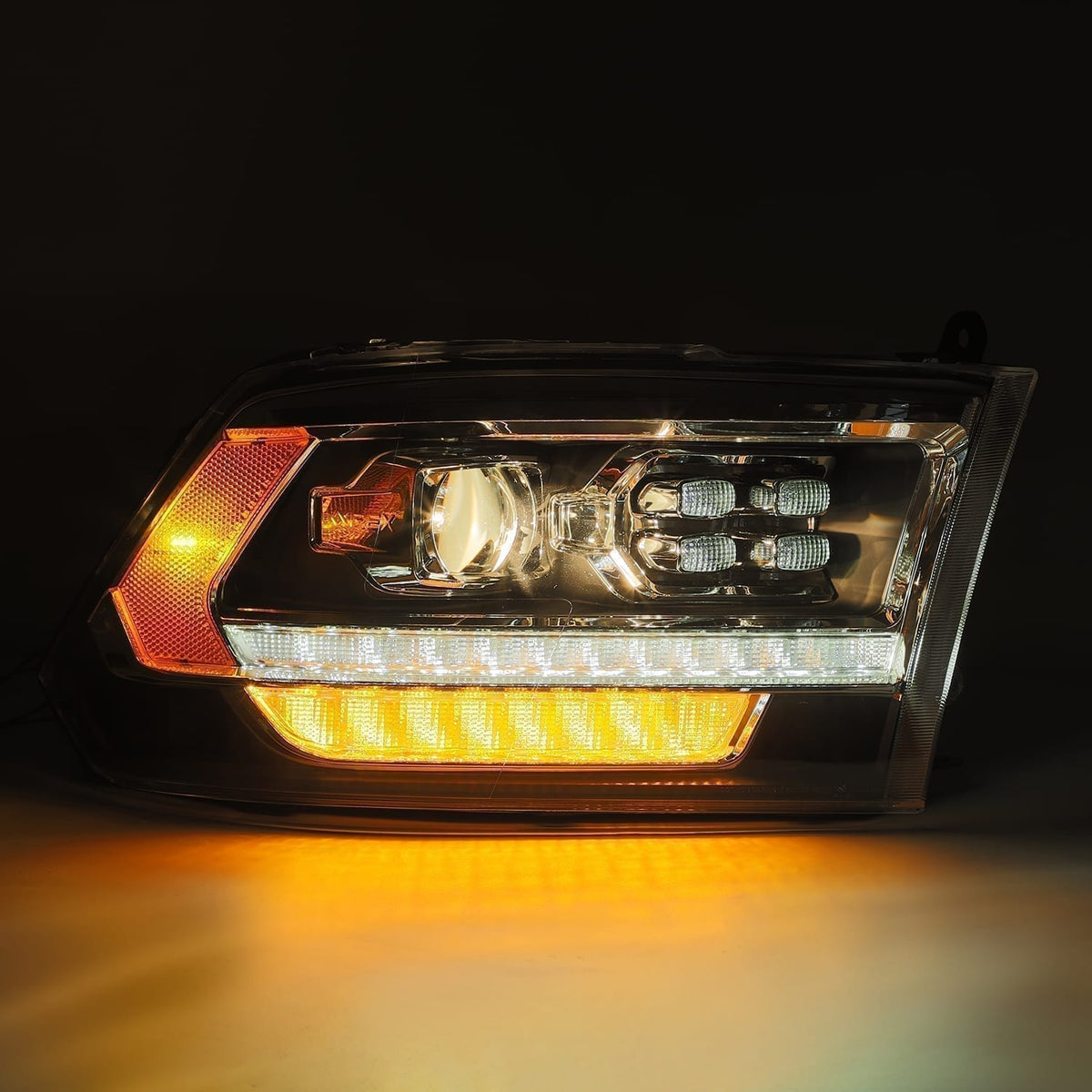

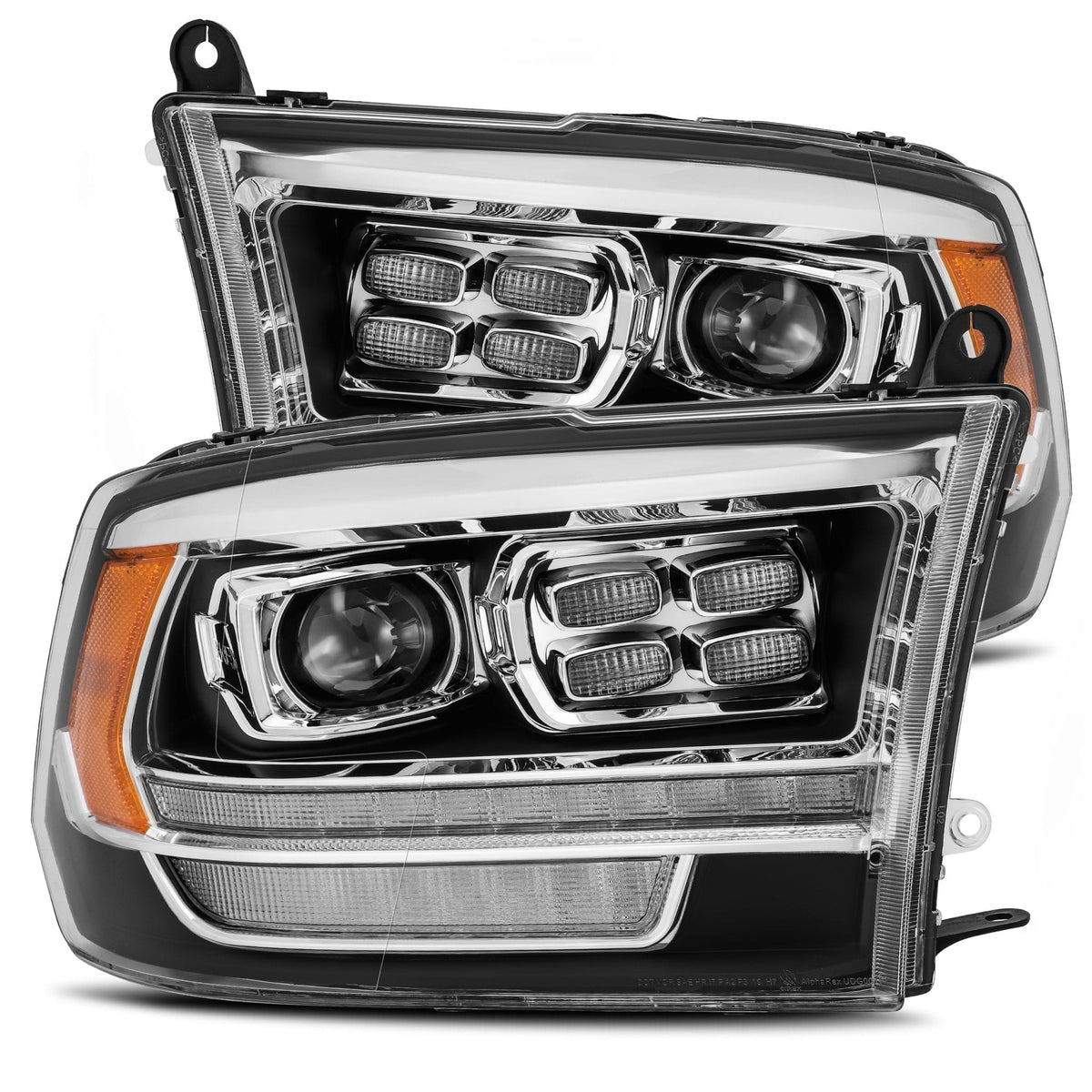

In the creation of the 4th gen Ram Truck PRO-Series projector headlights, we've drawn inspiration from the design of the 5th generation Ram 2500 trucks and adapted it for the 4th generation Ram. These headlights boast a sophisticated setup, featuring white DRLs located at the top with four LED lenses positioned next to the projector, as well as additional DRL functionality provided by the LED tube situated below the projector. The bottom LED tube serves as the platform for the amber sequential turn signal light. Adding to their allure, these 4th gen Ram Truck PRO-Series projector headlights also come equipped with an activation light feature, illuminating in a distinctive sequence when you unlock your 4th gen Ram. Moreover, the projectors embedded within these headlights are engineered for both high and low beam functionality, utilizing H7 halogen bulbs with a mechanism enabling seamless switching between low and high beam modes.
Components and Specifications
| Manufacturer SKU | 880523 |
|---|---|
| Manufacturer MPN | AHL-DR09-P-G4-SA-B |
| SKU | 880523 880523 / 810003 |
| MPN | AHL-DR09-P-G4-SA-B AHL-DR09-P-G4-SA-B / AXHL-DR13-PP2HD-CVT-2PC |
| UPC | 810015612040 810015612040 / 810015611449 |
| Fitment | 09-18 Ram 1500 10-18 Ram 2500 10-18 Ram 3500 10-18 Ram 4500 10-18 Ram 5500 19-24 Ram 1500 Classic ** If you have 13-18 Ram with stock projector headlights, you will need our converters for installation |
| Weight | 23 lb |
| Length | 24 in |
| Height | 13 in |
| Width | 26 in |
| Low Beam | Dual Beam Projector using H7 Halogen Bulbs |
| High Beam | Dual Beam Projector using H7 Halogen Bulbs |
| Lens Material | Polycarbonate (PC) |
| Lens Color | Clear Lens |
| Housing Material | Polypropylene (PP) |
| Housing Color | Black |
Installation
Check vehicle compatibility, factory headlight type, and the selected converter or harness option before ordering. Follow the manufacturer instructions for installation and headlight aiming.
