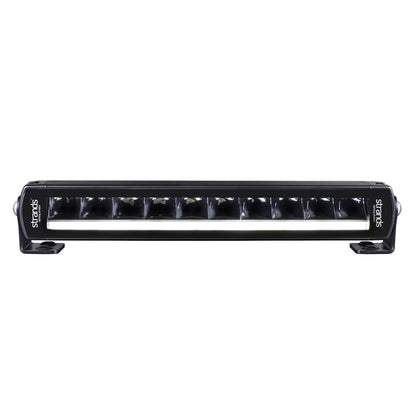

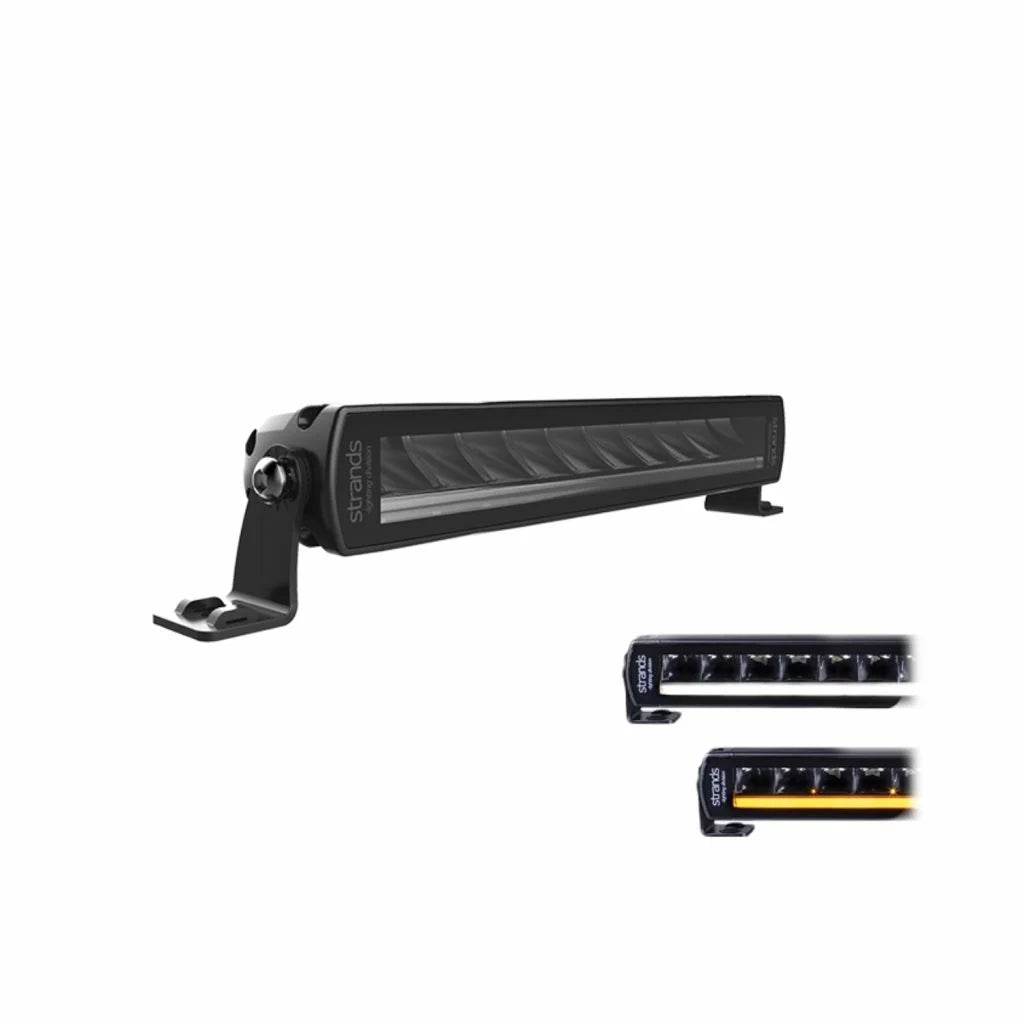

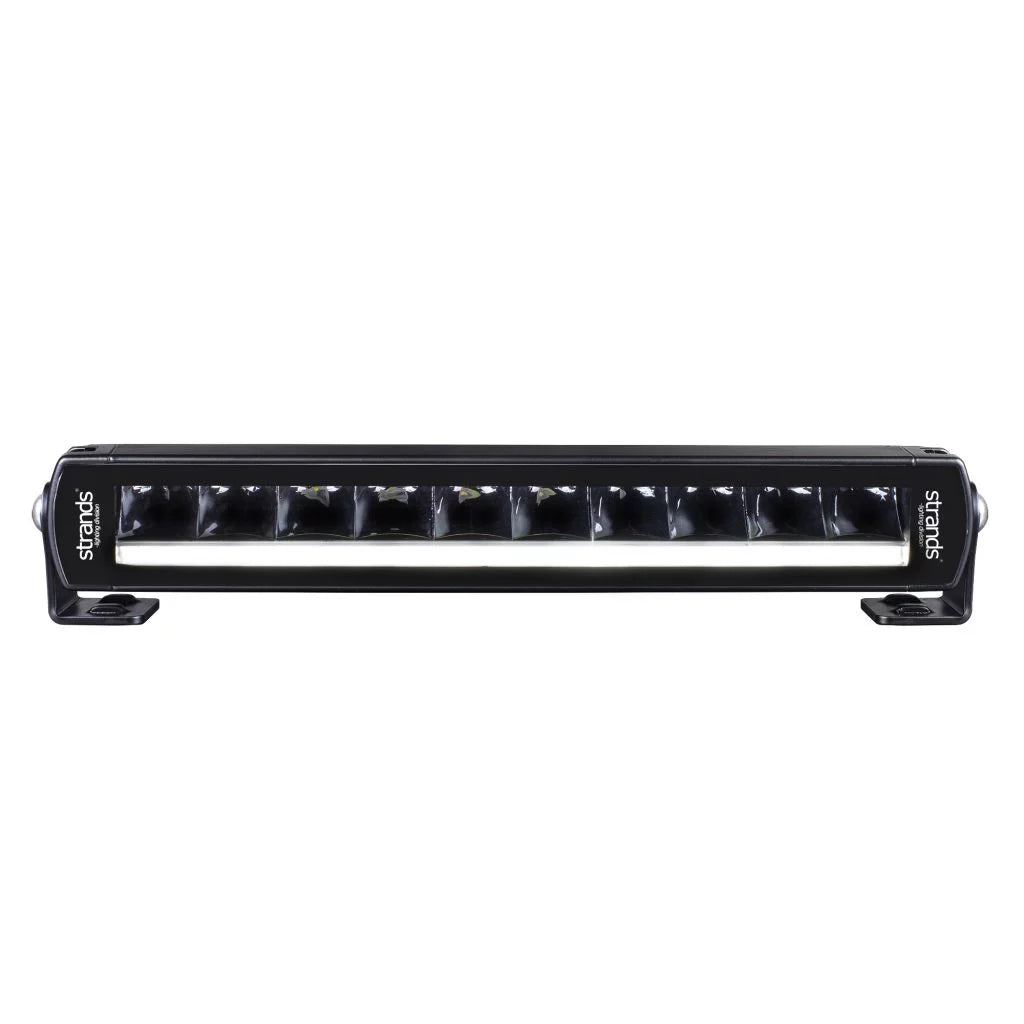

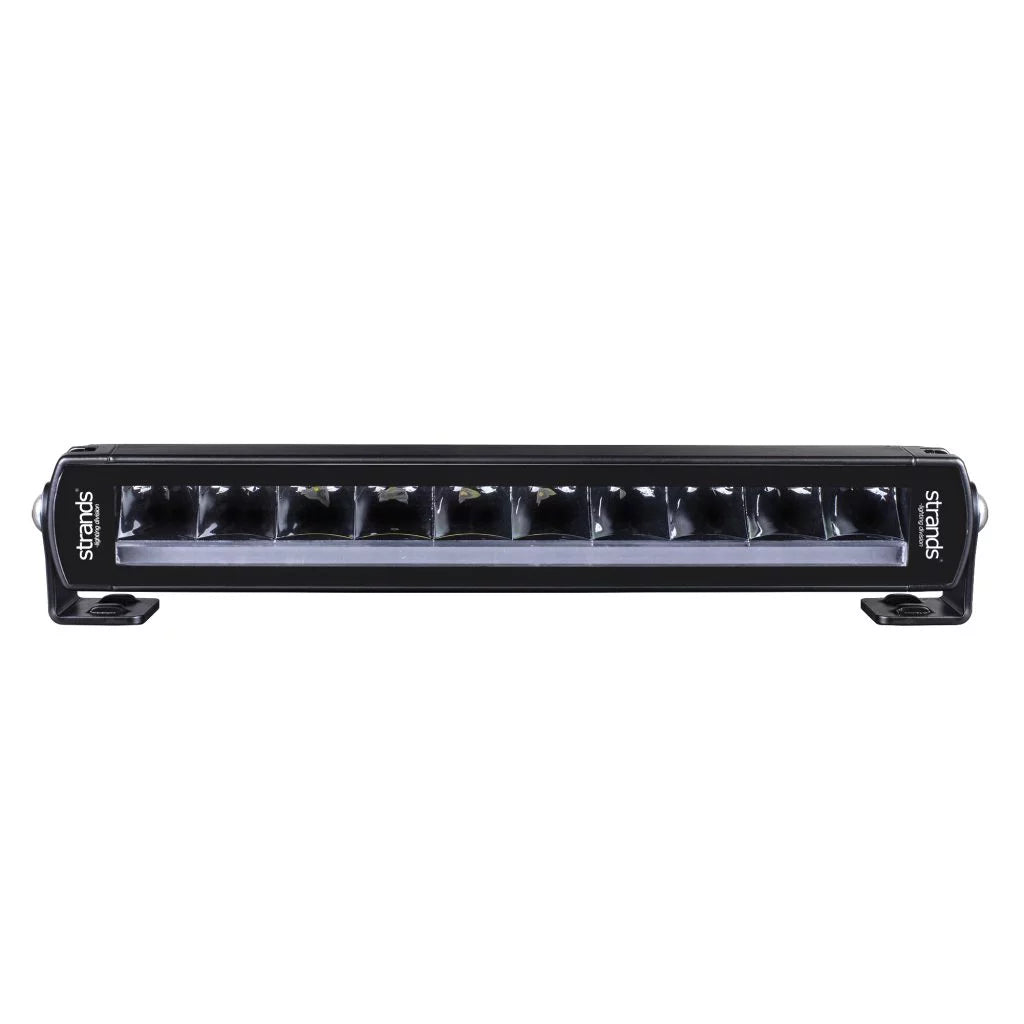

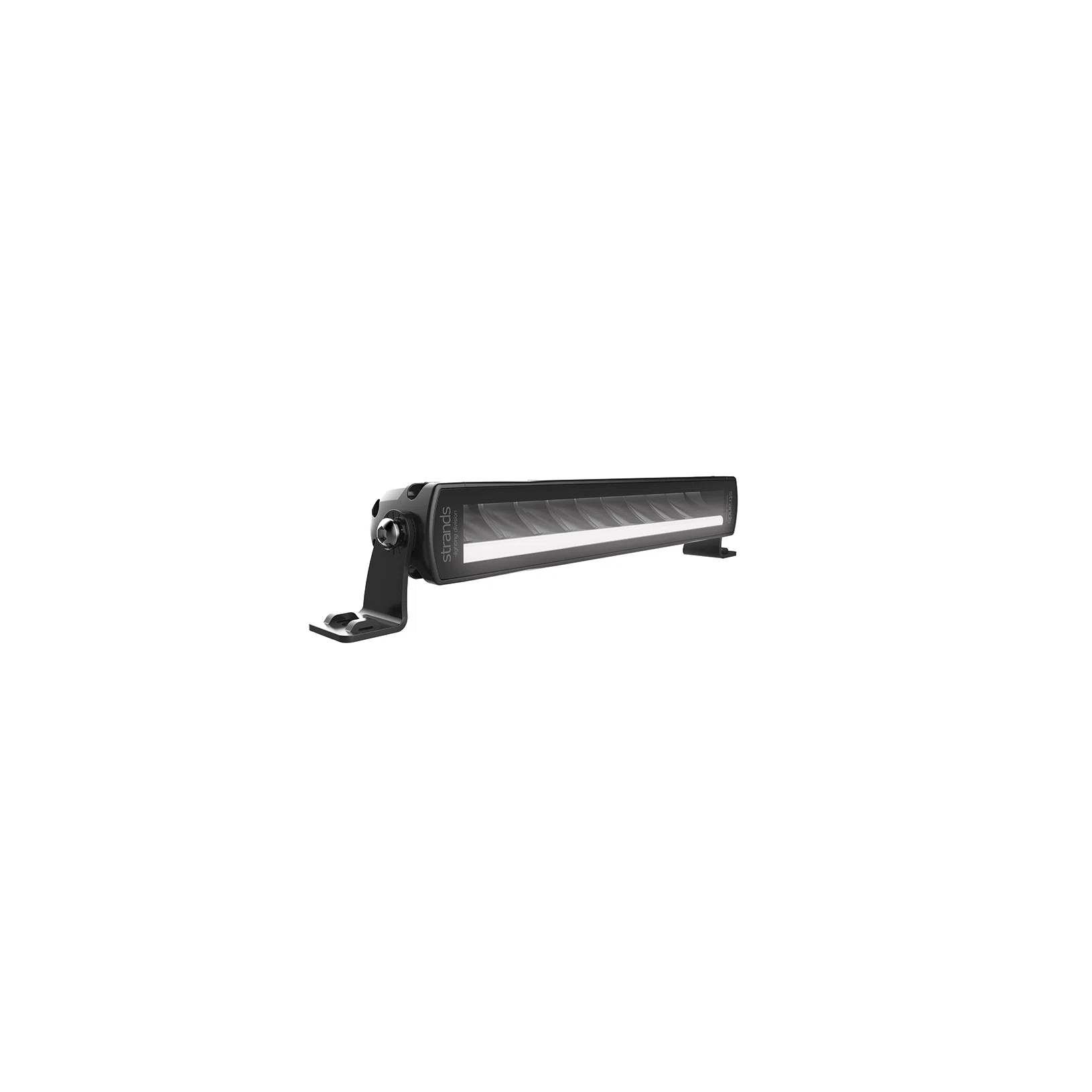

STRANDS 12″ SIBERIA E-MARKED SINGLE ROW
809170
Type: LED Lights
Brand: Strands
Description:
- Type of lamp LED
- Type of LED Osram
- PCS LED´s 10
- Voltage (V DC) 10-40V DC
- Consumption (w) 12V 32
- Consumption (w) 24V 32
-
Consumption specific function (w) 12V White position light: 3
Amber position light: 7 -
Consumption specific function (w) 24V White position light: 3
Amber position light: 7 - Theoretical lumen 4000
- Actual lumen 2200
- 1 LUX @ m 368
- Kelvin 6000
- IP-class 67/69K
- Colour housing Black
- Colour lens Clear
- Colour LED´s White

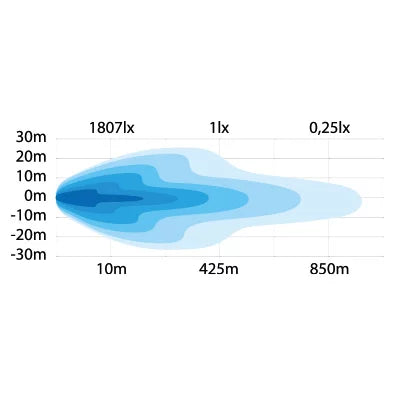

- Beam pattern Combo

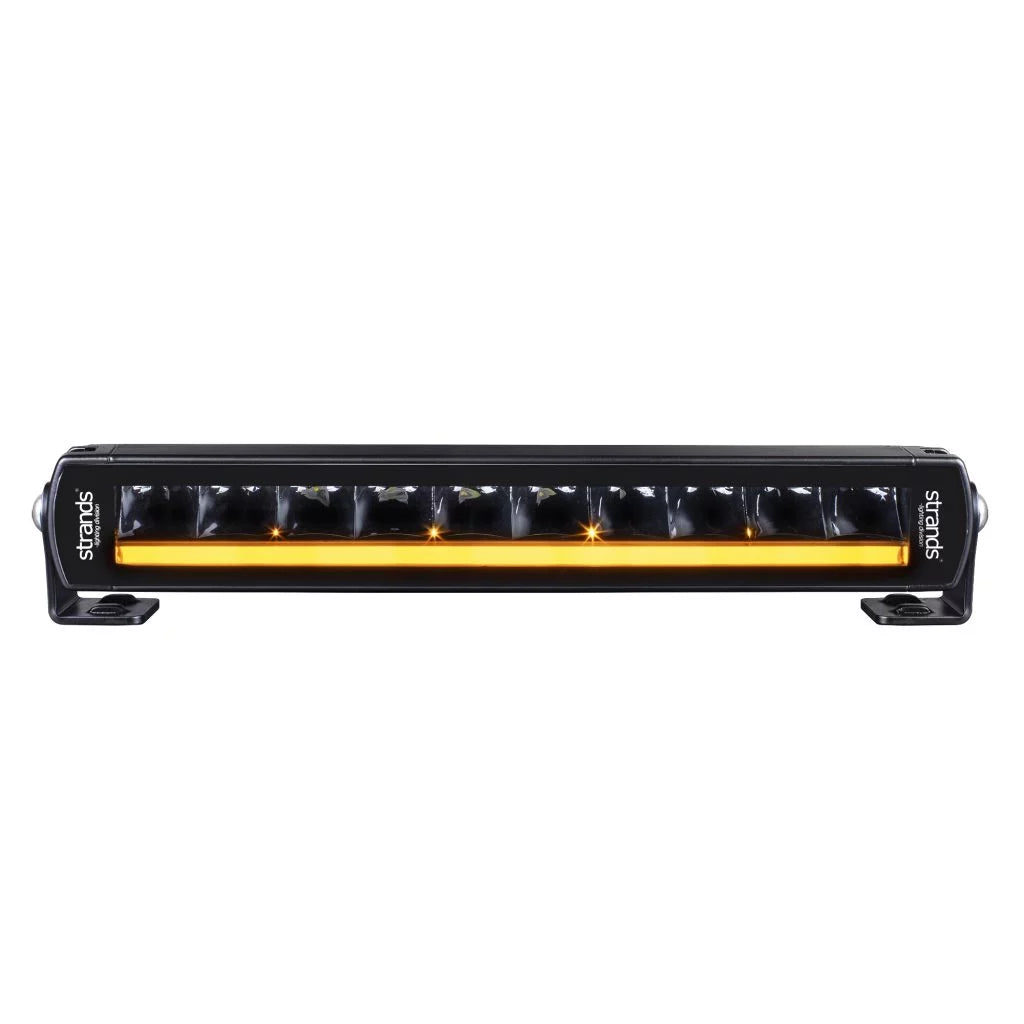

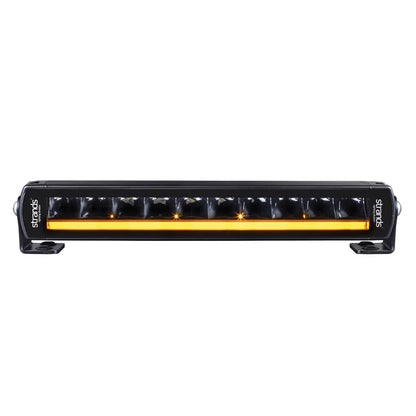

- Position light Yes. white and amber
- Connection DT-4
- Cable length (mm) 500
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 300.6
- Depth (mm) 55.5
- Height (mm) 45
- Height including bracket (mm) 65
- Operating temperature -20°C – +45°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R112
- Reference number 30
- EMC ECE R10
- 3 Year Function Warranty
Wiring Harness Options:
One Light – 72999 Harness + 1 x 270438 Adapter
Two Lights – 73240 Harness + 2 x 270438 Adapter
