Description:

• Type of lamp: LED
• Type of LED: LP
• PCS LED´s Main beam: 12
• Position light: 5
• Voltage (V DC): 9-36V DC
• Theoretical effect (w): 12V 120
• Theoretical effect (w): 24V 120
• Consumption (w) 12V:  Main beam: 98  Position light: 2
• Consumption (w) 24V:  Main beam: 91  Position light: 2
• Consumption specific function (w): 12V Main beam: 98  Position light: 2
• Consumption specific function (w): 24V Main beam: 91  Position light: 2
• Theoretical lumen: 12000
• Actual lumen:  9800

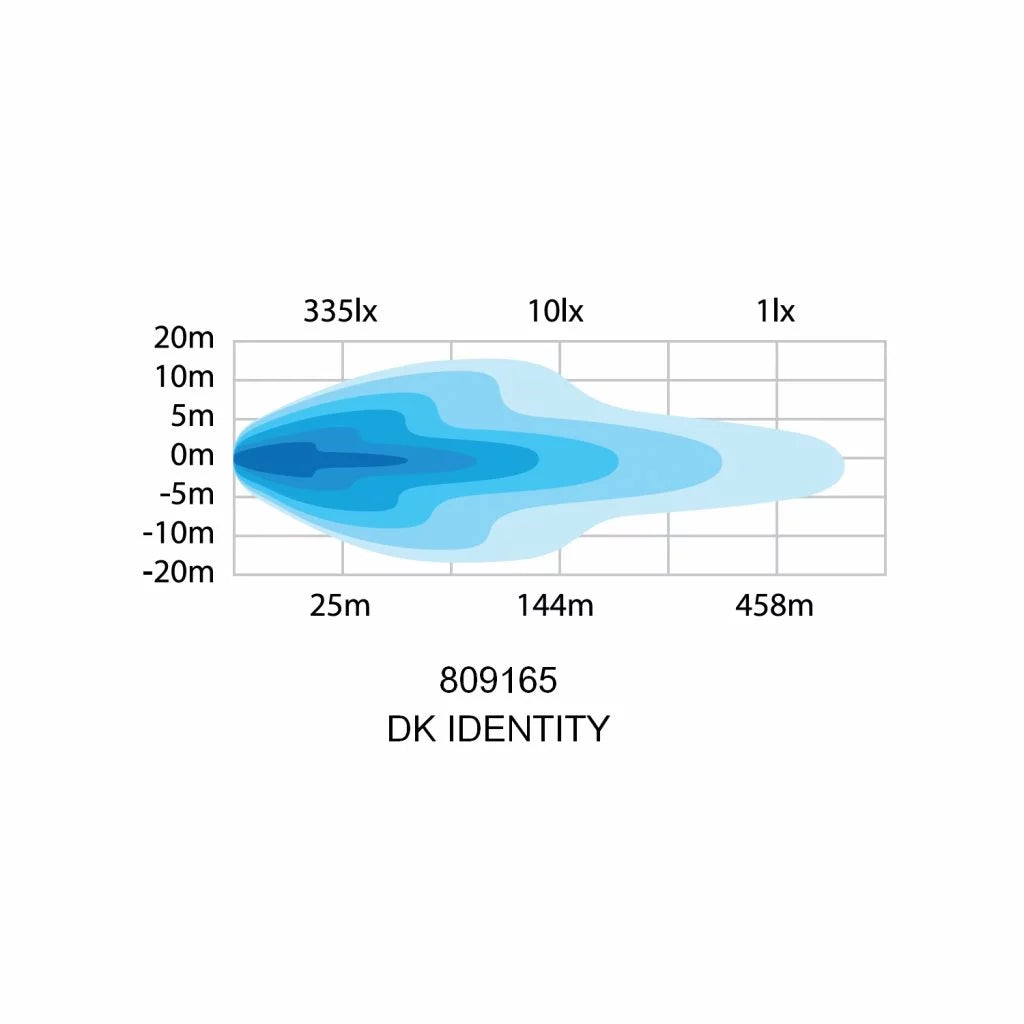

• 1 LUX @ m:  458
• Kelvin: 6000
• IP-class: 68/69K
• Colour housing:  Black
• Colour lens: Clear
• Colour LED´s: White and Amber
• Beam pattern:  Combo
• Position light:  YES (White and Amber)

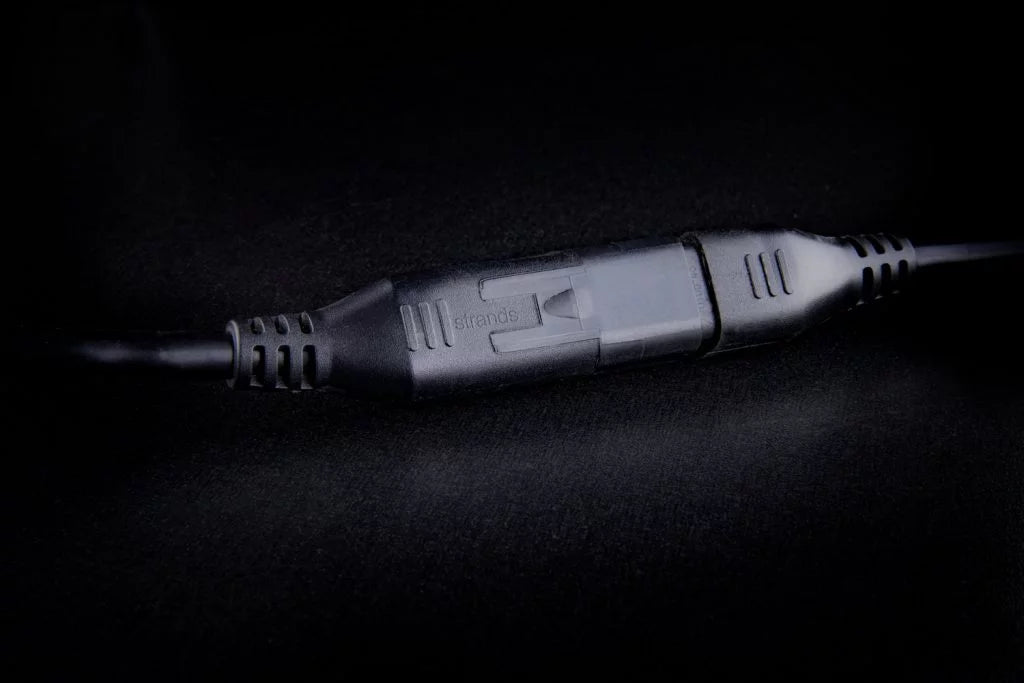

• Connection: DT4
• Cable length (mm): 500

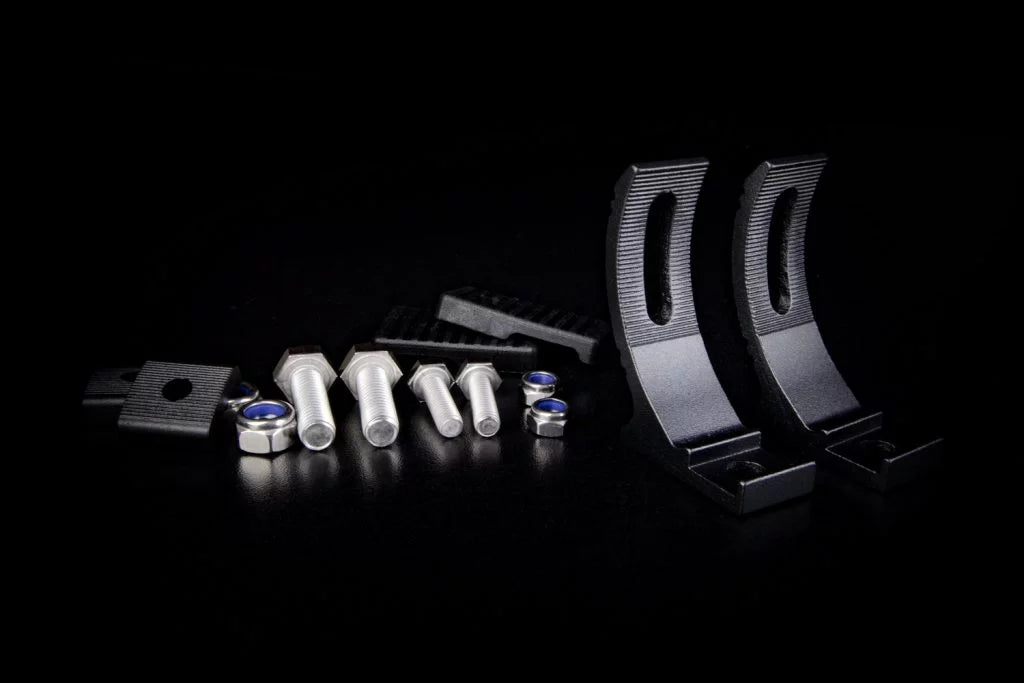

• Material bracket Side bracket: Stainless steel (SUS 304)
• Bottom bracket: Aluminum (AL6063)
• Material housing/chassis: Aluminum
• Material lens: Polycarbonate
• Length (mm): 520
• Depth (mm): 55.5
• Height (mm): 58
• Height including bracket (mm): 75
• Operating temperature: -40 – +60°C
• ADR-approved: No
• E-approved: Yes
• According to regulation: ECE R112 R7  Reference number 50  EMC ECE R10
