Description:

• Type of lamp: LED
• Voltage: 9-35V DC
• Wattage: 54W
• Theoretical lumen: 7560lm
• Actual lumen: 2467lm
• 1 LUX @: 414m
• IP-class: IP67/69K
• Colour housing: Black
• Colour lens: Clear

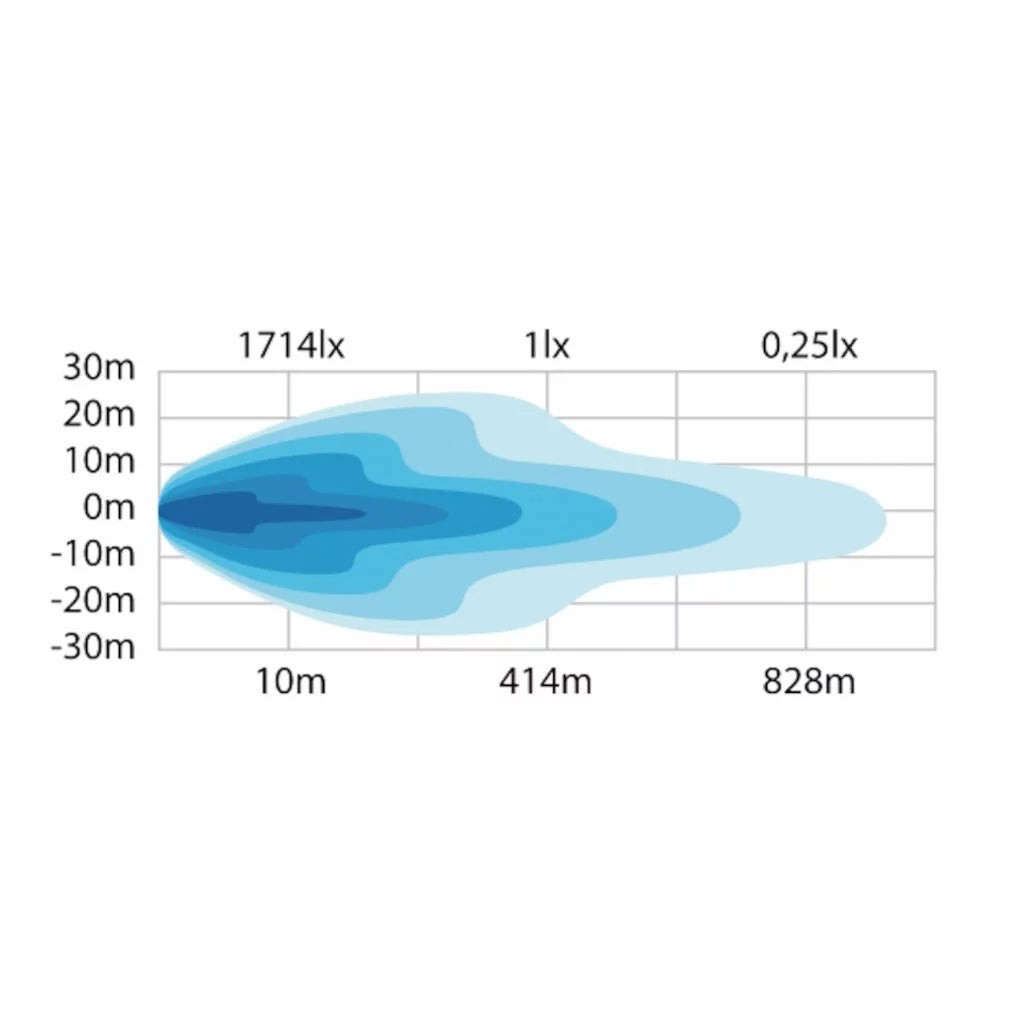

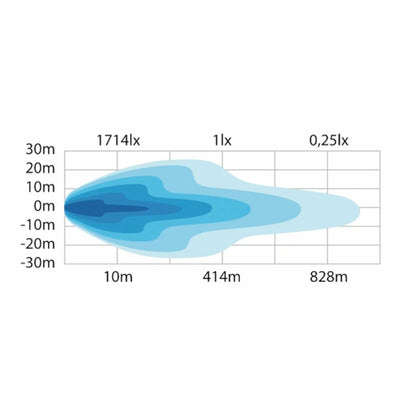

• Beam pattern: Combo
• Position light: White & Amber
• Connection: Pigtail (No connector)
• Cable length: 2500 mm
• Material bracket: Stainless steel
• Material housing/chassis: Aluminium
• Material lens: Polycarbonate
• Length: 504.6 mm
• Depth: 55.5 mm
• Height: 45 mm
• Height including bracket: 65 mm
• Operating temperature :-20°C – +45°C
• E-approved:  ECE R112, R7, R65
• EMC: ECE R10
• 3 Year Function Warranty

**Hardwire installation required**

Black wire: Ground
Red wire: Main Beam
Yellow wire: Amber Position light
Grey wire: White Position light
Green wire: Amber Strobe
