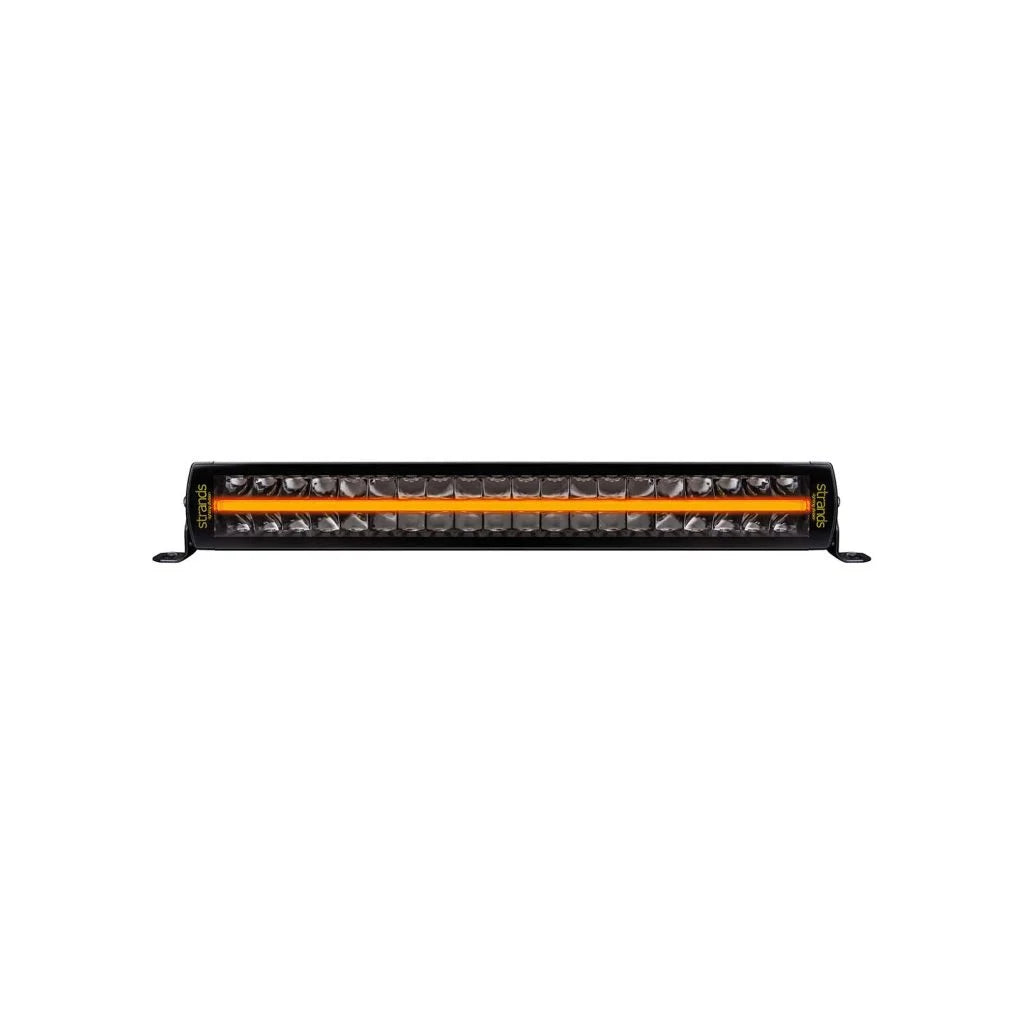

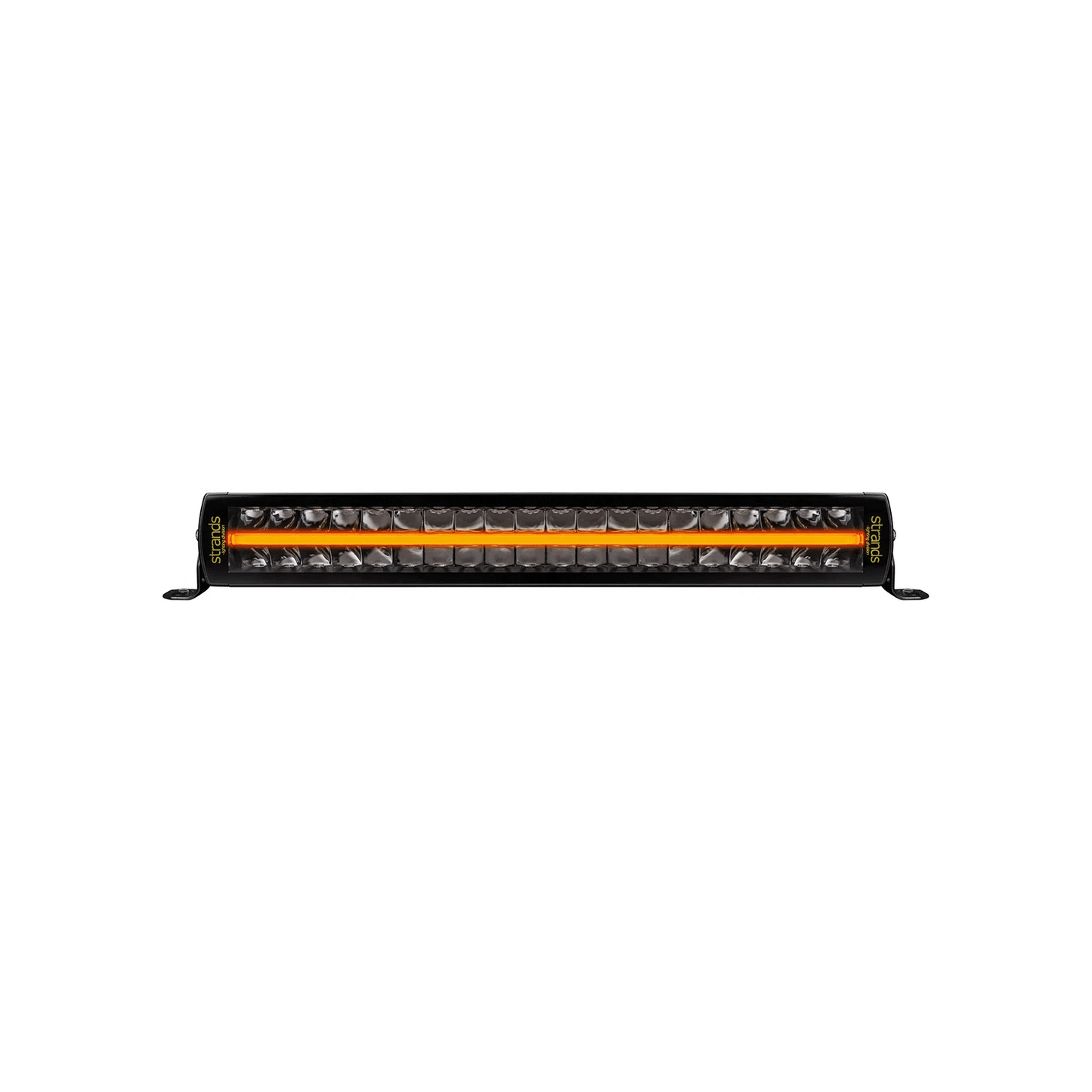

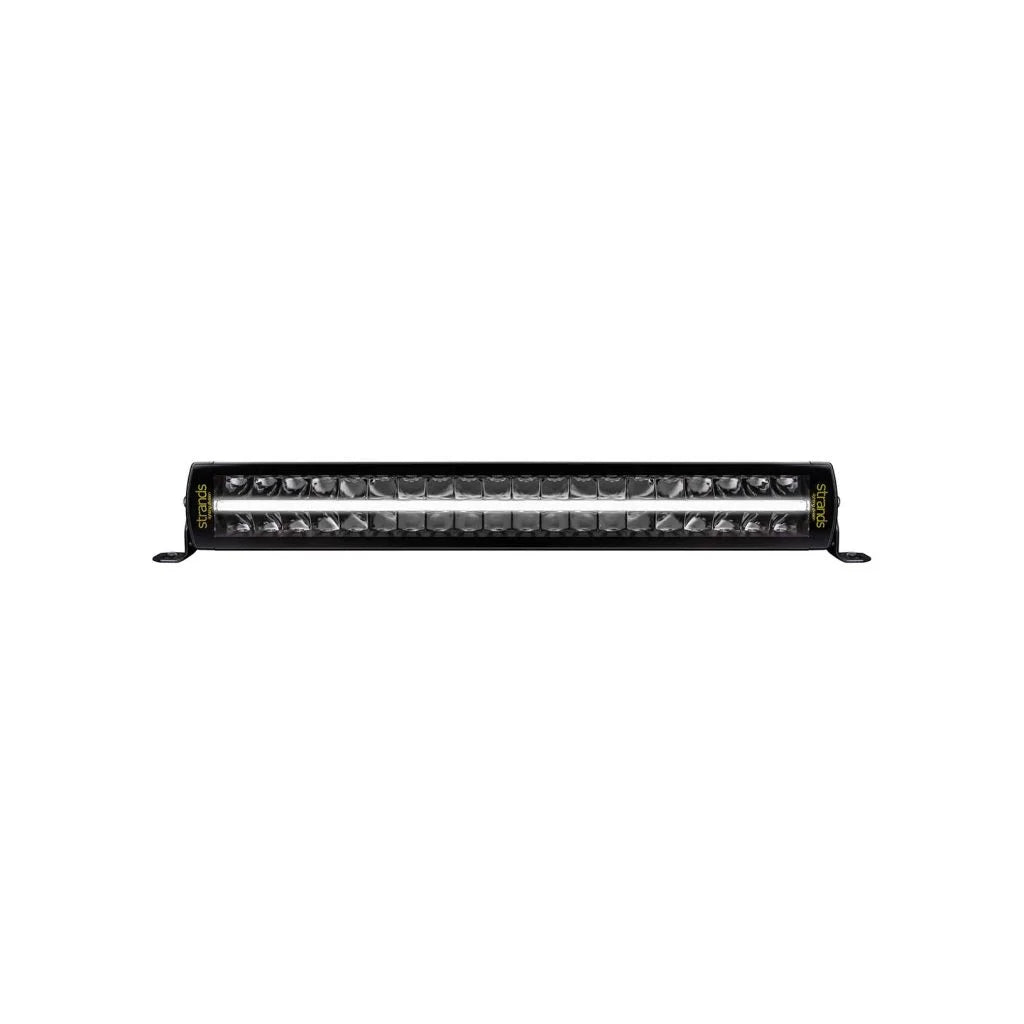

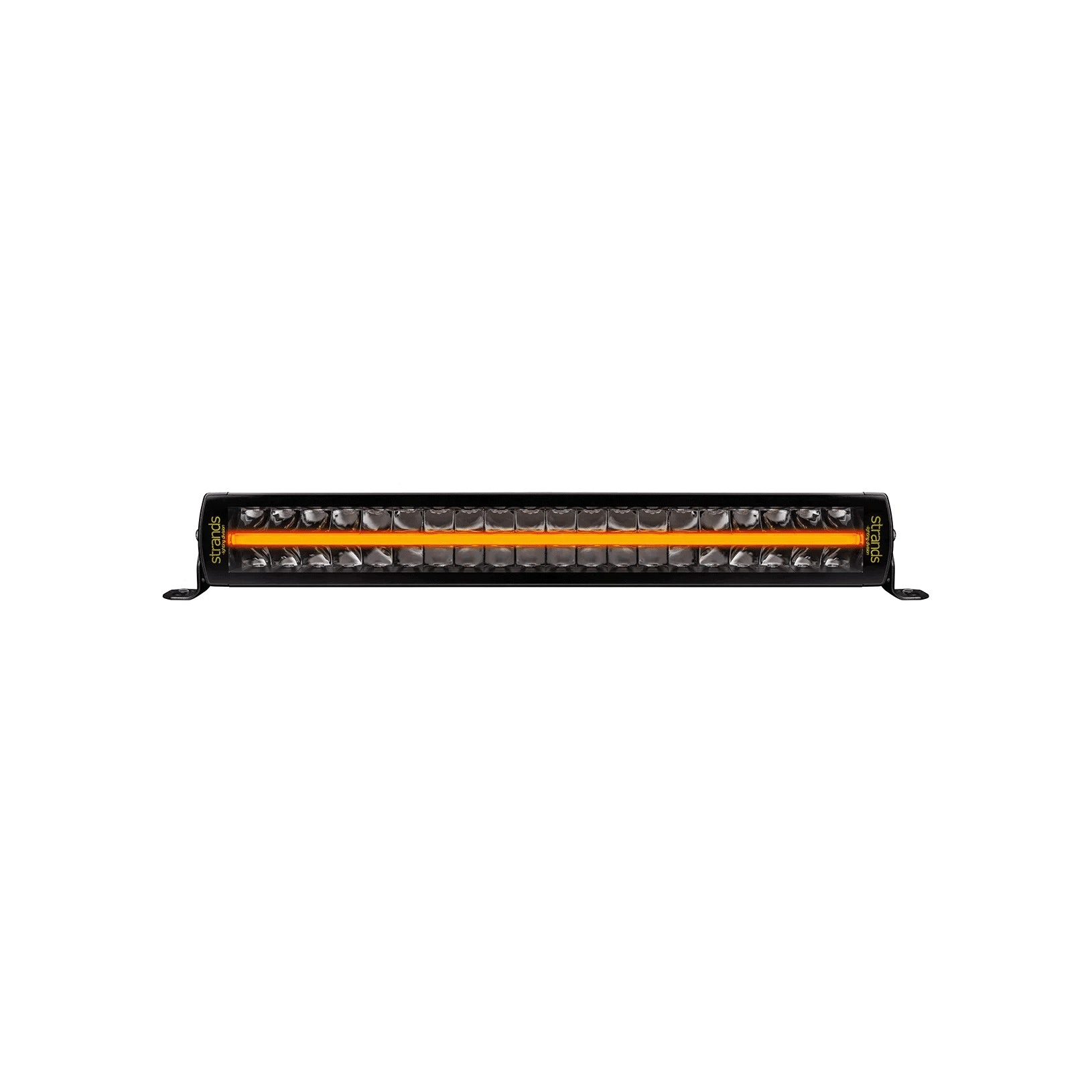

STRANDS 22″ SIBERIA OUTLAW DOUBLE ROW

• Type of lamp LED
• PCS LED´s 40
• Voltage (V DC) 10-30V DC
• Theoretical effect (w) 12V 400
• Theoretical effect (w) 24V 400
• Consumption (w) 12V 269.6
• Consumption (w) 24V 256.6
• Consumption specific function (w) 12V White position light: 5.5
  Amber position light: 14.5
• Consumption specific function (w) 24V White position light: 5.5
  Amber position light: 14.5
• Theoretical lumen 29600
• Actual lumen 13007

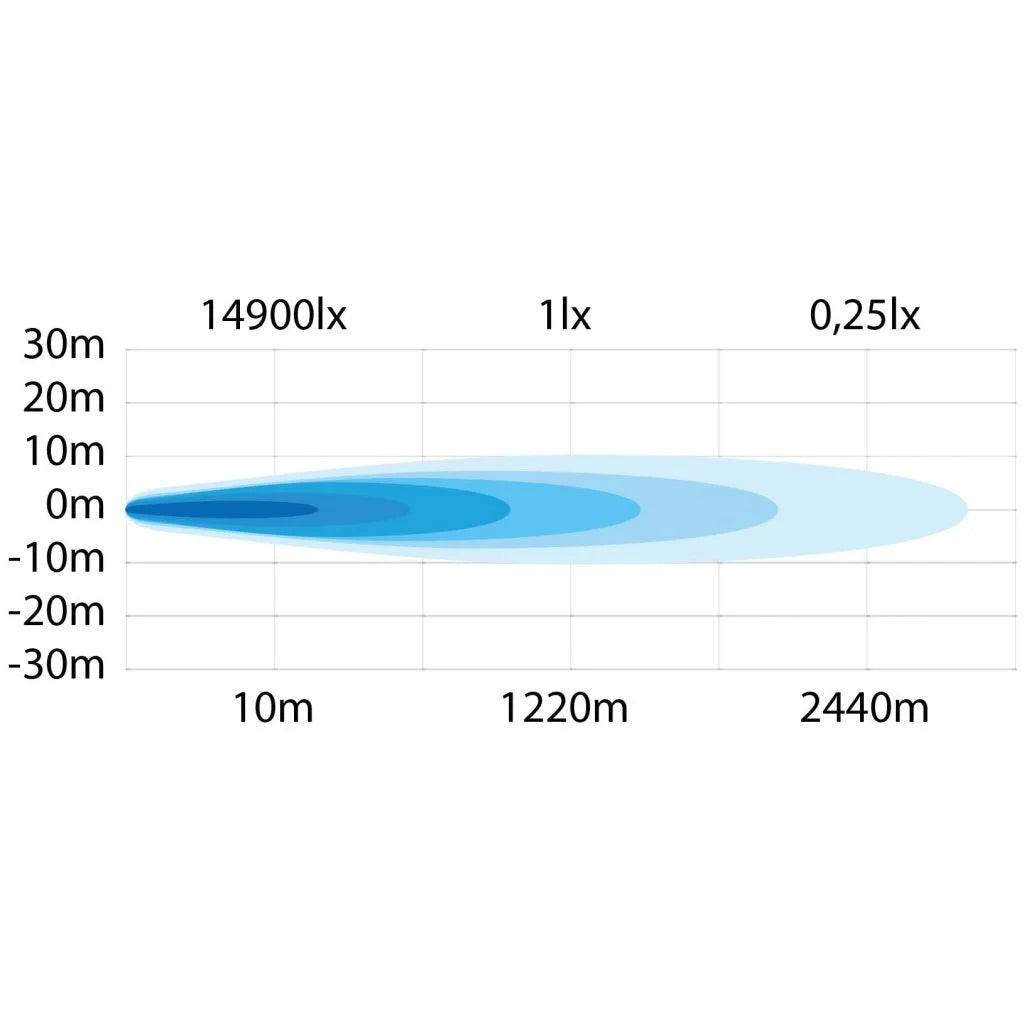

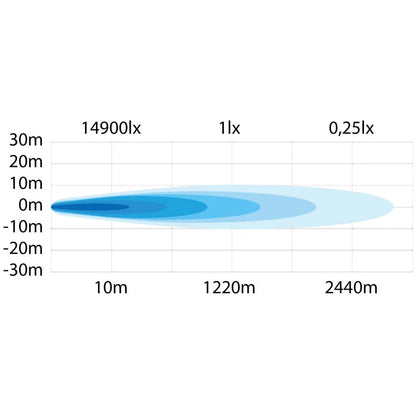

• 1 LUX @ m 1220
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White and amber
• Beam pattern Spot
• Position light Yes white and amber
• Connection Pigtail (no connector)
• Cable length (mm) 2500

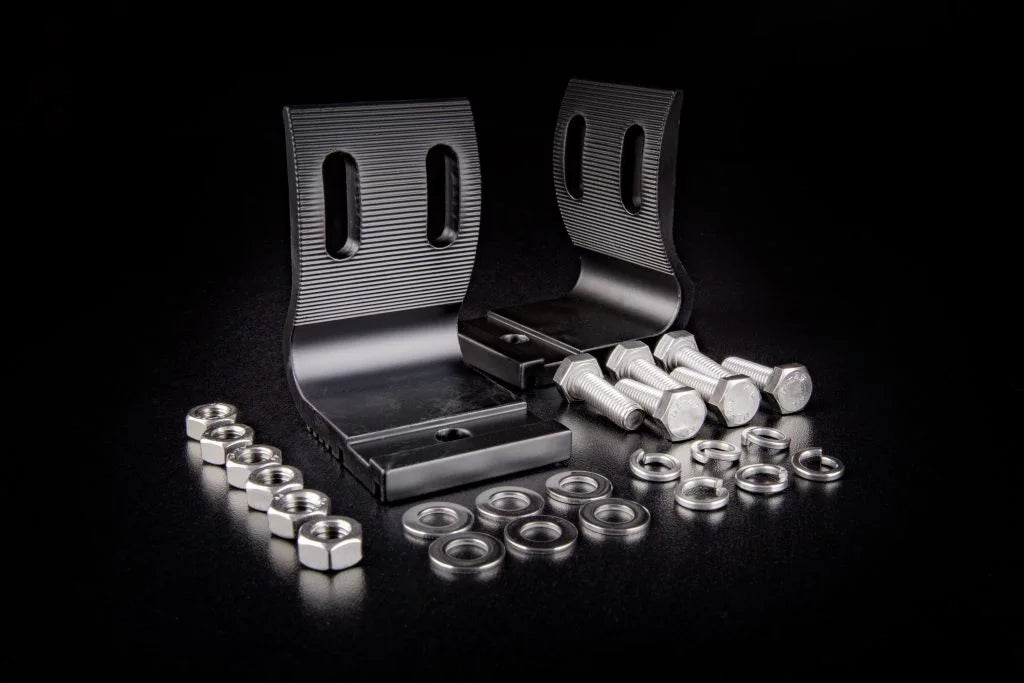

• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 562
• Depth (mm) 71.5
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  No
• EMC ECE R10
• 3 Year Functional Warranty

**Hardwire installation required**
