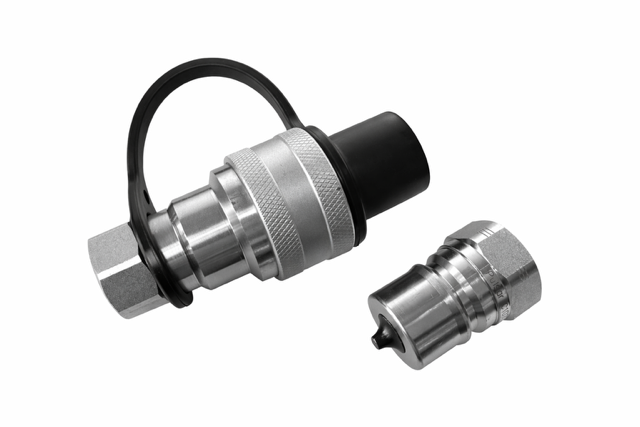

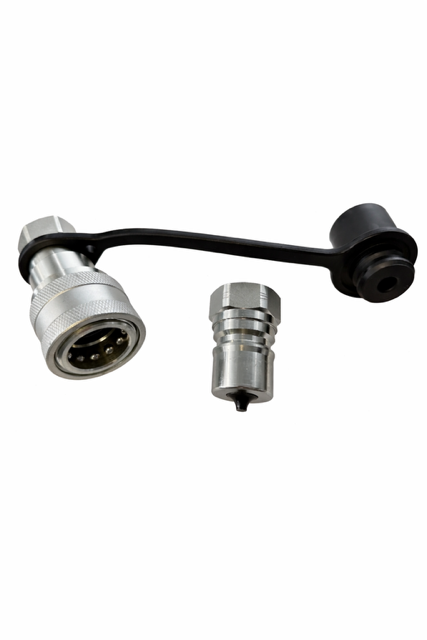

3/4" Fuel Hose Quick Disconnect
3/4" Fuel Hose Quick Disconnect
SKU:LHQUICKDISCONNECT
IN STOCK ONLINE & IN STORE
Couldn't load pickup availability
1. Part Description:
C100 Industrial Interchange couplings are compliant with the ISO-7241-B standard and are perfectly suited to agricultural and industrial applications including mobile equipment and construction. Couplings machined from solid carbon steel come standard with buna-N (Nitrile) seals, while couplings machined from solid brass or Type 316 Stainless Steel bar stock come standard with Viton seals. These couplings allow for bidirectional flow, feature poppet style valves, and have Type 304 Stainless Steel balls, retaining rings, and springs to maximize service life. All carbon steel couplings are hardened and zinc-plated to provide heavy duty performance.
Specifications
| APPLICATION | Agriculture, Forestry, Industrial |
| BODY SIZE | 3/4" |
| FEMALE PIPE SIZE | 3/4" |
| FITTING CATEGORY | C100 Series ISO-B Hydraulic Couplings |
| FITTING TYPE | C100 Series Coupler |
| FLOW RATE | 28 USGPM |
| MATERIAL | Zinc-Plated Carbon Steel |
| THREAD DIMENSIONS | 3/4-14 |
| THREAD TYPE | Female Pipe (NPTF) |
| WEIGHT | 1.22 lb |
| WORKING PRESSURE | 4350 psi |
2. Part Description:
C100 Industrial Interchange couplings are compliant with the ISO-7241-B standard and are perfectly suited to agricultural and industrial applications including mobile equipment and construction. Couplings machined from solid carbon steel come standard with buna-N (Nitrile) seals, while couplings machined from solid brass or Type 316 Stainless Steel bar stock come standard with Viton seals. These couplings allow for bidirectional flow, feature poppet style valves, and have Type 304 Stainless Steel balls, retaining rings, and springs to maximize service life. All carbon steel couplings are hardened and zinc-plated to provide heavy duty performance.
Specifications
| APPLICATION | Agriculture, Forestry, Industrial |
| BODY SIZE | 3/4" |
| FEMALE PIPE SIZE | 3/4" |
| FITTING CATEGORY | C100 Series ISO-B Hydraulic Couplings |
| FITTING TYPE | C100 Series Nipple |
| FLOW RATE | 28 USGPM |
| MATERIAL | Zinc-Plated Carbon Steel |
| THREAD DIMENSIONS | 3/4-14 |
| THREAD TYPE | Female Pipe (NPTF) |
| WEIGHT | 0.44 lb |
| WORKING PRESSURE | 4350 psi |
3. Part Description:
- Interchangeable to ISO7241 Series 'B'
- Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
