Description:

• Type of lamp LED
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V High beam: 283.5
  White position light: 7.5
  Amber position light: 22
• Consumption (w) 24V High beam: 280
  White position light: 7.5
  Amber position light: 22
• Theoretical lumen 24000
• Actual lumen 12663

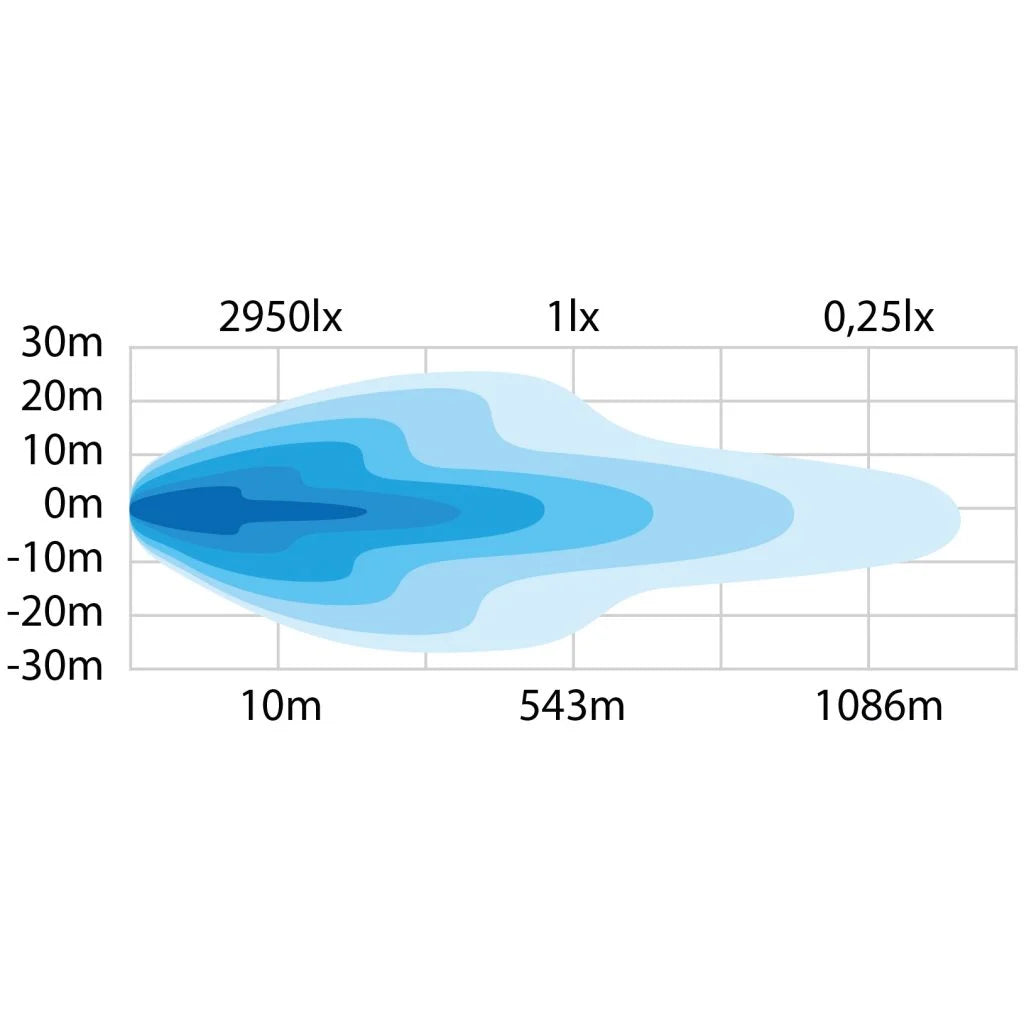

• 1 LUX @ m 543
• IP-class IP67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection Pigtail
• Cable length (mm) 2500

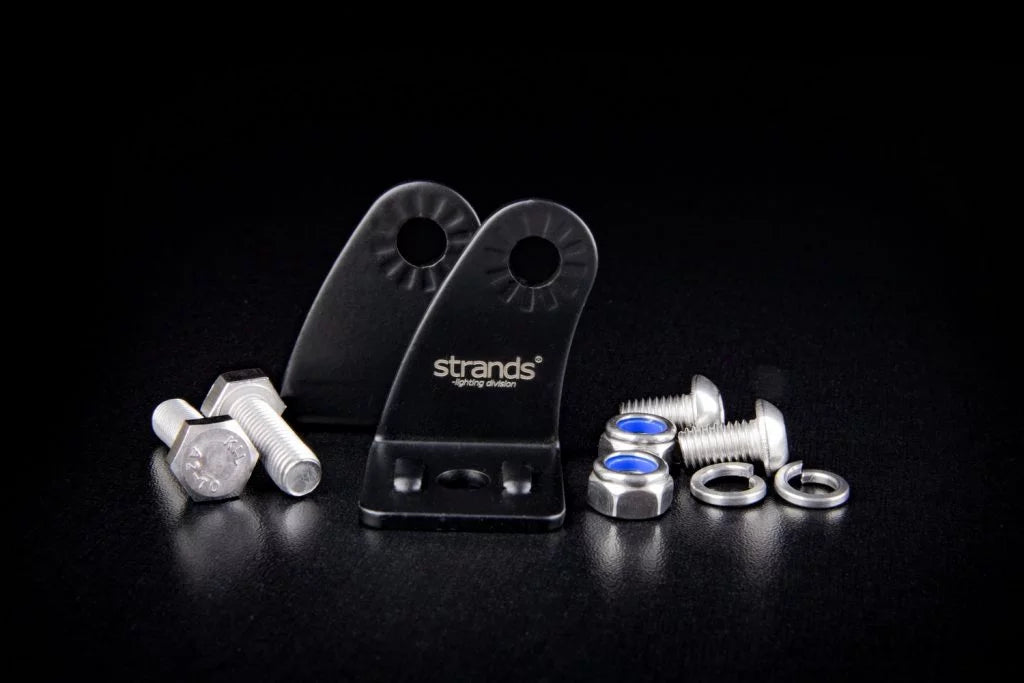

• Material bracket Stainless steel
• Material housing/chassis Aluminium
• Material lens Polycarbonate
• Length (mm) 823.16
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  N0
• According to regulation ECE R112. R7
• Reference number 37.5
• EMC ECE R10
• 3 Year Function Warranty

**Hardwire installation required**
