STRANDS 32″ SIBERIA CURVED SINGLE ROW
809193
Type: LED Lights
Brand: Strands
Description:
- Type of lamp LED
- Voltage (V DC) 10-40V DC
-
Consumption (w) 12V High beam: 144.7
White position light: 7.5
Amber position light: 21 -
Consumption (w) 24V High beam: 144.3
White position light: 7.5
Amber position light: 21 - Theoretical lumen 12000
- Actual lumen 8039
- 1 LUX @ m 520
- IP-class IP67/69K
- Colour housing Black
- Colour lens Clear
- Colour LED´s White

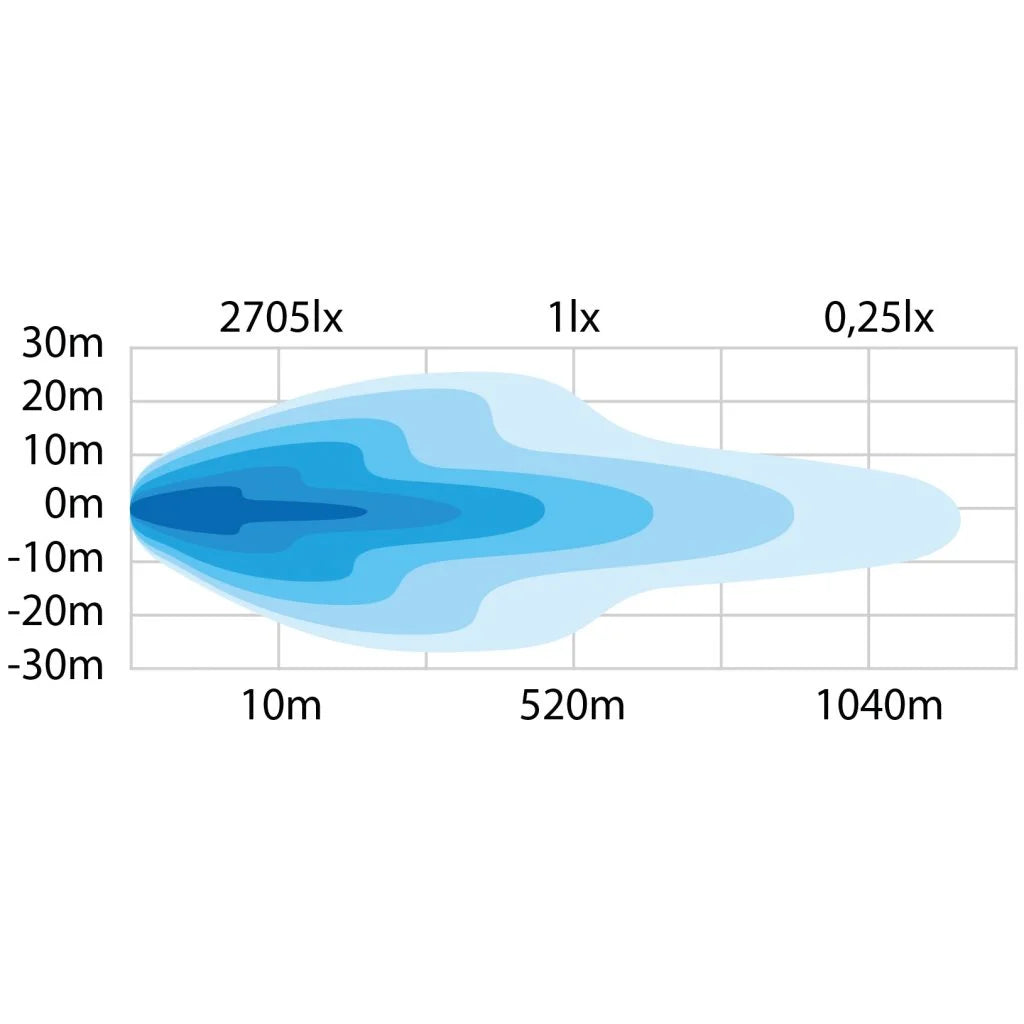

- Beam pattern Combo

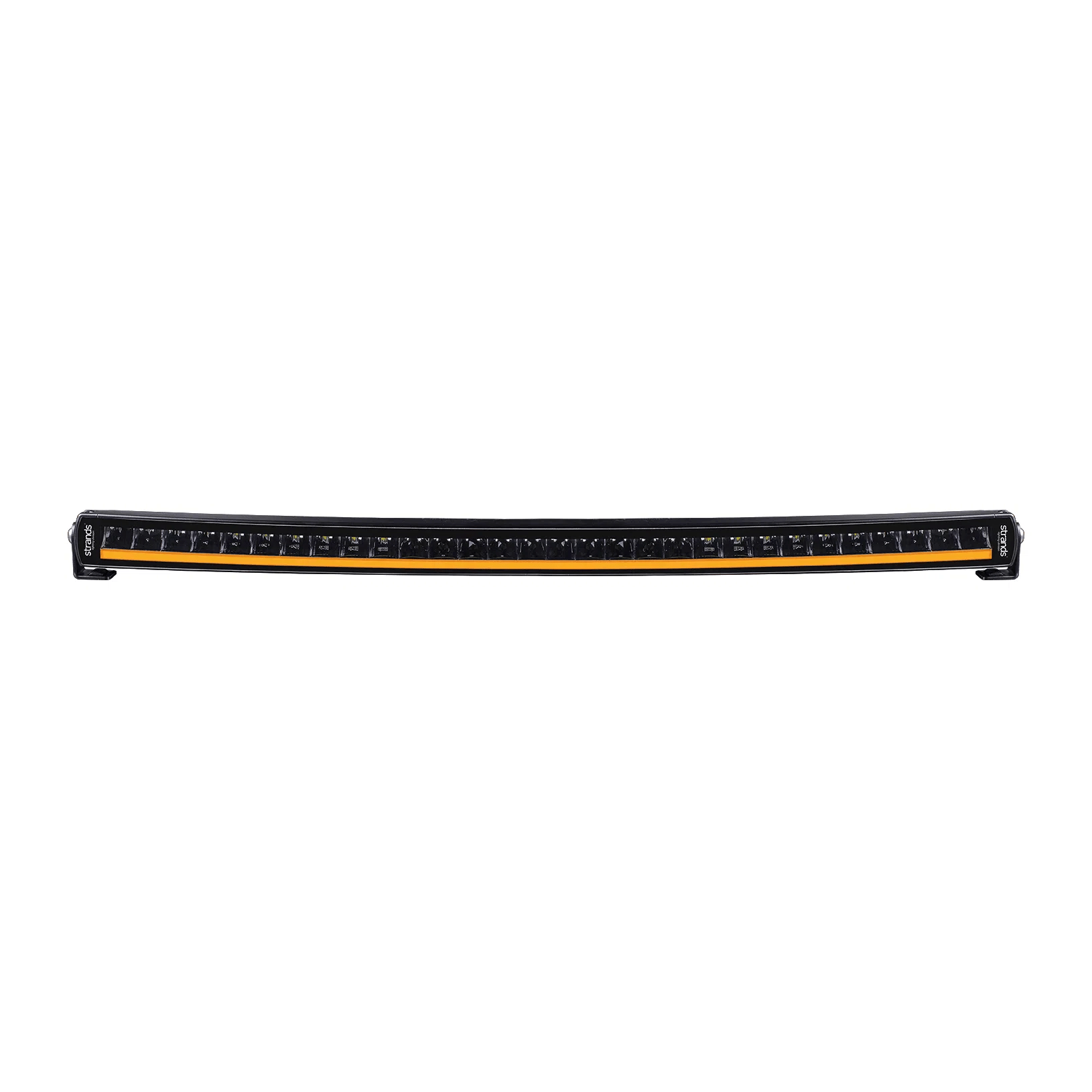

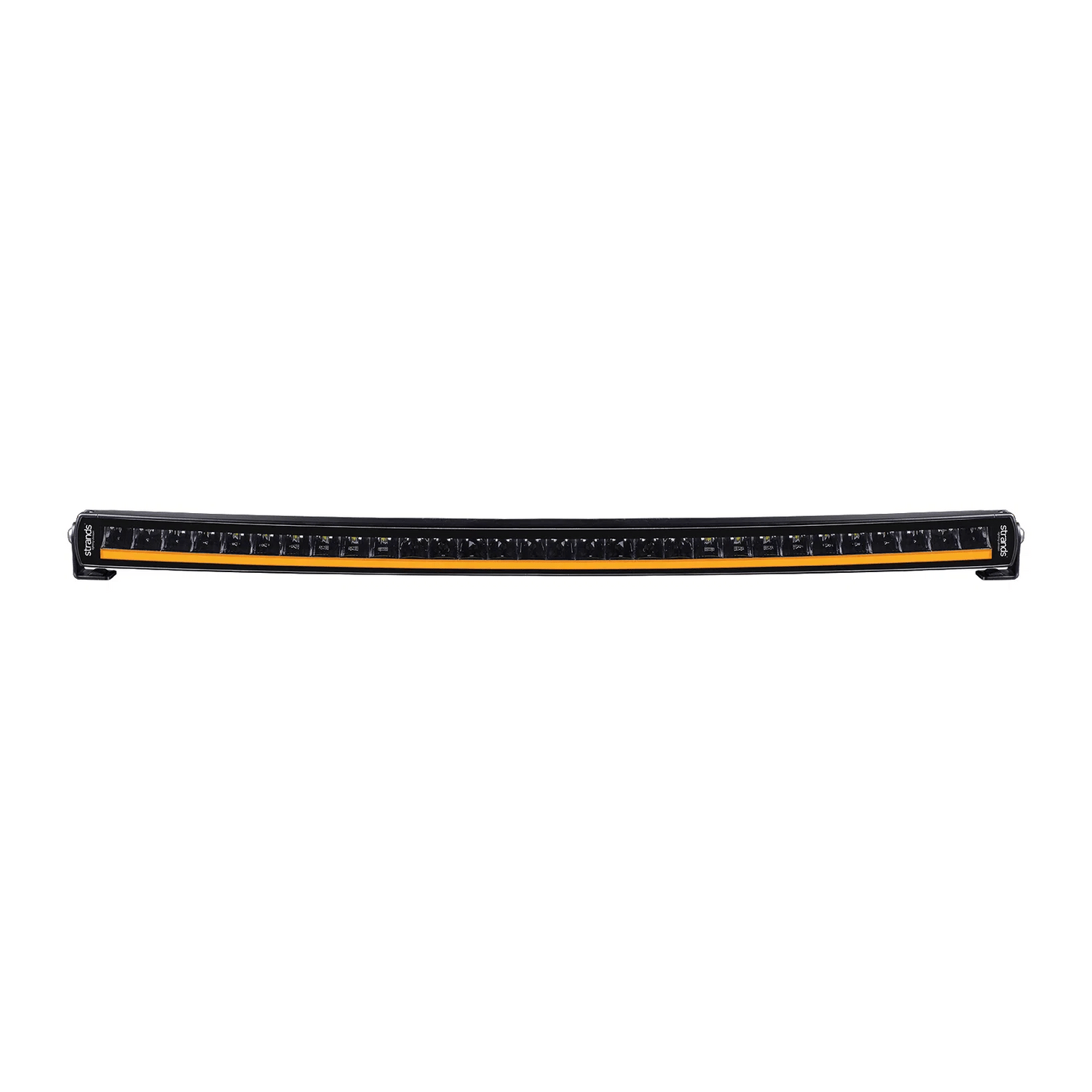

- Position light Yes. white and amber
- Connection DT-4
- Cable length (mm) 500

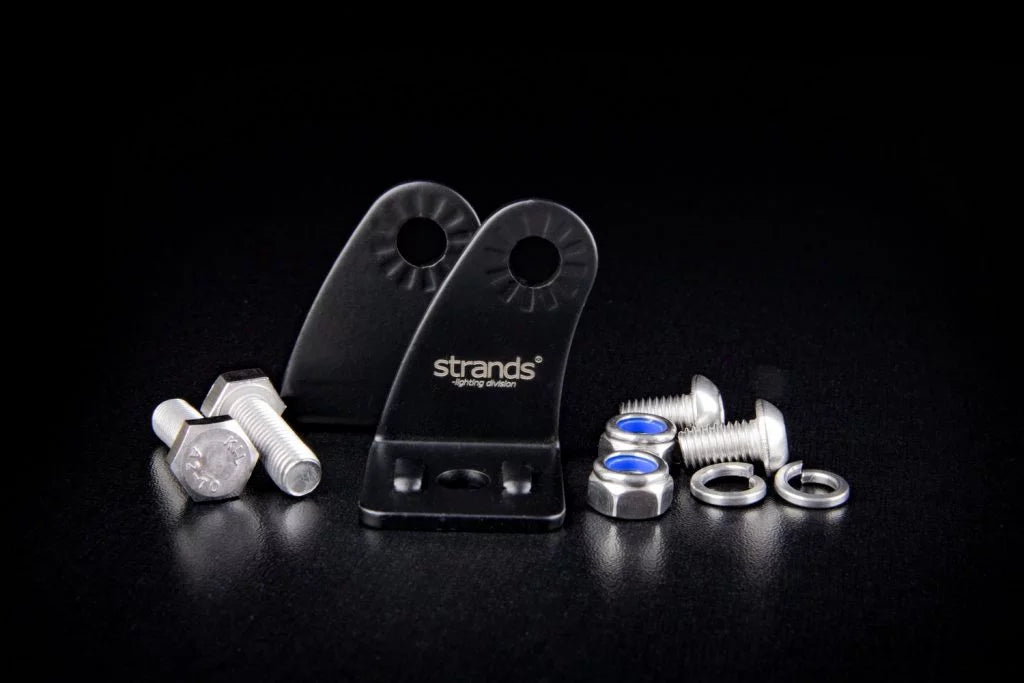

- Material bracket Stainless steel
- Material housing/chassis Aluminium
- Material lens Polycarbonate
- Length (mm) 815.71
- Depth (mm) 55.5
- Height (mm) 45
- Height including bracket (mm) 65
- Operating temperature -20°C – +45°C
- ADR-approved No
- E-approved No
- According to regulation ECE R112. R7
- Reference number 37.5
- EMC ECE R10
- 3 Year Function Warranty
Wiring Harness:
72999 Harness + 1 x 270438 Adapter
