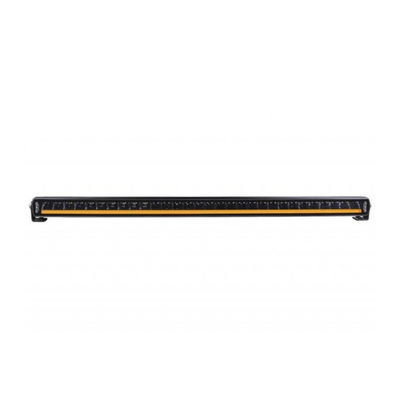

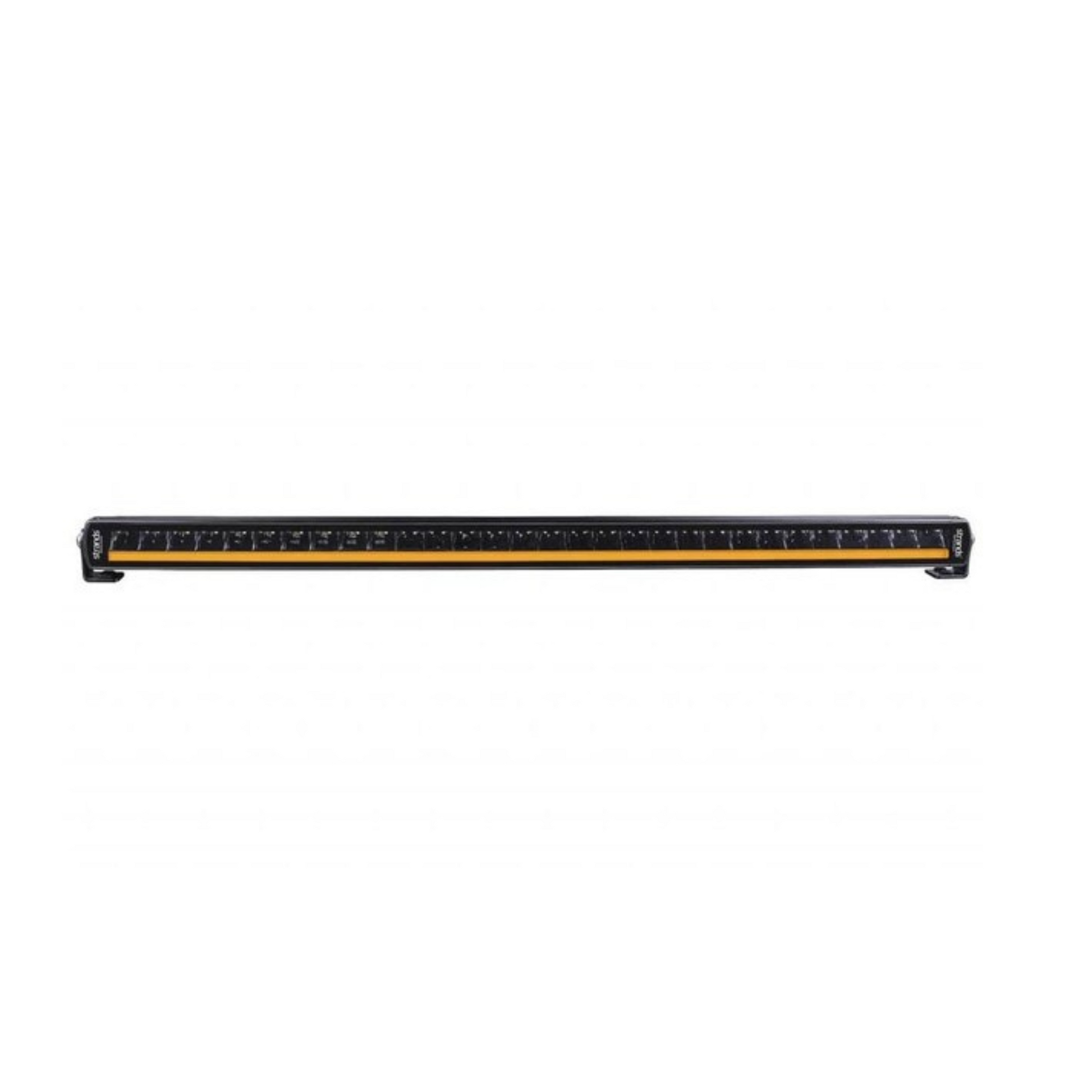

STRANDS 32″ SIBERIA E-MARKED SINGLE ROW

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 30
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 95
• Consumption (w) 24V 95
• Consumption specific function (w) 12V White position light: 7.5
  Amber position light: 21
• Consumption specific function (w) 24V White position light: 7.5
  Amber position light: 21
• Theoretical lumen 12000
• Actual lumen 5641
• 1 LUX @ m 444
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500

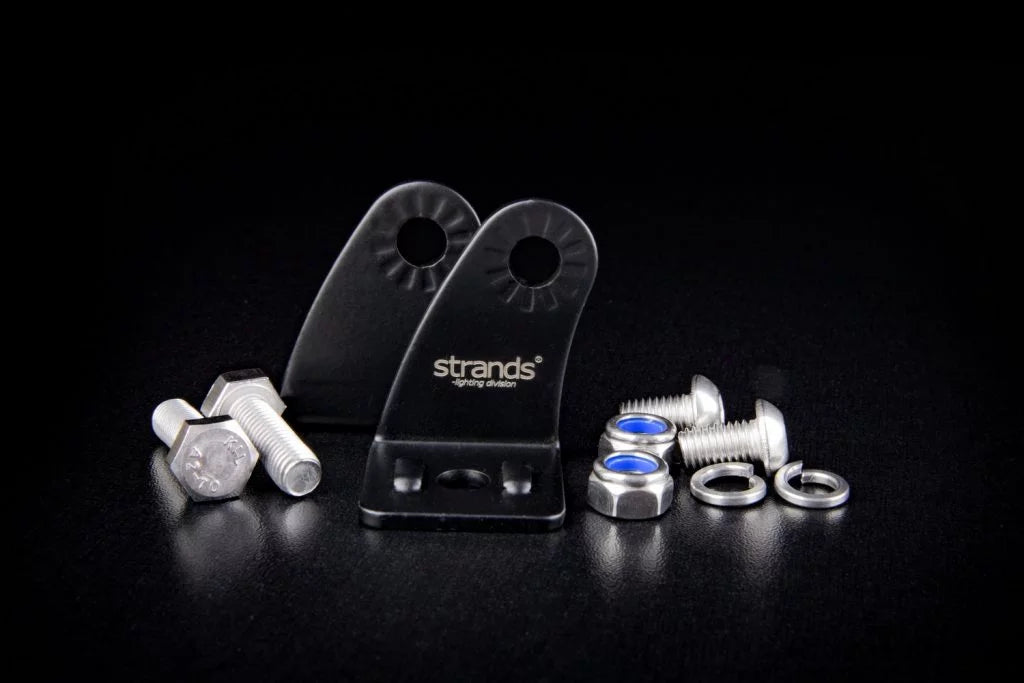

• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 813.6BrightSource
• Depth (mm) 55.5
• Height (mm) 45
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 50
• EMC ECE R10
• 3 Year Function Warranty

Wiring Harness:

72999 Harness + 1 x 270438 Adapter
