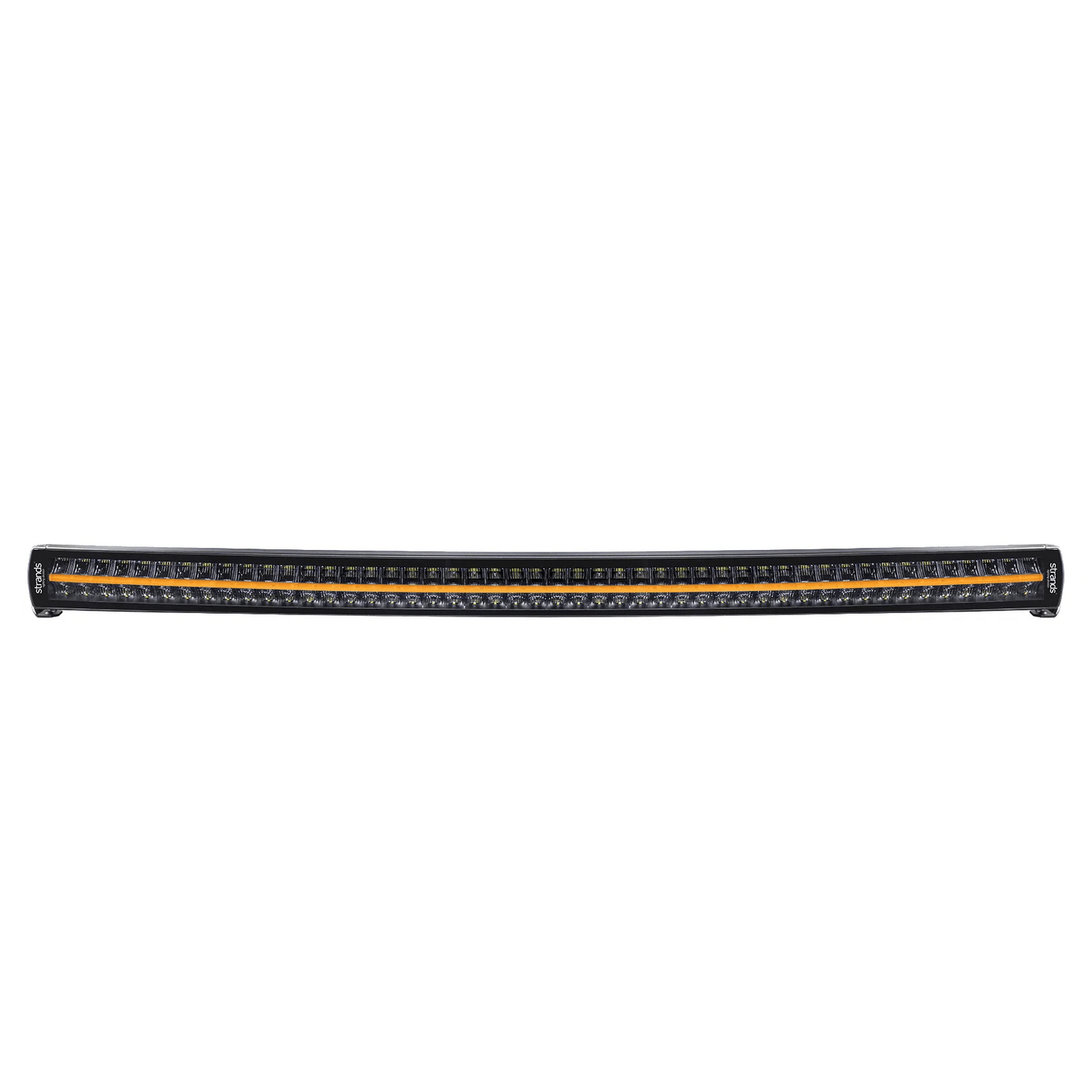

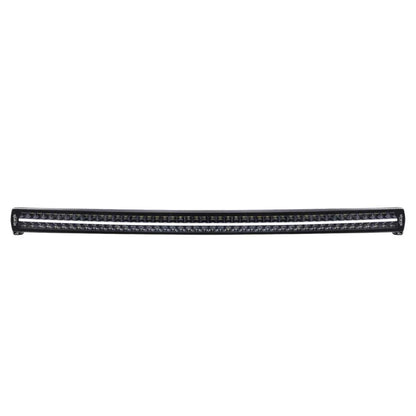

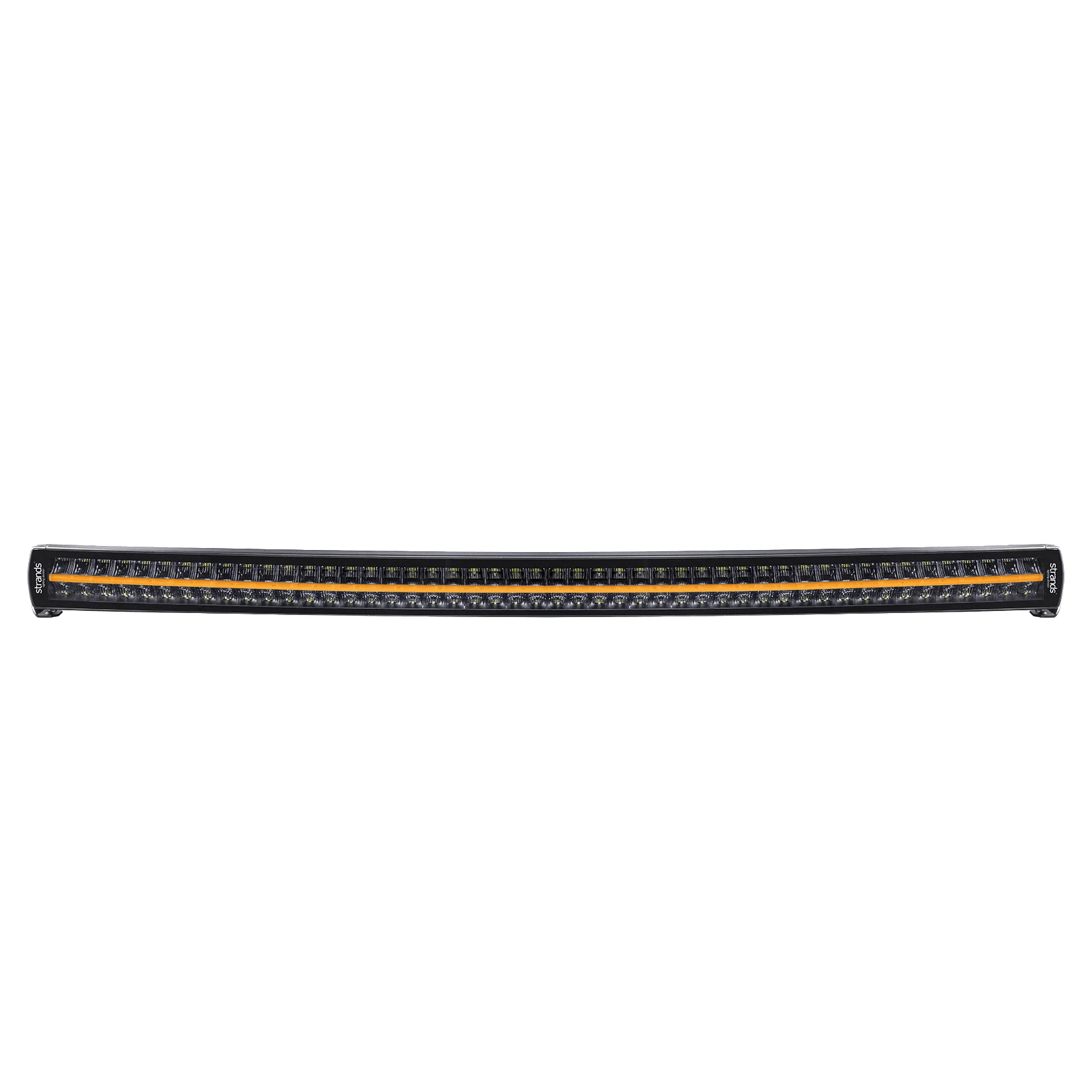

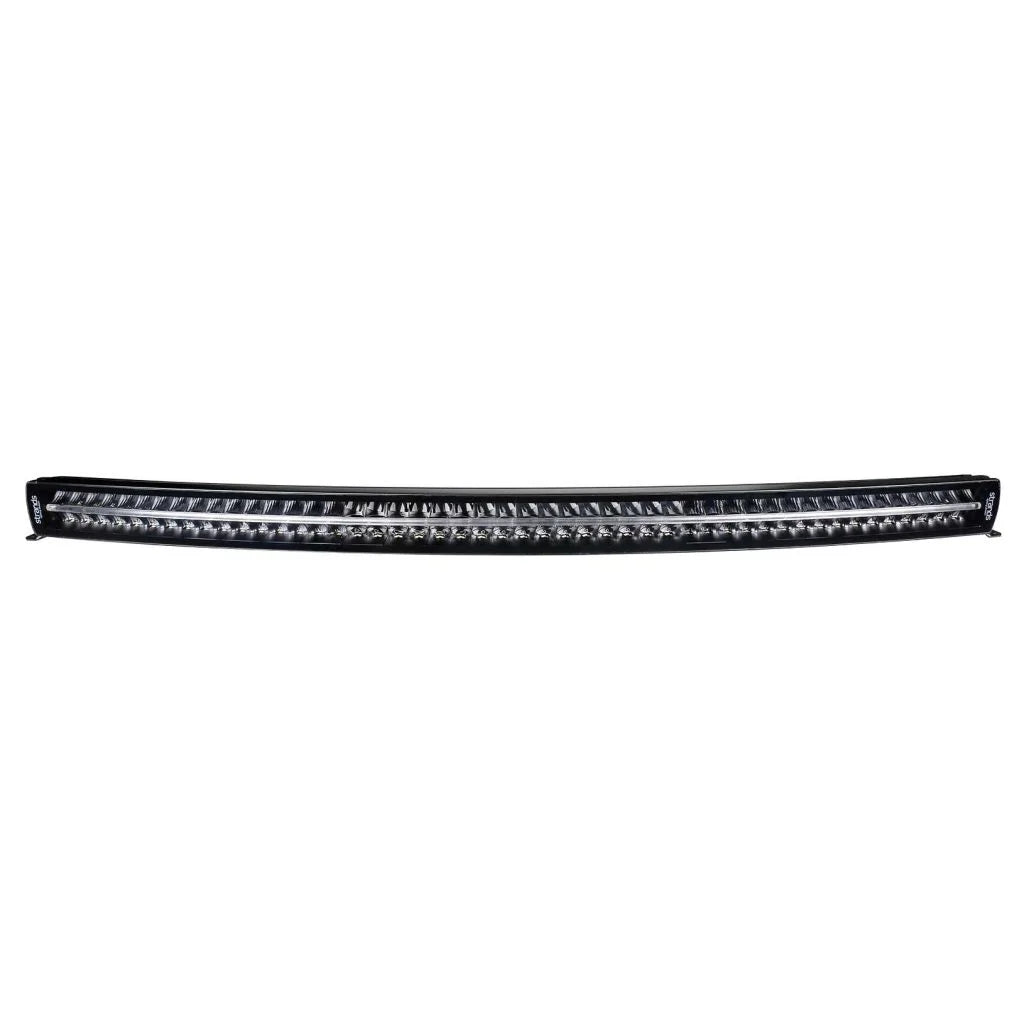

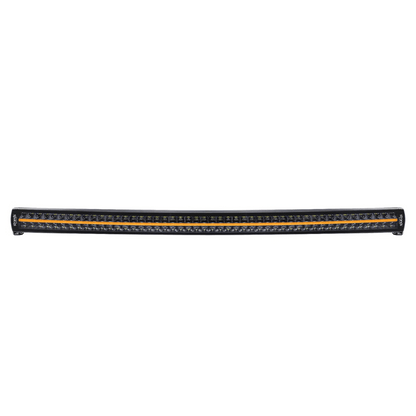

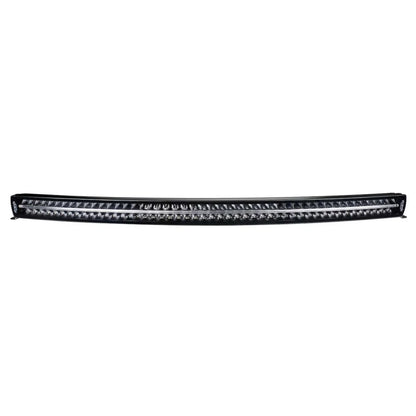

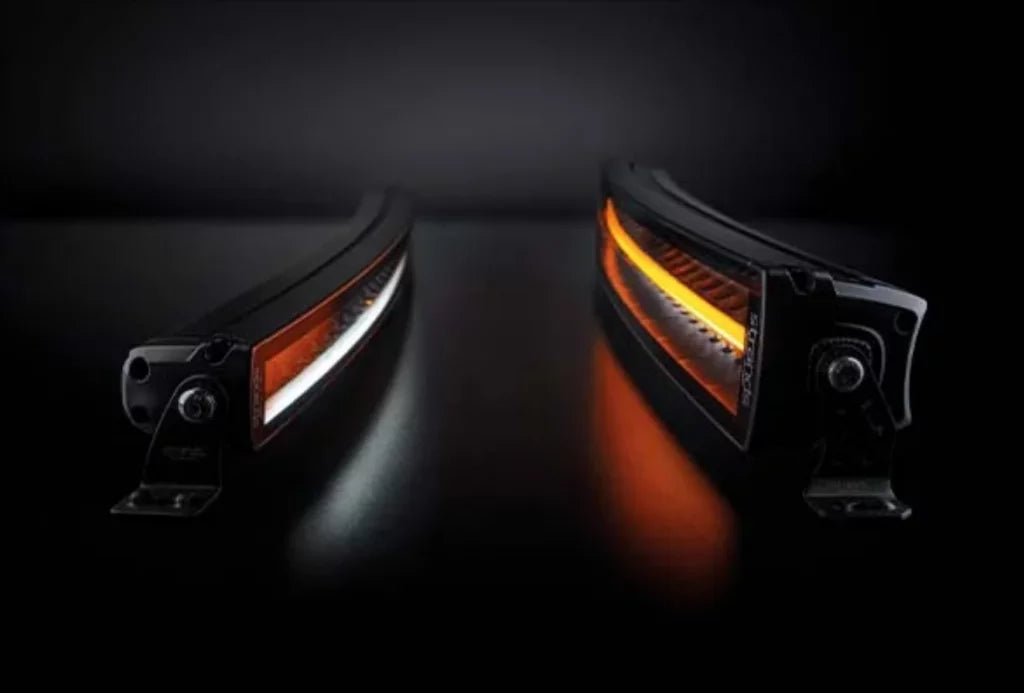

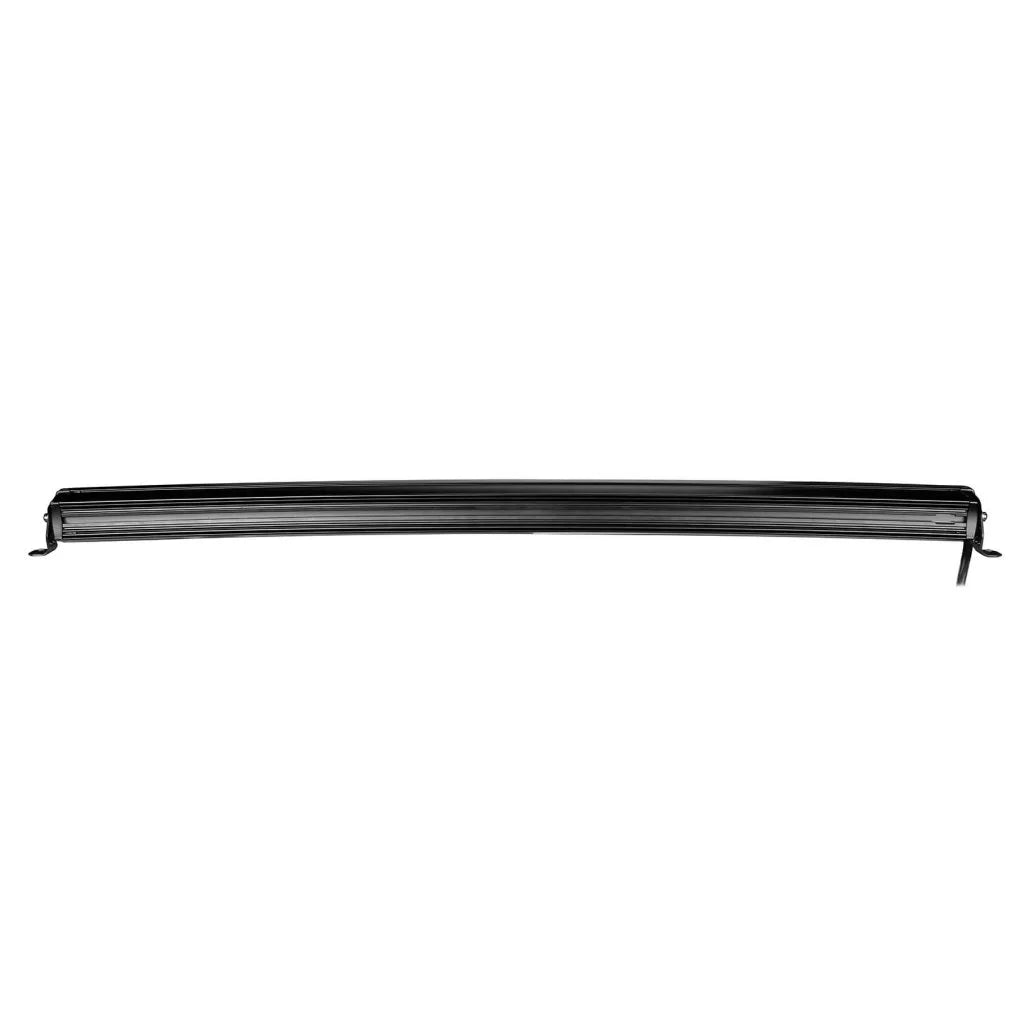

STRANDS 50″ SIBERIA CURVED DOUBLE ROW

• • Type of lamp LED
  • Voltage (V DC) 10-40V DC
  • Consumption (w) 12V High beam: 487.2
  • Consumption (w) 24V High beam: 468.3
    White position light: 12
    Amber position light: 36.5
  • Theoretical lumen 38400
  • Actual lumen 18900
  • 1 LUX @ m 573
  • IP-class IP67/69K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White

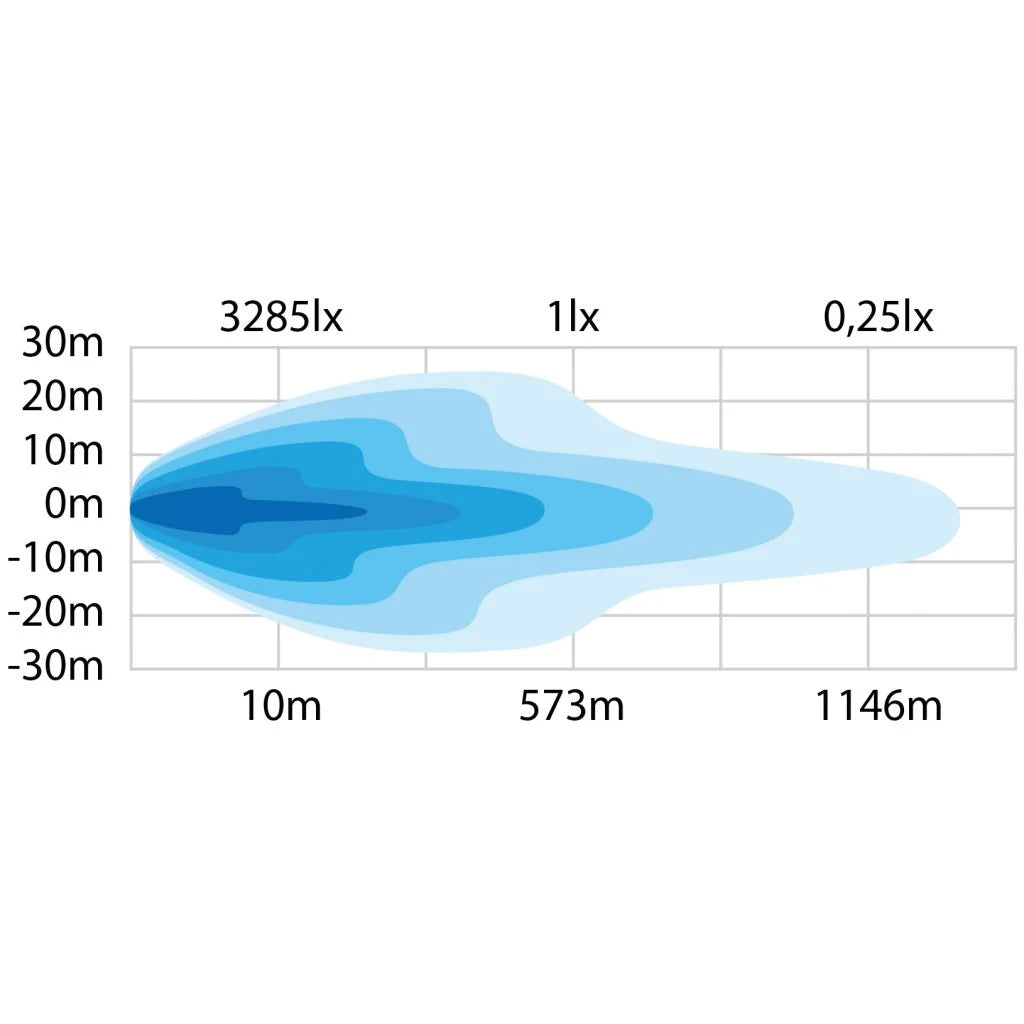

  • Beam pattern Combo
  • Position light Yes. white and amber
  • Connection Pigtail
  • Cable length (mm) 2500
  • Material bracket Stainless steel
  • Material housing/chassis Aluminium
  • Material lens Polycarbonate
  • Length (mm) 1281.11
  • Depth (mm) 71.6
  • Height (mm) 76
  • Height including bracket (mm) 89
  • Operating temperature -20°C – +45°C
  • ADR-approved No
  • E-approved  No
  • EMC ECE R10
  • 3 Year Function Warranty

Hardwire installation required

*This light is sold individually and does not include a harness.
