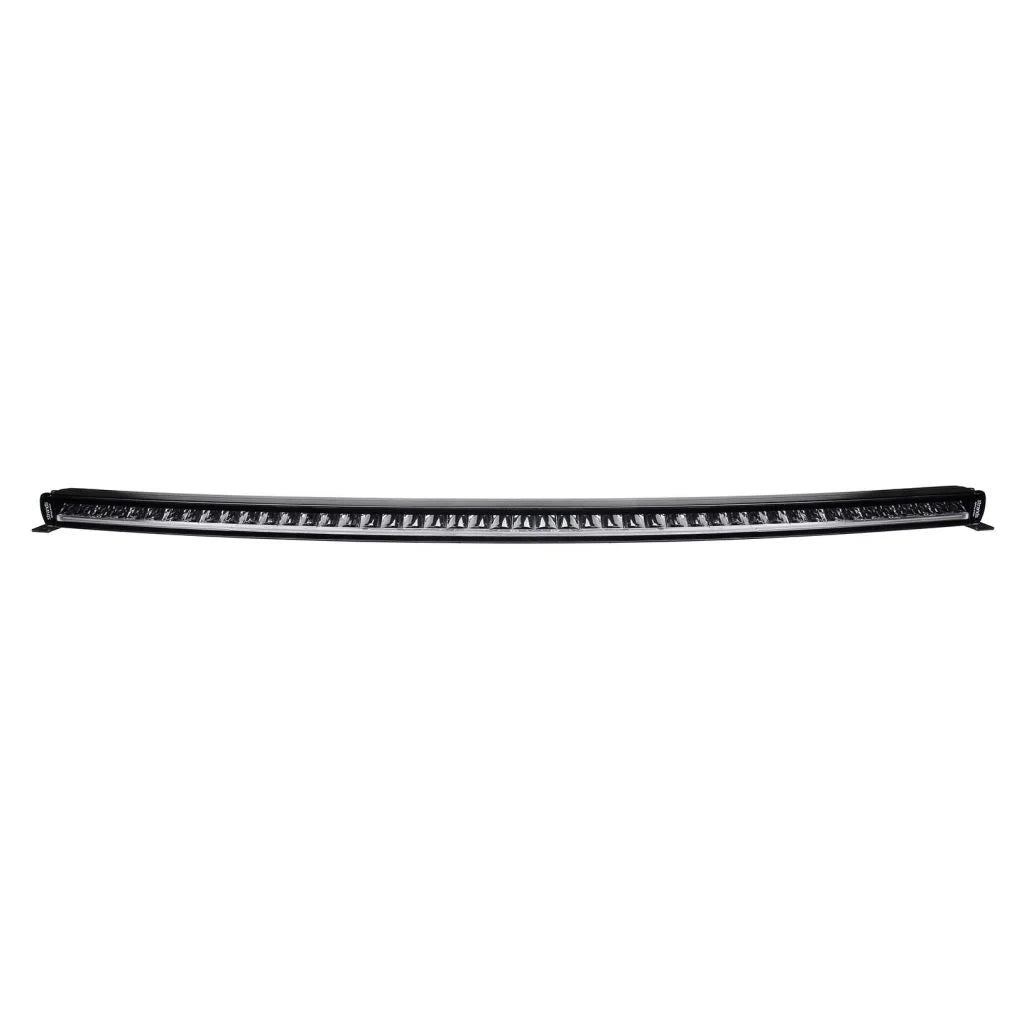

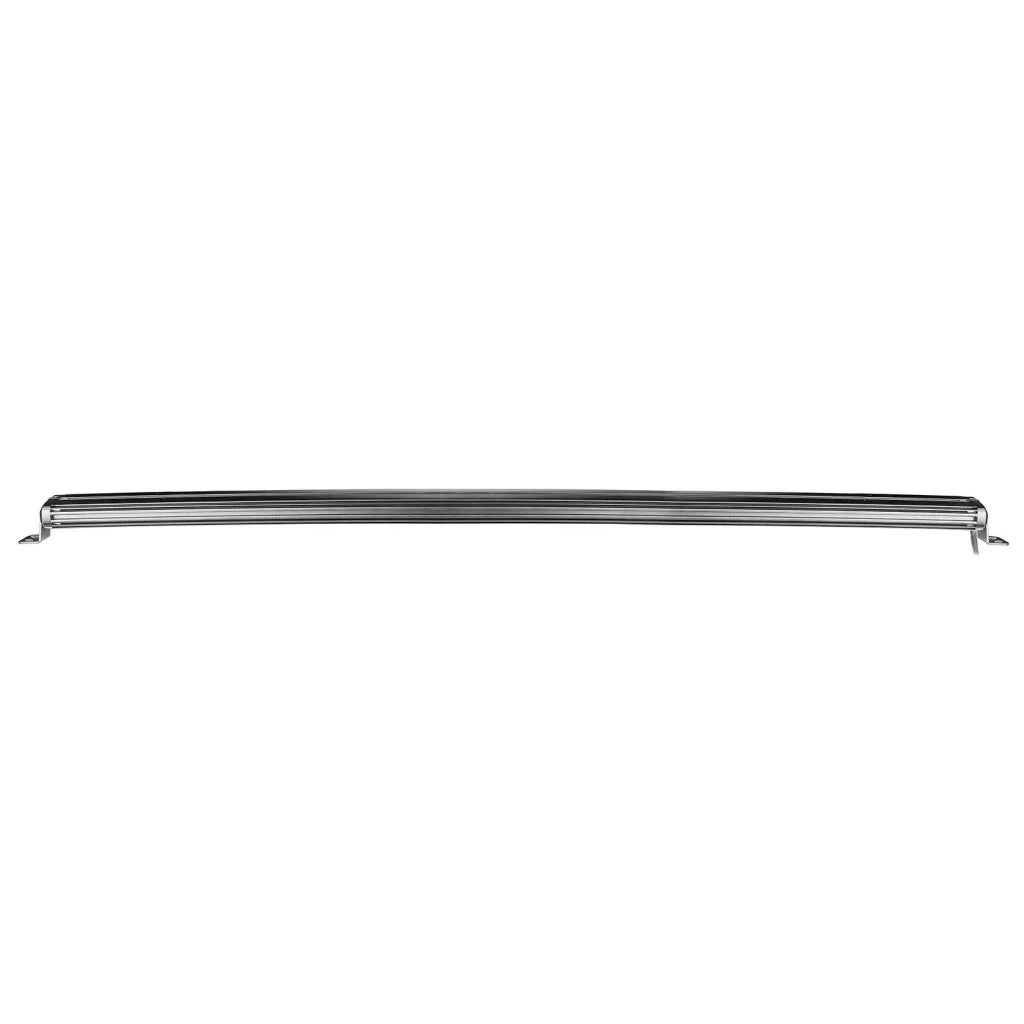

STRANDS 50″ SIBERIA CURVED SINGLE ROW

• • Type of lamp LED
  • Voltage (V DC) 10-40V DC
  • Consumption (w) 12V High beam: 241.2
  • Consumption (w) 24V High beam: 228

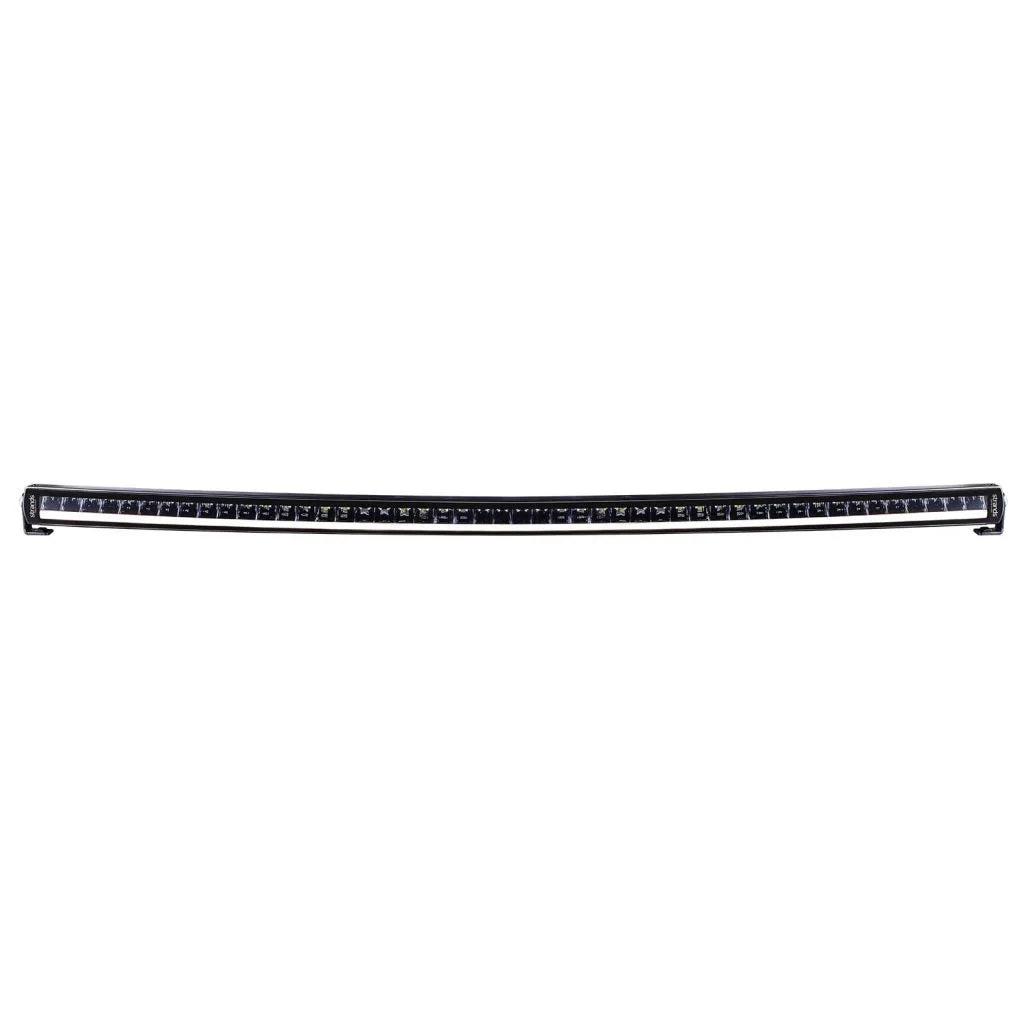

    White position light: 12

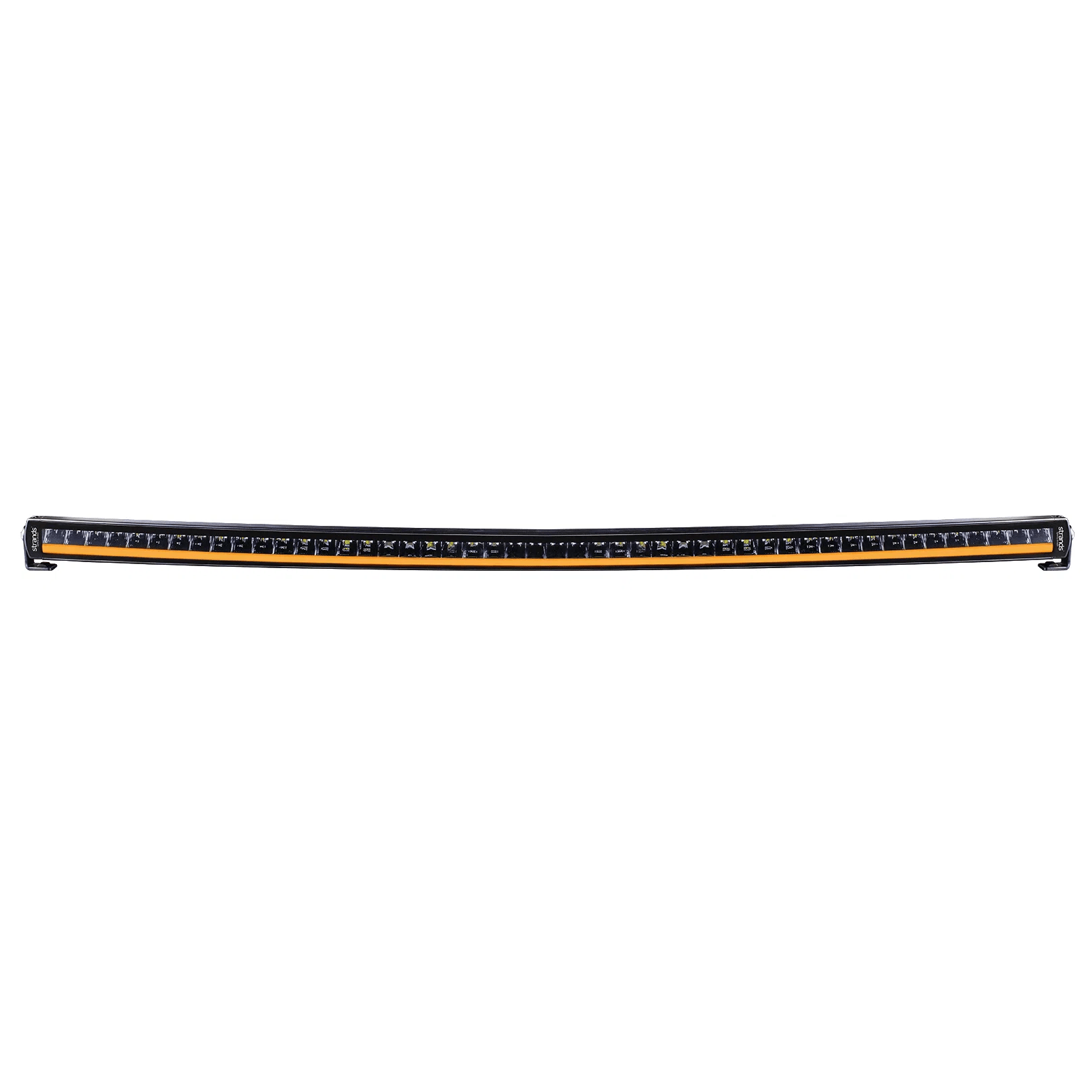

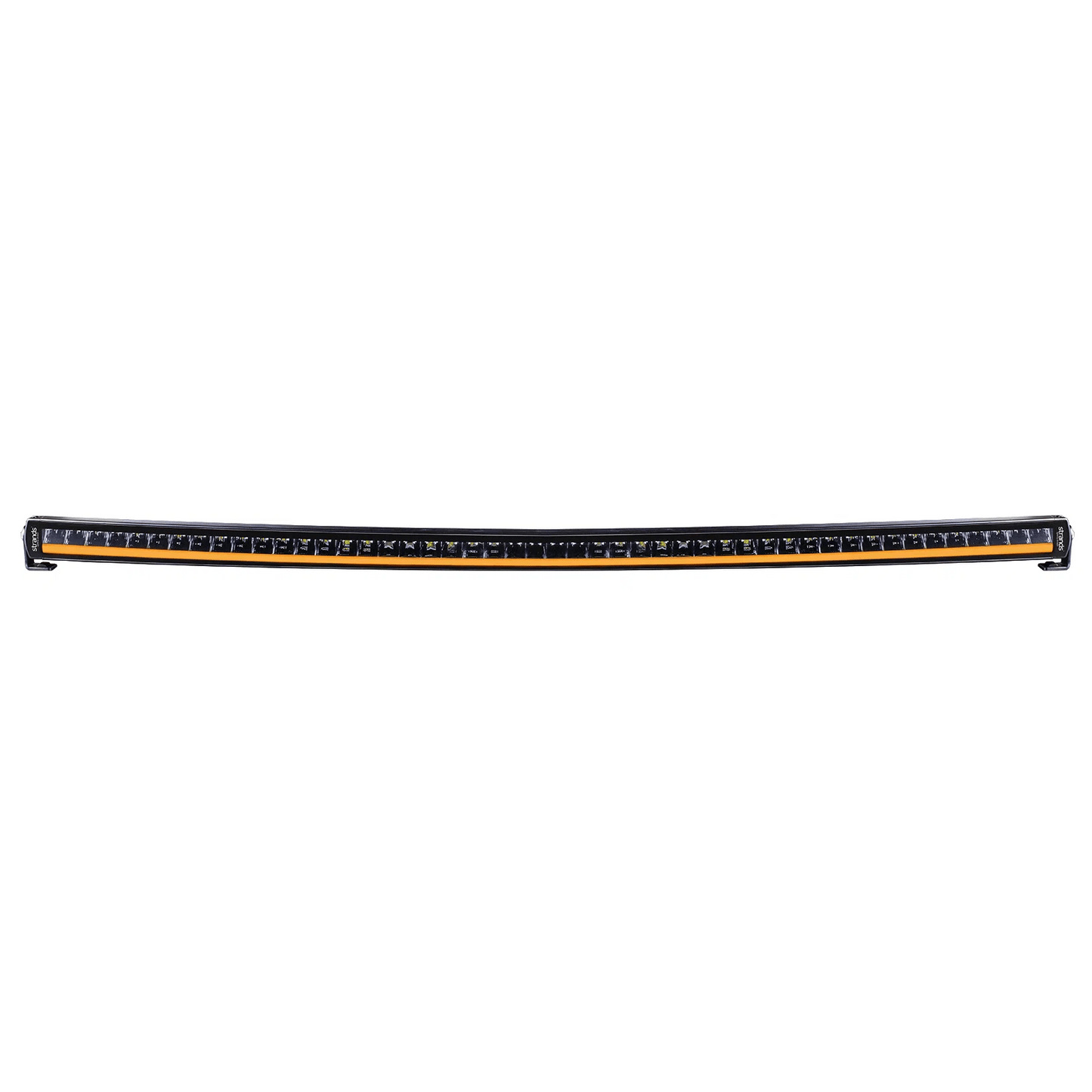

    Amber position light: 31
  • Theoretical lumen 19200
  • Actual lumen 11146
  • 1 LUX @ m 524
  • IP-class IP67/69K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White

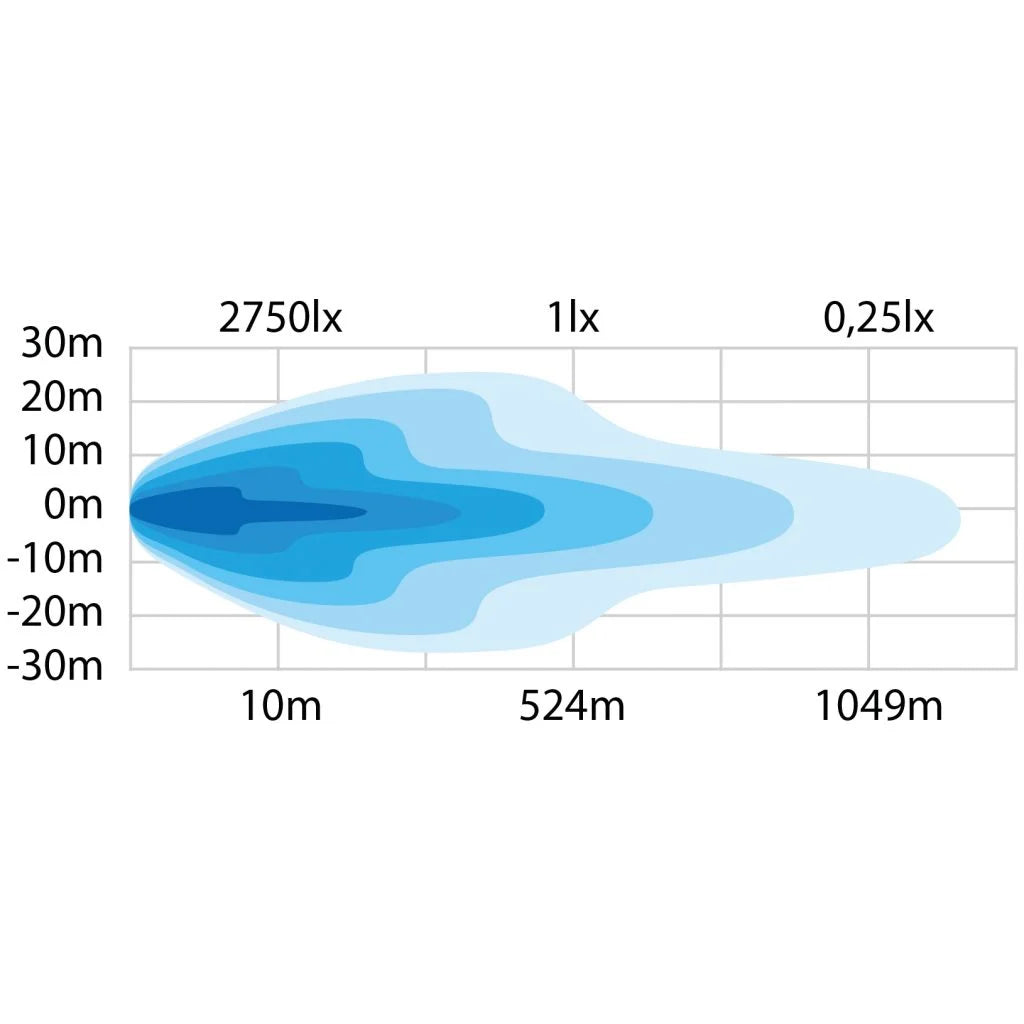

  • Beam pattern Combo
  • Position light Yes. white and amber
  • Connection Pigtail
  • Cable length (mm) 2500

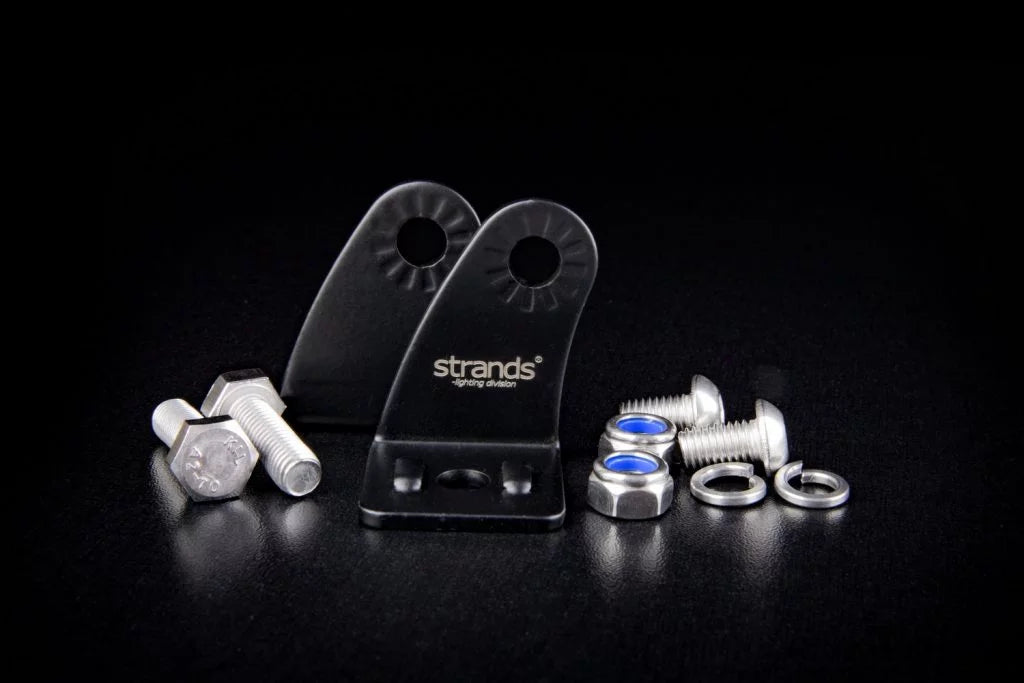

  • Material bracket Stainless steel
  • Material housing/chassis Aluminium
  • Material lens Polycarbonate
  • Length (mm) 1272.73
  • Depth (mm) 55.5
  • Height (mm) 45
  • Height including bracket (mm) 65
  • Operating temperature -20°C – +45°C
  • ADR-approved No
  • E-approved  No
  • EMC ECE R10
  • 3 Year Function Warranty

**Hardwire installation required**
