Description:

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 96
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 239
• Consumption (w) 24V 239
• Consumption specific function (w) 12V White position light: 12
  Amber position light: 36.5
• Consumption specific function (w) 24V White position light: 12
  Amber position light: 36.5
• Theoretical lumen 38400
• Actual lumen 11280

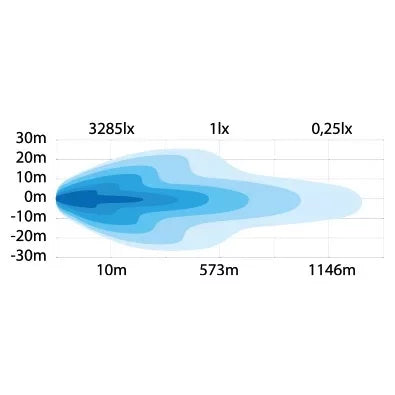

• 1 LUX @ m 573
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection Cable (pigtail)
• Cable length (mm) 2500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 1276
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 50
• EMC ECE R10
• 3 Year Function Warranty


**Hardwire installation required**
