Description:

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 48
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 155
• Consumption (w) 24V 155
• Consumption specific function (w) 12V White position light: 12
  Amber position light: 31
• Consumption specific function (w) 24V White position light: 12
  Amber position light: 31
• Theoretical lumen 19200
• Actual lumen 8570
• 1 LUX @ m 443
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White

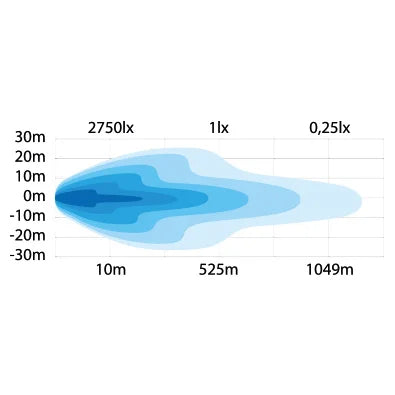

• Beam pattern Combo

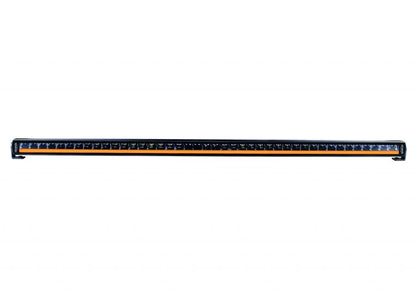

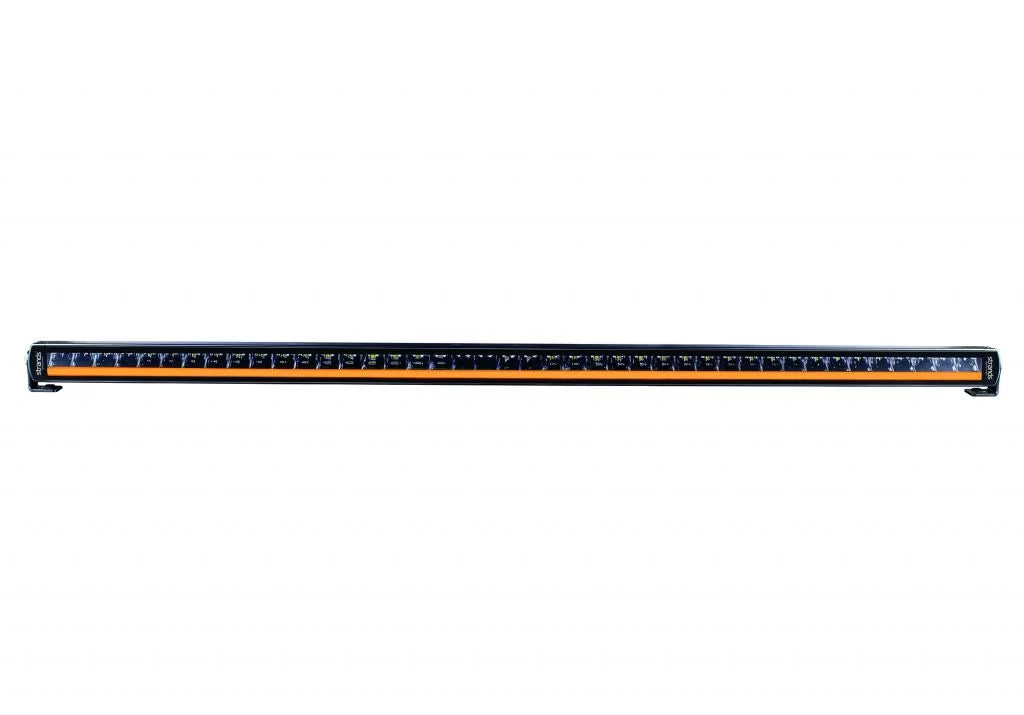

• Position light Yes. white and amber
• Connection Pigtail (no connector)
• Cable length (mm) 2500

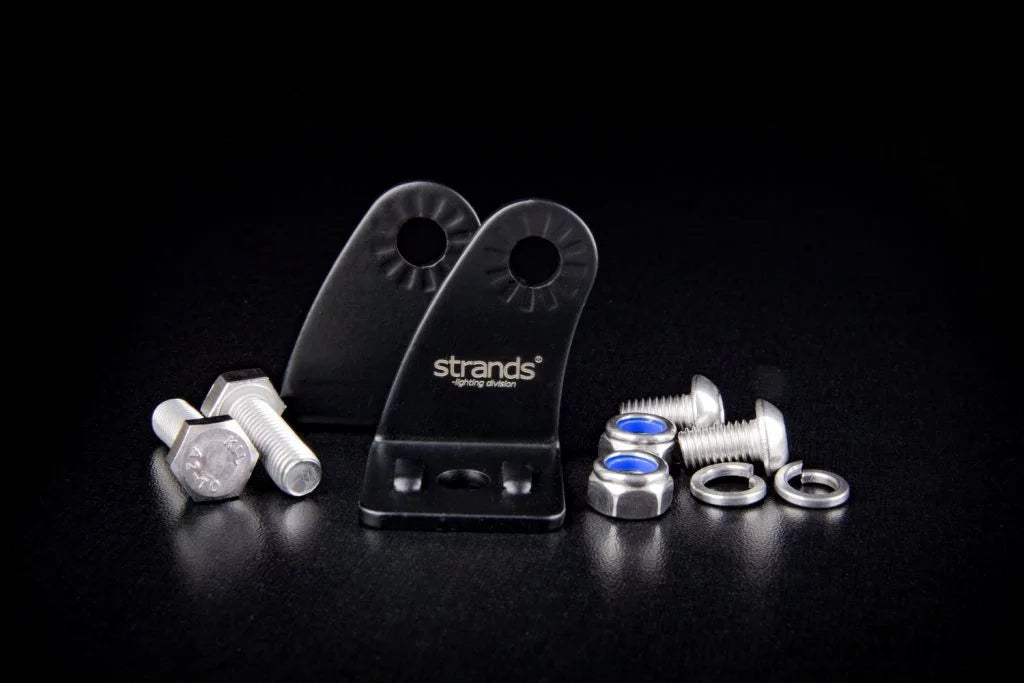

• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 1269.6
• Depth (mm) 55.5
• Height (mm) 45
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 50
• EMC ECE R10
• 3 Year Function Warranty


**Hardwire installation required**
