Description:

• Type of lamp LED
• Voltage (V DC) 10-40V DC
• Consumption (W) 28w
• Theoretical lumen 4800
• Actual lumen 2002

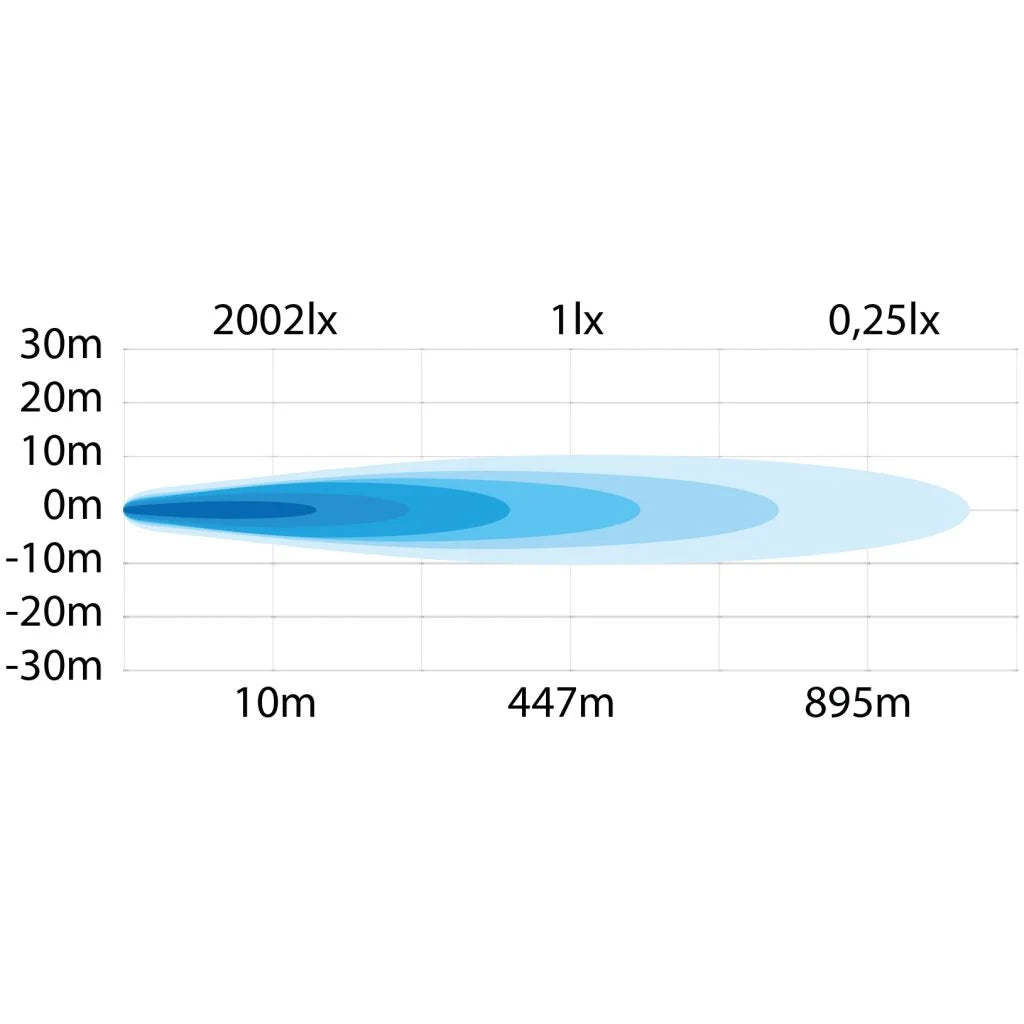

• 1 LUX @ m 447
• IP-class IP67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500

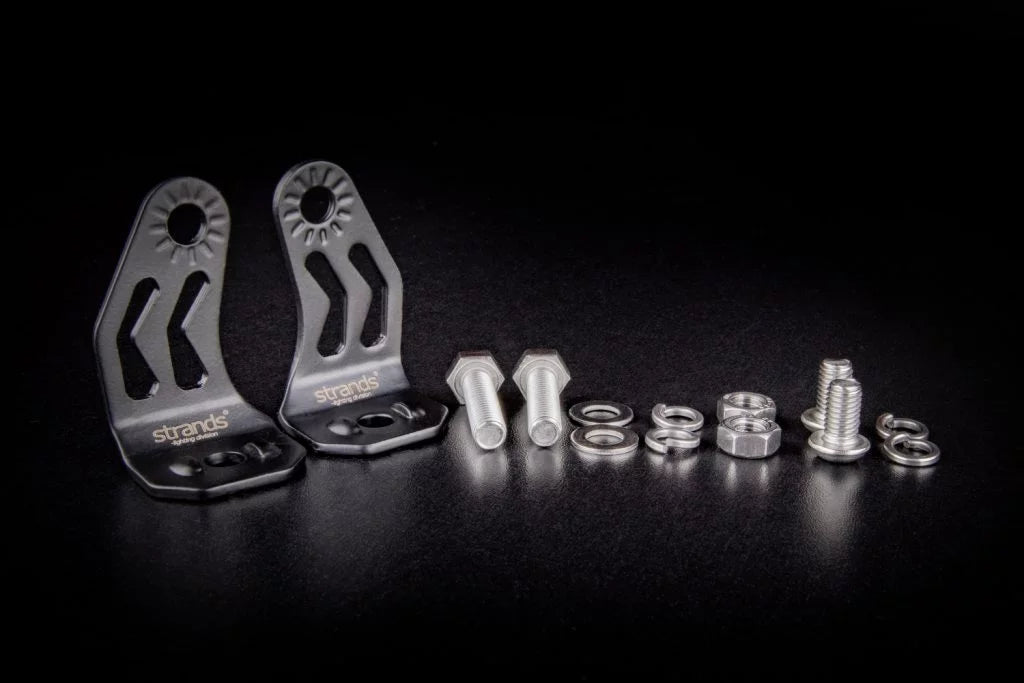

• Material bracket Stainless steel
• Material housing/chassis Aluminium
• Material lens Polycarbonate
• Length (mm) 205
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 45
• EMC ECE R10
• 3 Year Function Warranty

Wiring Harness Options:

One Light – 72999 Harness + 1 x 270438 Adapter
Two Lights – 73240 Harness + 2 x 270438 Adapter
