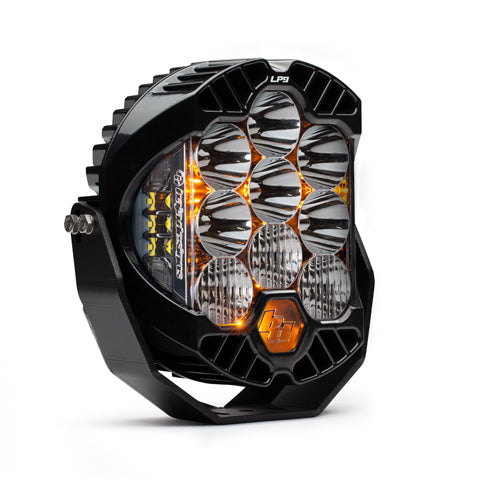

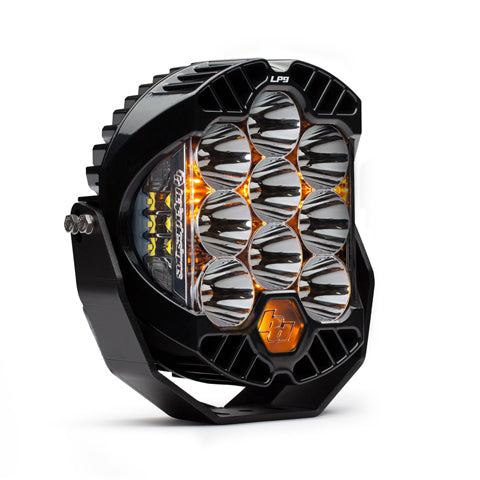

BAJA DESIGNS LP9 PRO LED Auxiliary Light Pod - Universal

BAJA DESIGNS

SKU:320001

IN STOCK ONLINE

$862.95 CAD

ON SALE Sold out

Shipping calculated at checkout.

LIGHT PATTERN Spot Driving/Combo

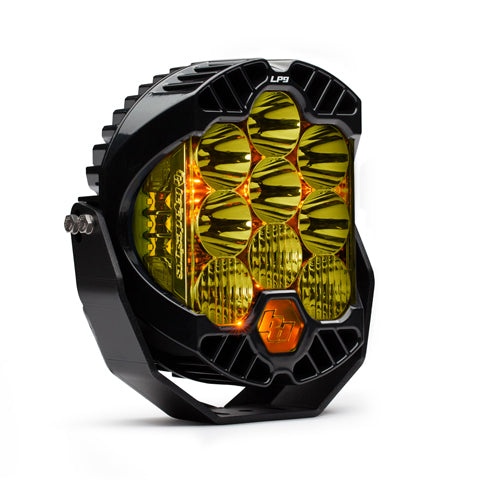

LENS COLOR Clear Baja Amber

BACKLIGHT Amber Red Blue Green

Specifications

SKU	320001
Lens Color	Clear
Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity	9
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	LP9 Pro LED Light Pod
Secondary Amperage Rating (A)	1.520
Secondary Brightness (Lumens)	2302
Secondary Light Quantity	6 LEDs
Secondary Lighting Technology	LED
Secondary Lighting Type	Integrated Peripheral Technology (IPT)
Secondary Wattage (W)	21
Terminal Connector	DT06-4S Deutsch
Terminal Type	Mating Connector
Universal or Specific	Universal
Wattage (W)	124.200
Wiring Harness Included	No
Amperage Rating (A)	9
Average Rated Life (hr.)	49,930
Backlight Amperage Rating (A)	0.200
Backlight Wattage (W)	2.800
Beam Pattern	Spot
Bezel Material	Powder Coat Cast Aluminum
Brightness (Lumens)	12547
Description	Spot; Clear
Housing Color	Black
Housing Material	Powder Coat Cast Aluminum

Standards & Compliance

Patent No.	5,504,603
Durability Compliance	Exceeds MIL-STD810G (Mil-Spec Testing)
Impact Resistance Compliance	IK10 Compliant (Mechanical Impact Testing)
Water Resistance Compliance	IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.)	3.250
Height (in.)	8
Length (in.)	8
Weight (lbs.)	6.500

Description

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using our proprietary Direct Ducted Cooling (DDC) technology, which allows air to travel from the front of the housing and over the rear heat sinks drastically improving cooling capacity and performance. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

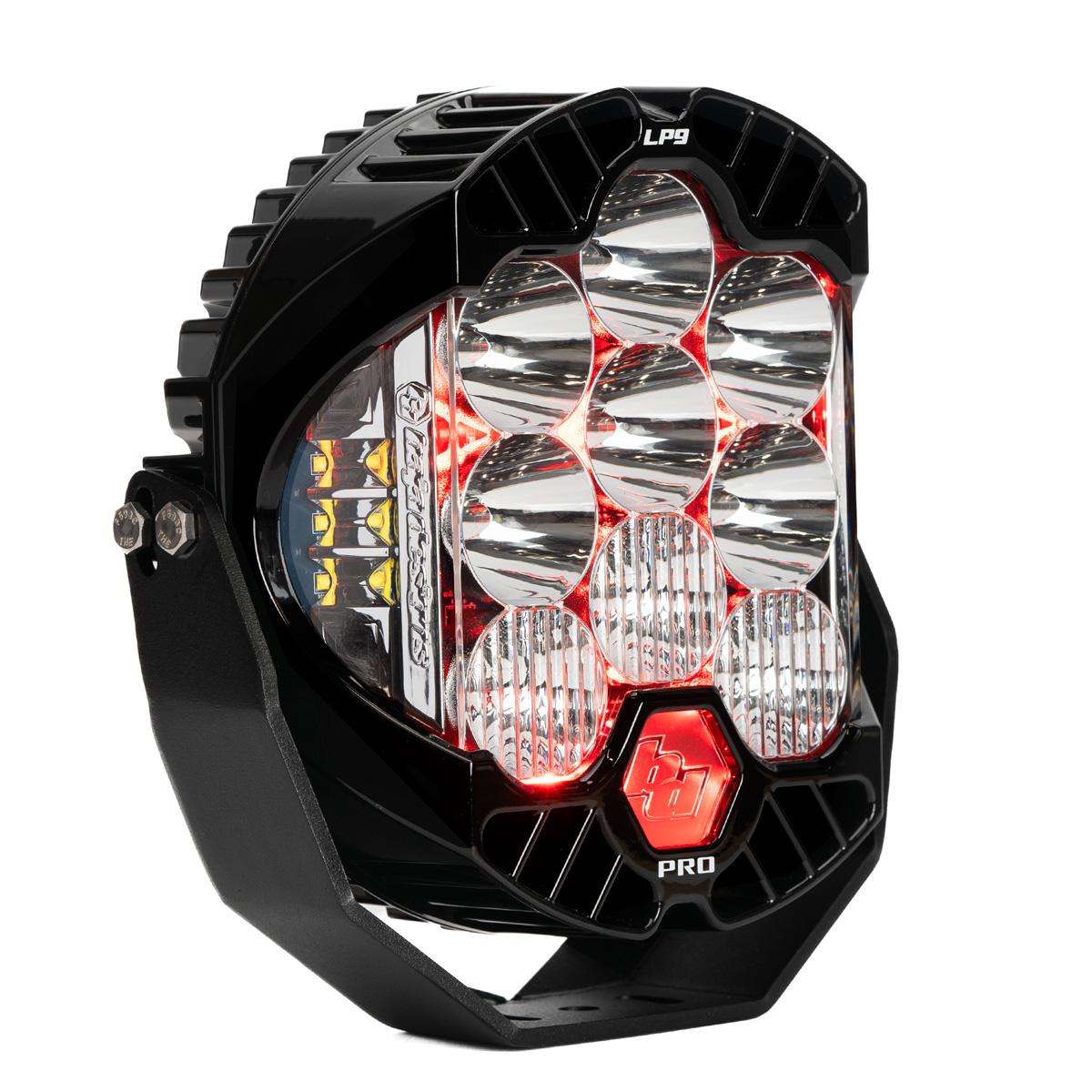

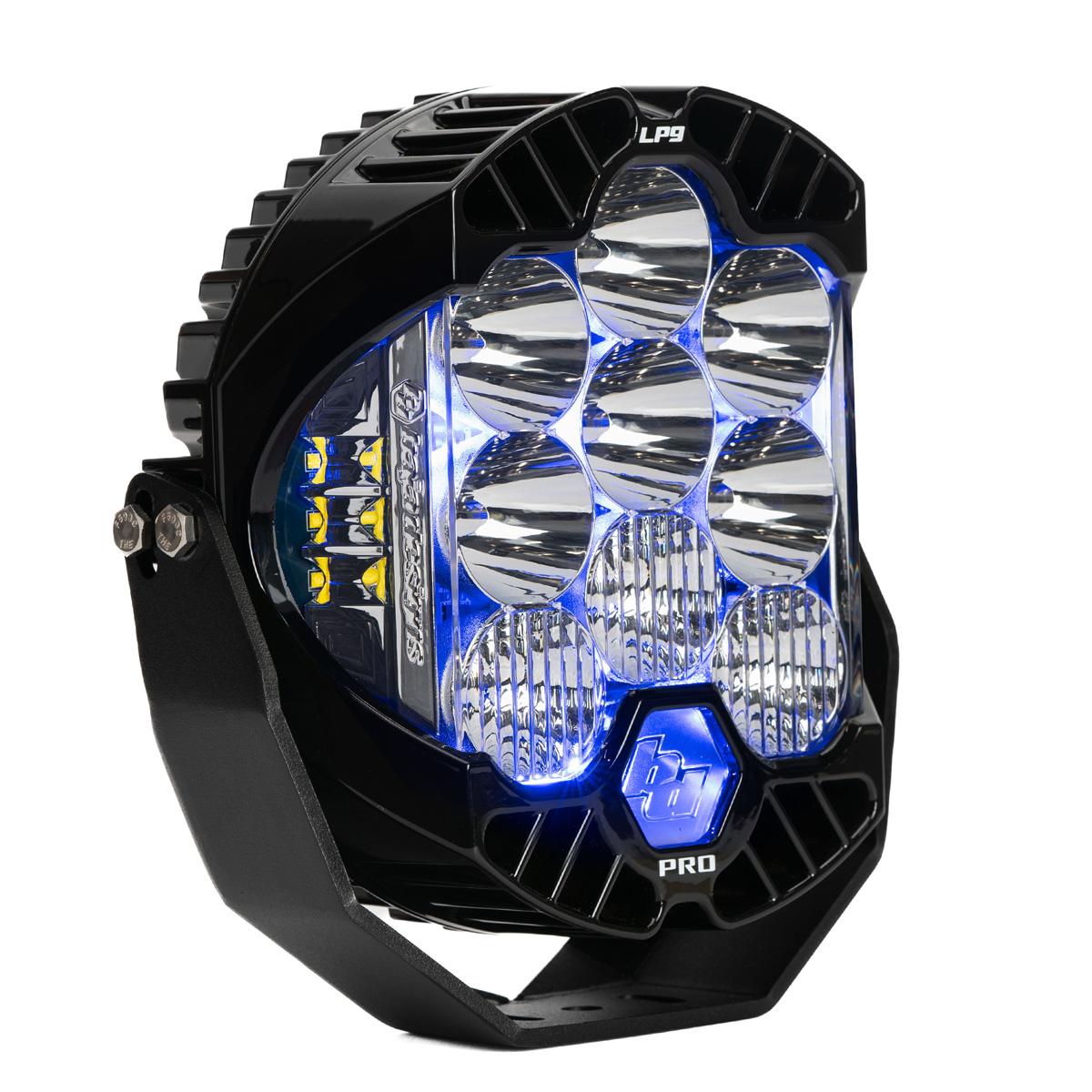

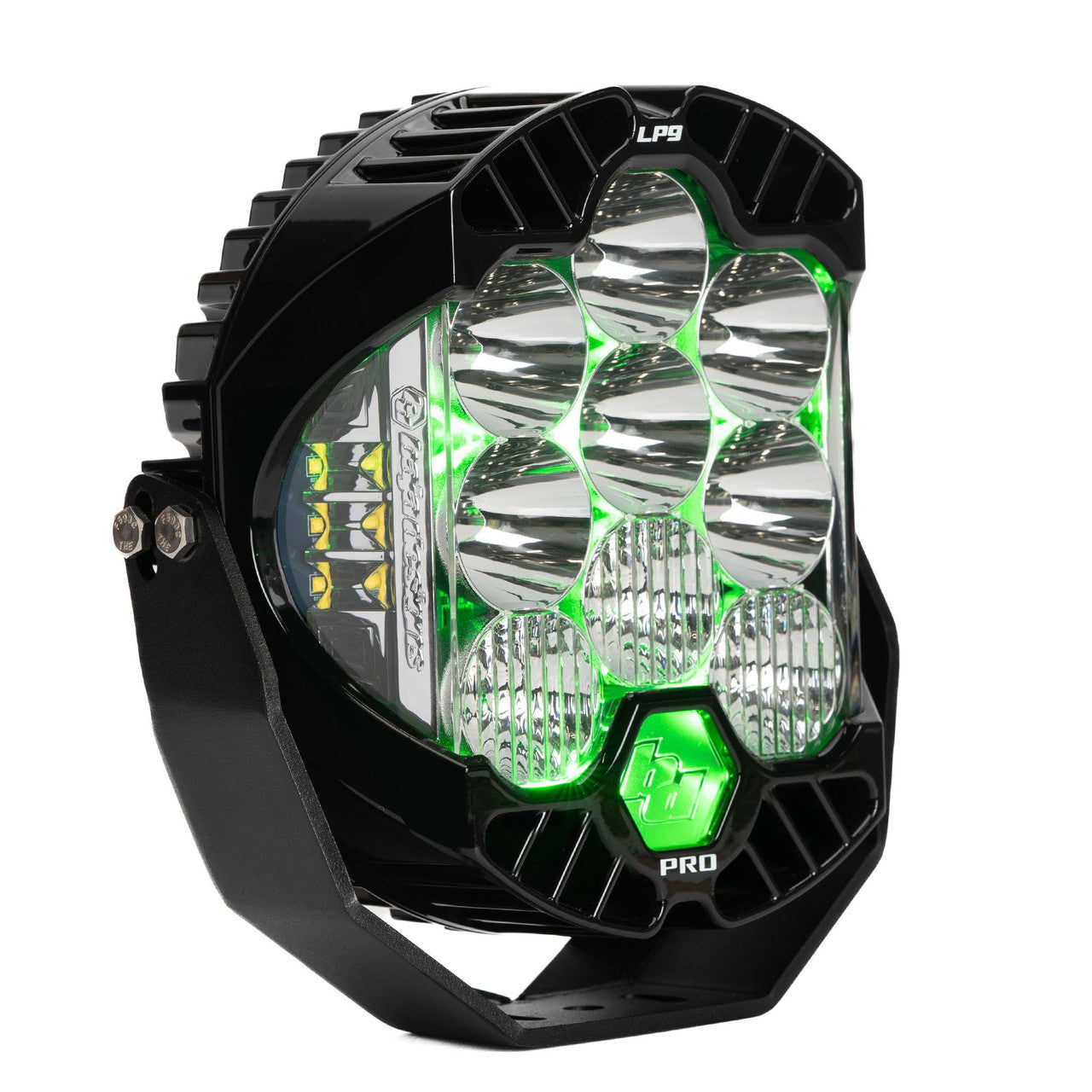

The addition of red, blue, or green backlight options alongside our original amber on the LP9 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color
