BAJA DESIGNS XL Pro LED Auxiliary Light Pod Pair - Universal
BAJA DESIGNS XL Pro LED Auxiliary Light Pod Pair - Universal
SKU:507801
IN STOCK ONLINE
Couldn't load pickup availability
Specifications
| SKU | 507801 |
| Wattage (W) | 41.400 |
| Universal or Specific | Universal |
| Product Type | XL Pro LED Light Pod Pair w/ Wiring Harness |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Wiring Harness Included | Yes |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Light Quantity | 2 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Spot; Clear; Pair |
| Brightness (Lumens) | 4095 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 3 |
Standards & Compliance
| Water Resistance Compliance | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Impact Resistance Compliance | IK10 Compliant (Mechanical Impact Testing) |
| Durability Compliance | Exceeds MIL-STD810G (Mil-Spec Testing) |

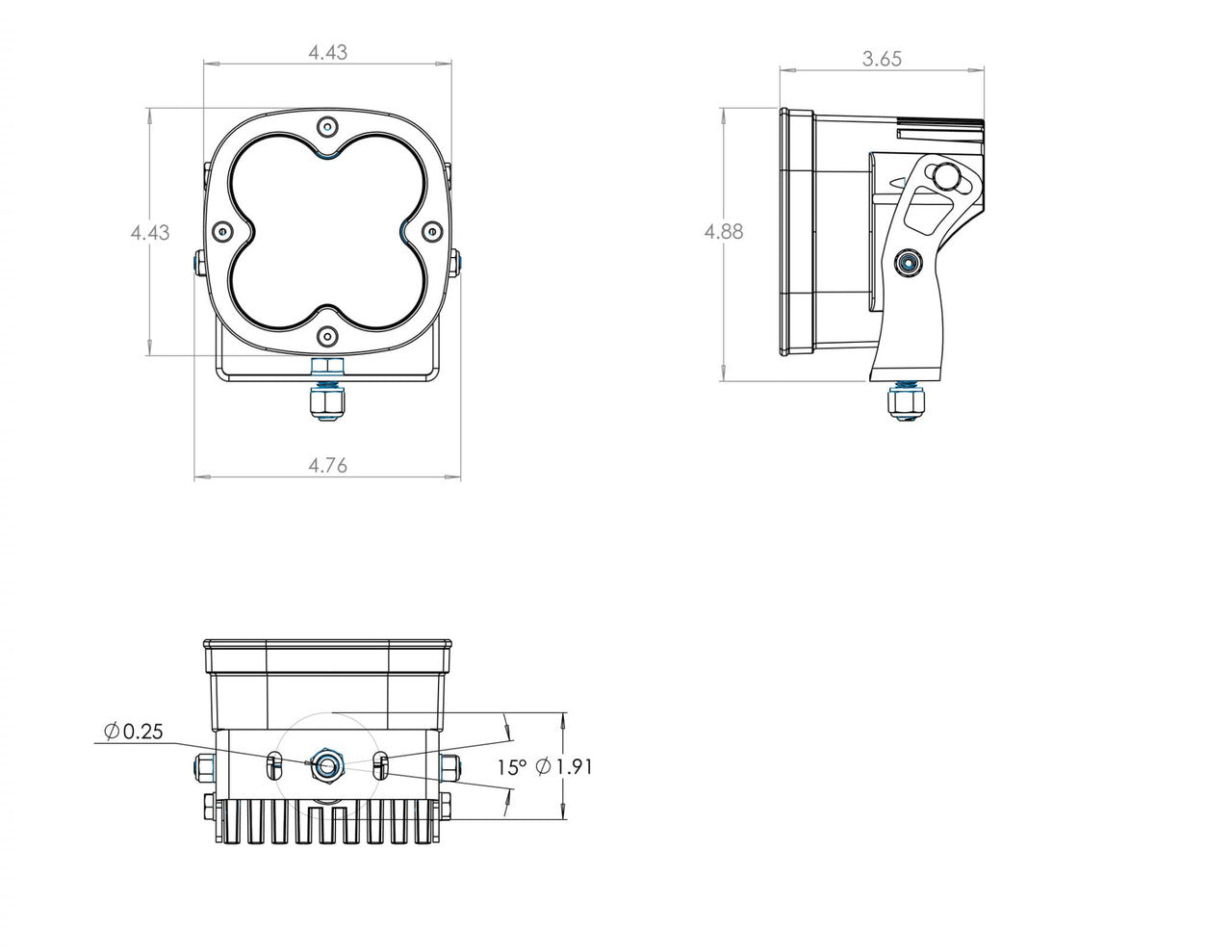

Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
DESCRIPTION
The Baja Designs XL Pro auxiliary light pair is designed to illuminate the terrain ahead, offering a powerful lighting solution for off-road enthusiasts who need exceptional brightness in a versatile package. Featuring Baja Designs' trademarked high-speed spot reflectors, the XL Pro provides a longer and wider beam pattern using next-generation LED technology that delivers 65% greater distance than its predecessor while pushing 4,095 raw lumens per light.

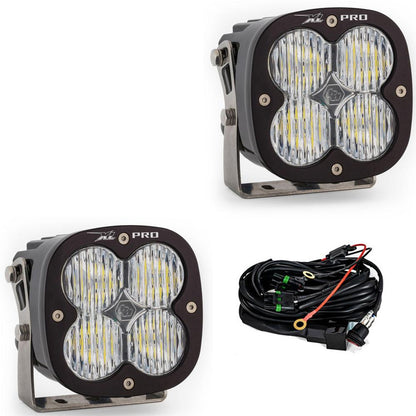

Built for durability, the XL Pro also includes a 20% dimming feature, making it ideal for trucks, vans, UTVs, and motorcycles. The two-light kit comes complete with a wiring harness and all necessary mounting hardware, allowing for a quick and easy installation. Designed for those seeking reliable off-road lighting, Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty, ensuring complete purchase protection.
ELS™ Scores:

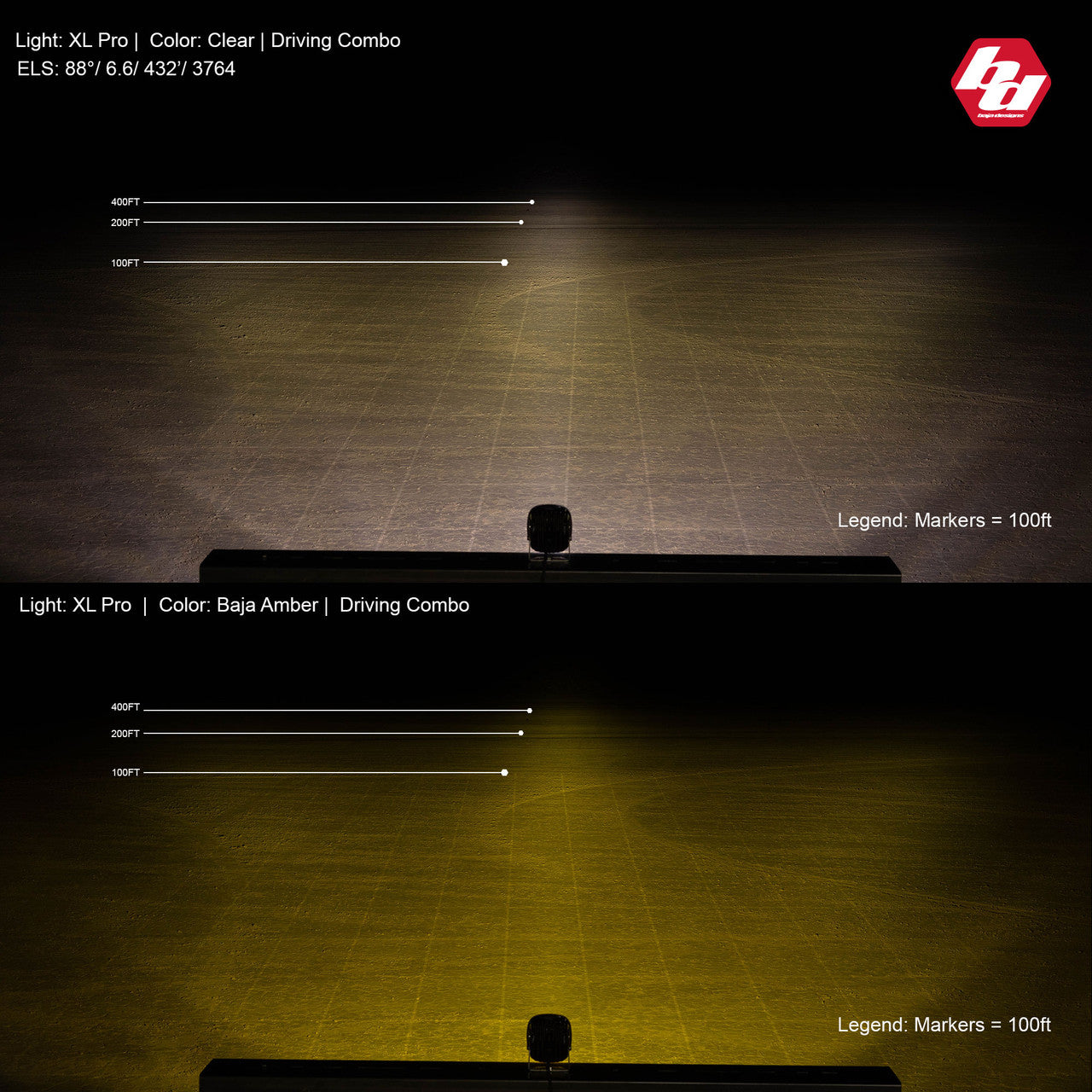

XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764

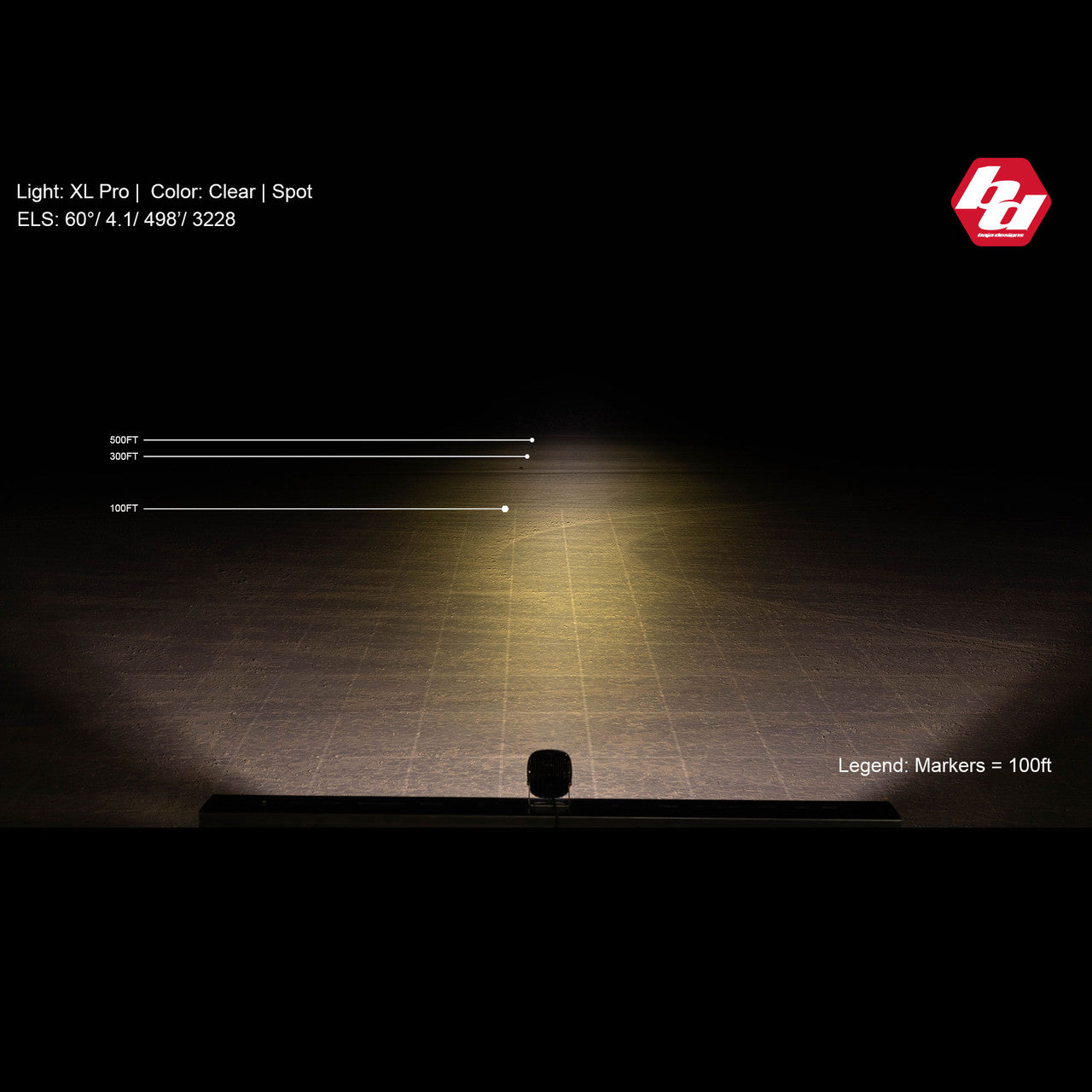

XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228

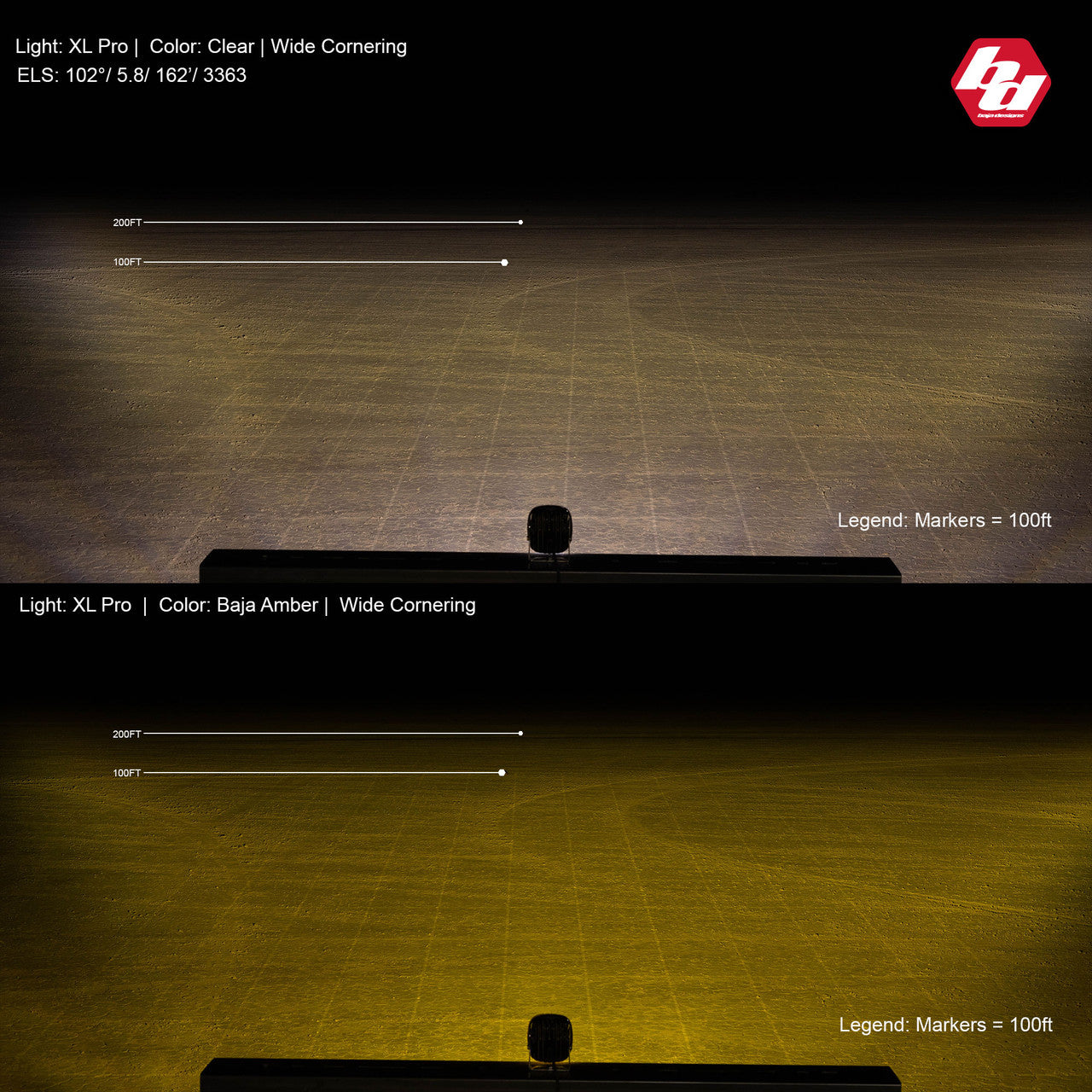

XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:

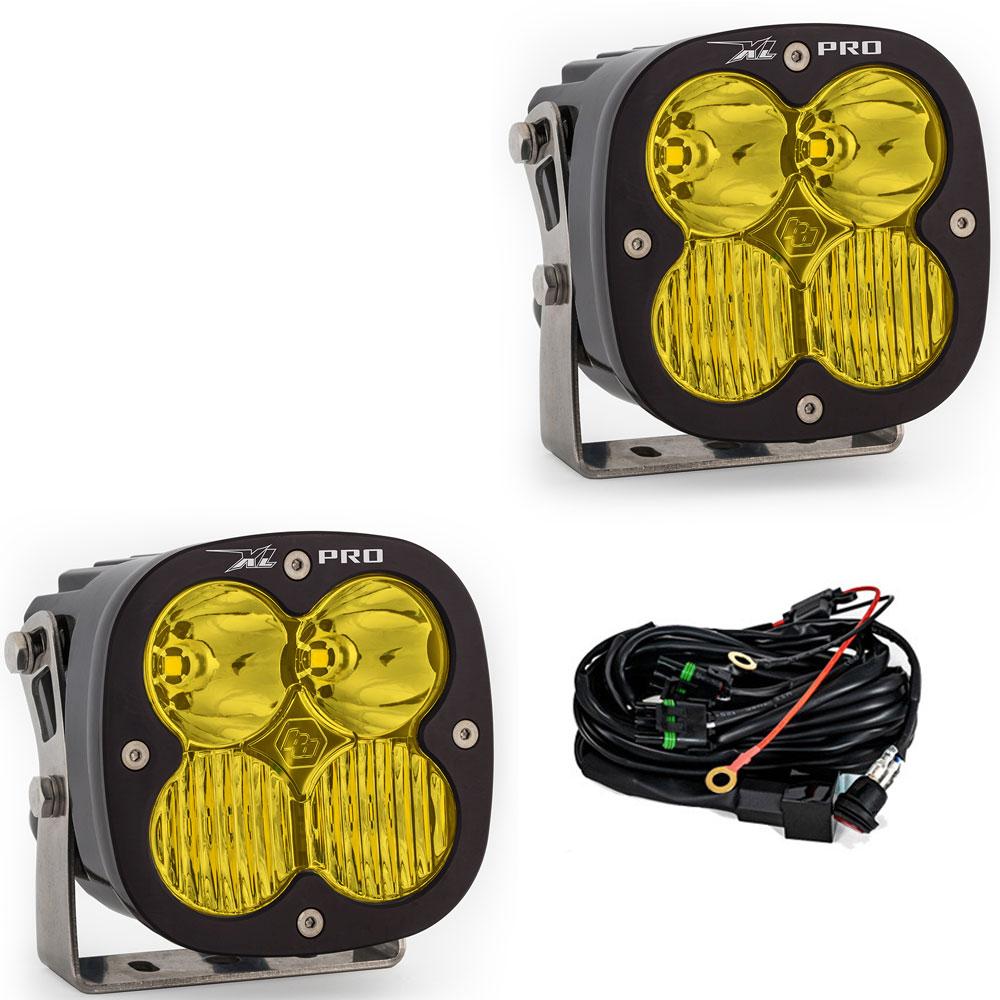

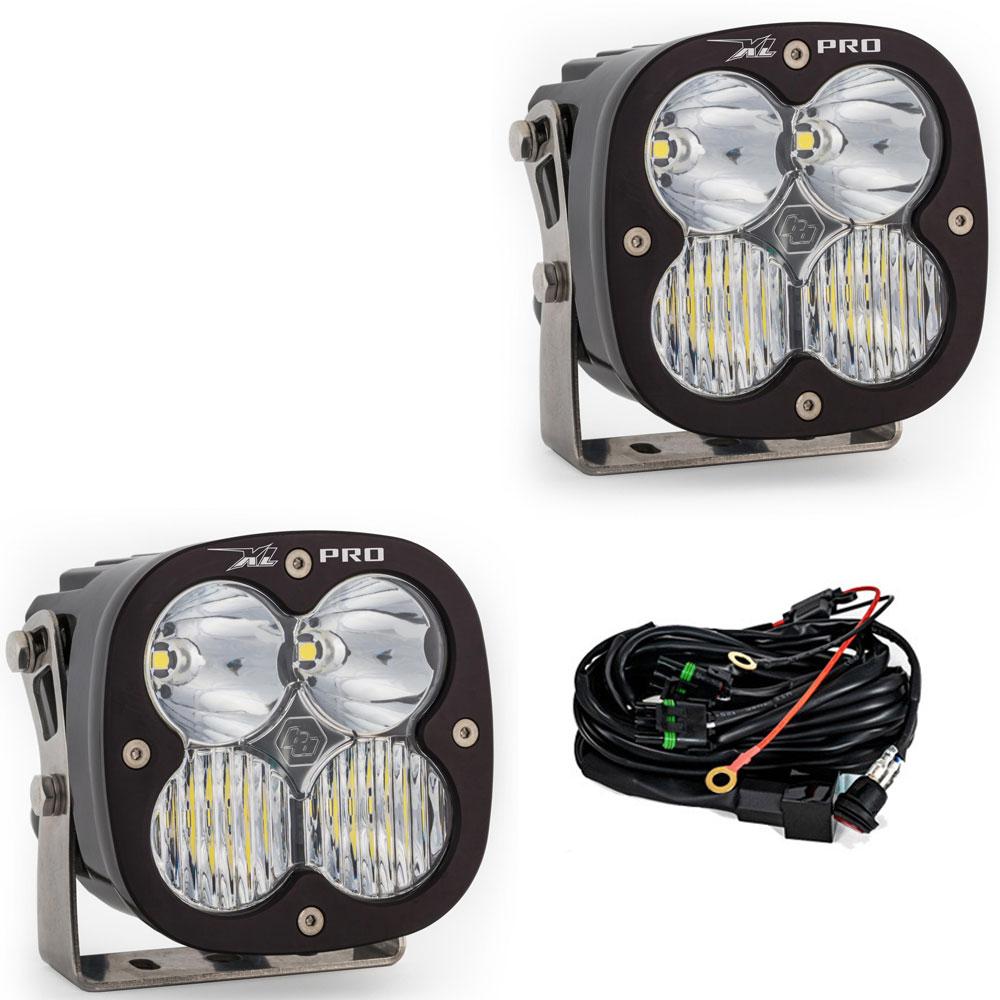

Driving Combo: Offers maximum trail coverage with a blend of driving and spot optics, providing near-field visibility in lighting zones 1 and 2, and distance coverage in zone 3.

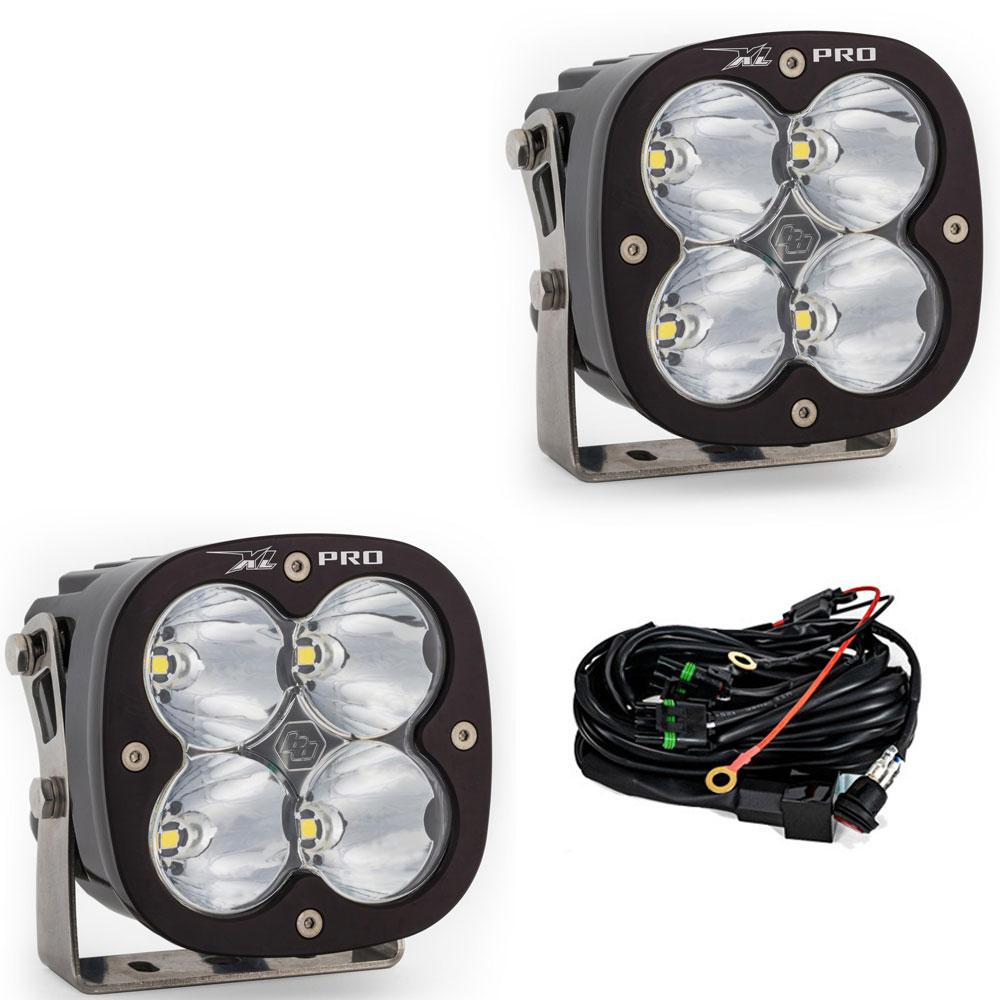

Spot: A 9-degree narrow focus beam for long-distance illumination, ideal for use with additional Wide Cornering and/or Driving Combo beams.

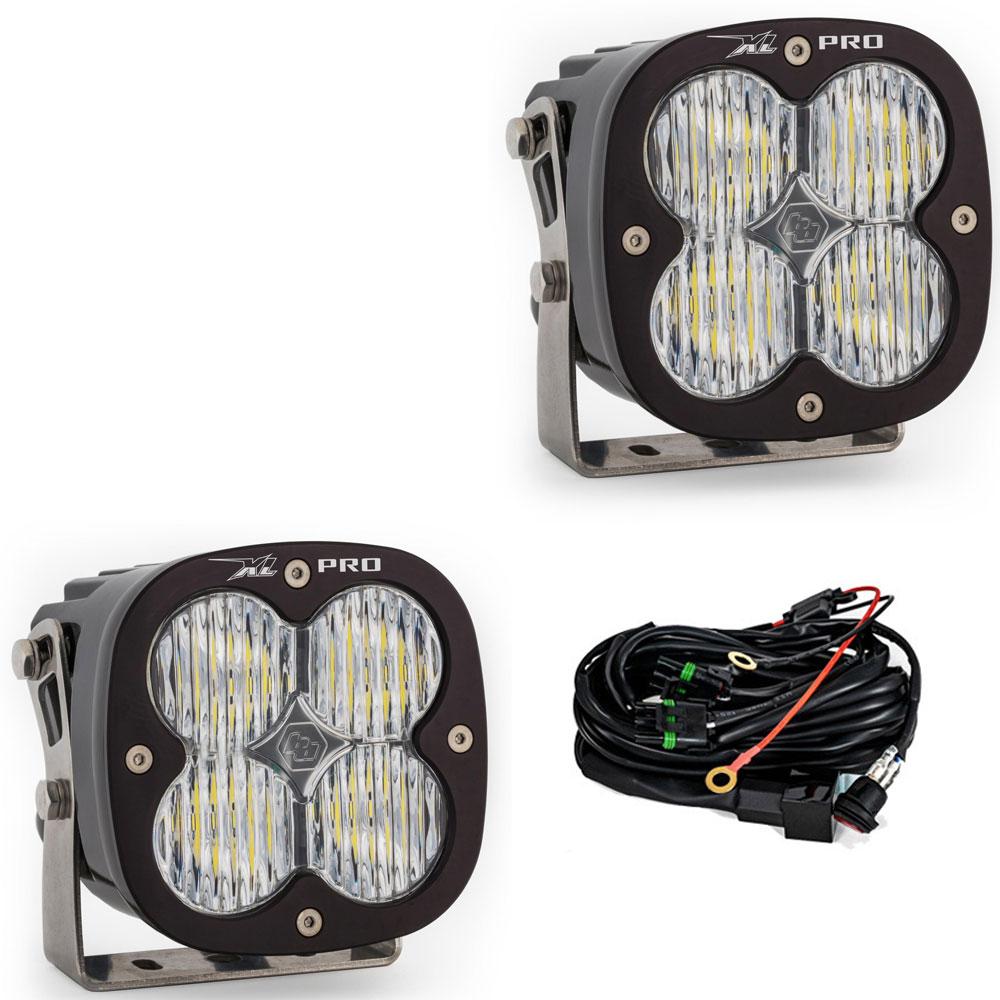

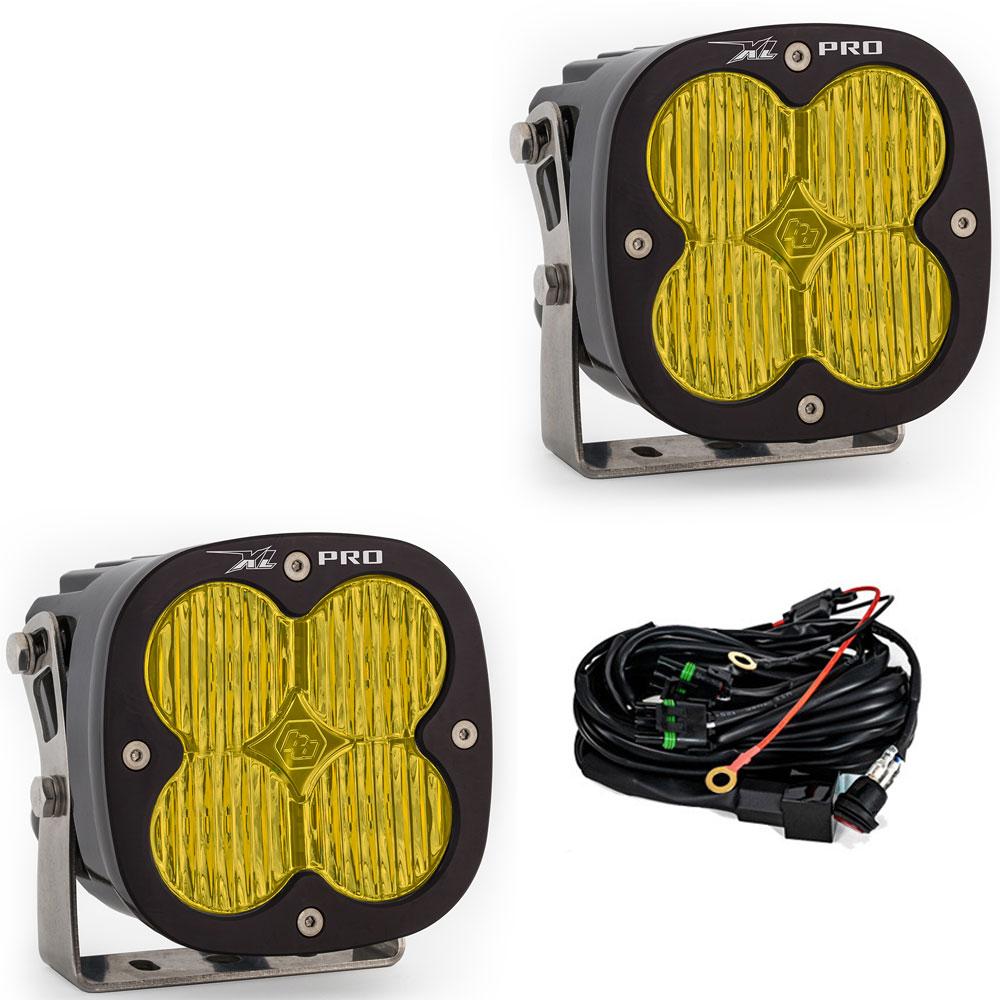

Wide Cornering: A 42-degree flattened horizontal beam for enhanced peripheral visibility, perfect for inclement weather and tight trails, ensuring better navigation through obstacles.
Key Features:
Satisfaction Guarantee: 30-Day Money-Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the light, right where you need it
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
Elevate your off-road experience with the Baja Designs XL Pro, engineered for reliability, performance, and ease of use.
