STRANDS DARK KNIGHT INTENSE 9″ DRIVING LIGHT LED *SPECIAL ORDER-CALL FOR AVAILABILITY*

Specifications:

• • Type of lamp LED
  • Type of LED LP
  • PCS LED´s Driving beam: 10
    Position light: 4
  • Voltage (V DC) 9-36V DC
  • Theoretical effect (w) 12V 150
  • Theoretical effect (w) 24V 150
  • Consumption (w) 12V 125
  • Consumption (w) 24V 115
  • Theoretical lumen 14000
  • Actual lumen 11000

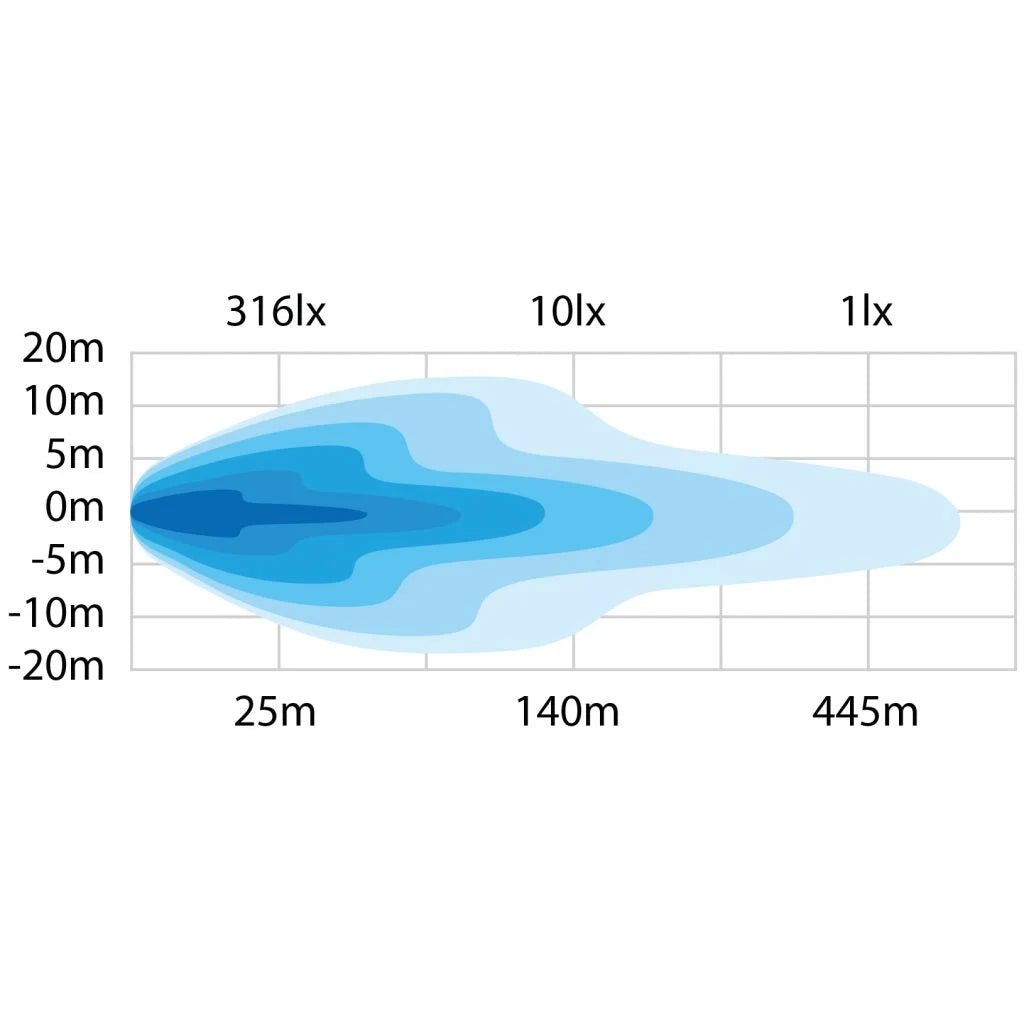

  • 1 LUX @ m 445
  • Kelvin 6000
  • IP-class 68/69K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White and amber
  • Beam pattern Combo
  • Position light Yes white and amber
  • Connection DT4
  • Cable length (mm) 500
  • Material bracket Stainless steel(sus304)
  • Material housing/chassi Aluminium
  • Material lens Polycarbonate
  • Depth (mm) 70
  • Height including bracket (mm) 233.5
  • Diameter (mm) 218
  • Operating temperature -40°C – +60°C
  • ADR-approved No
  • E-approved  Yes
  • According to regulation ECE R7 R112
  • Reference number 45
  • EMC ECE R10

*This light is sold individually and does not include a harness.
