BAJA DESIGNS LP4 PRO LED Auxiliary Light Pod Pair- Universal
BAJA DESIGNS LP4 PRO LED Auxiliary Light Pod Pair- Universal
SKU:297801
IN STOCK ONLINE
Couldn't load pickup availability
Specifications
| SKU | 297801 |
| Overvoltage Protection | Built-In |

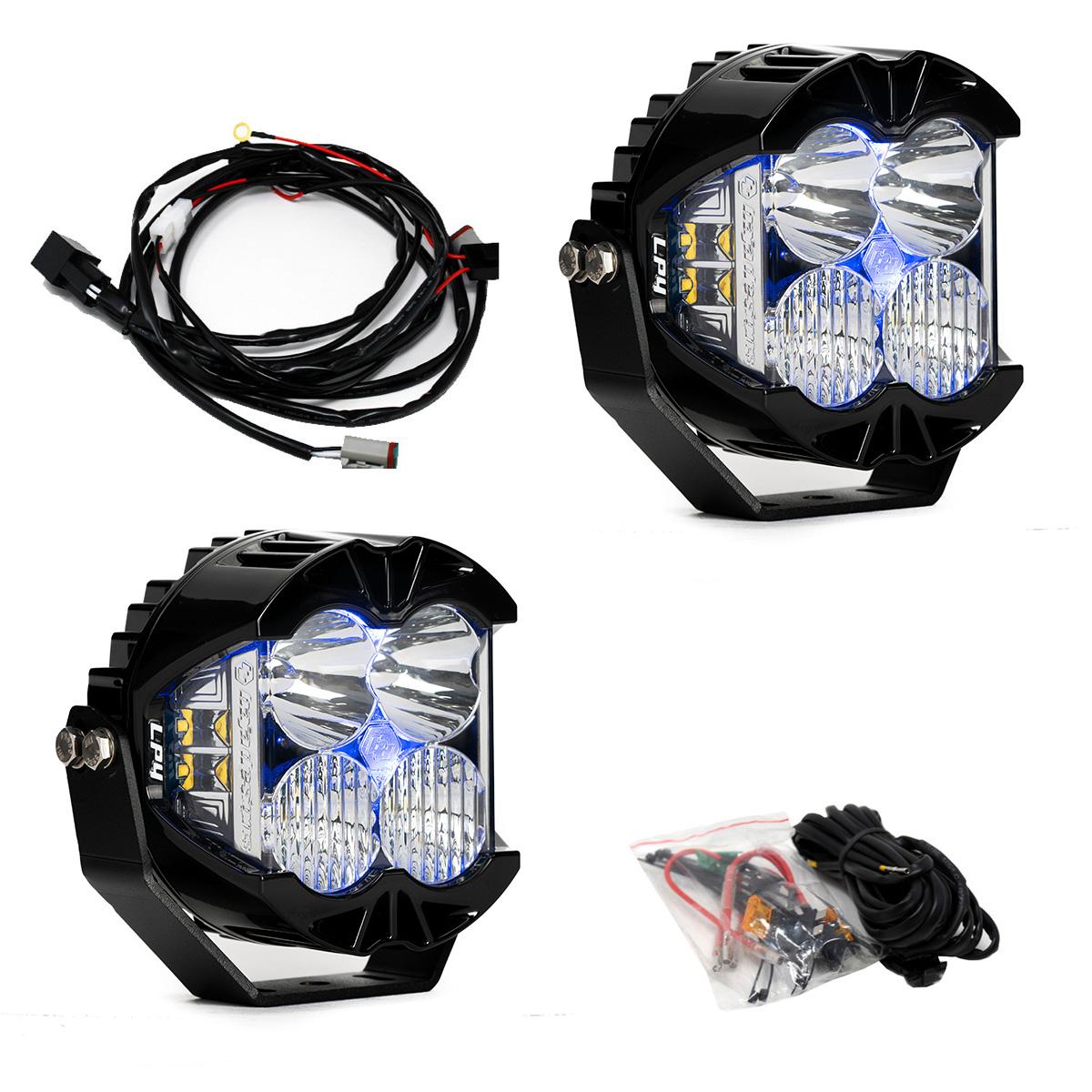

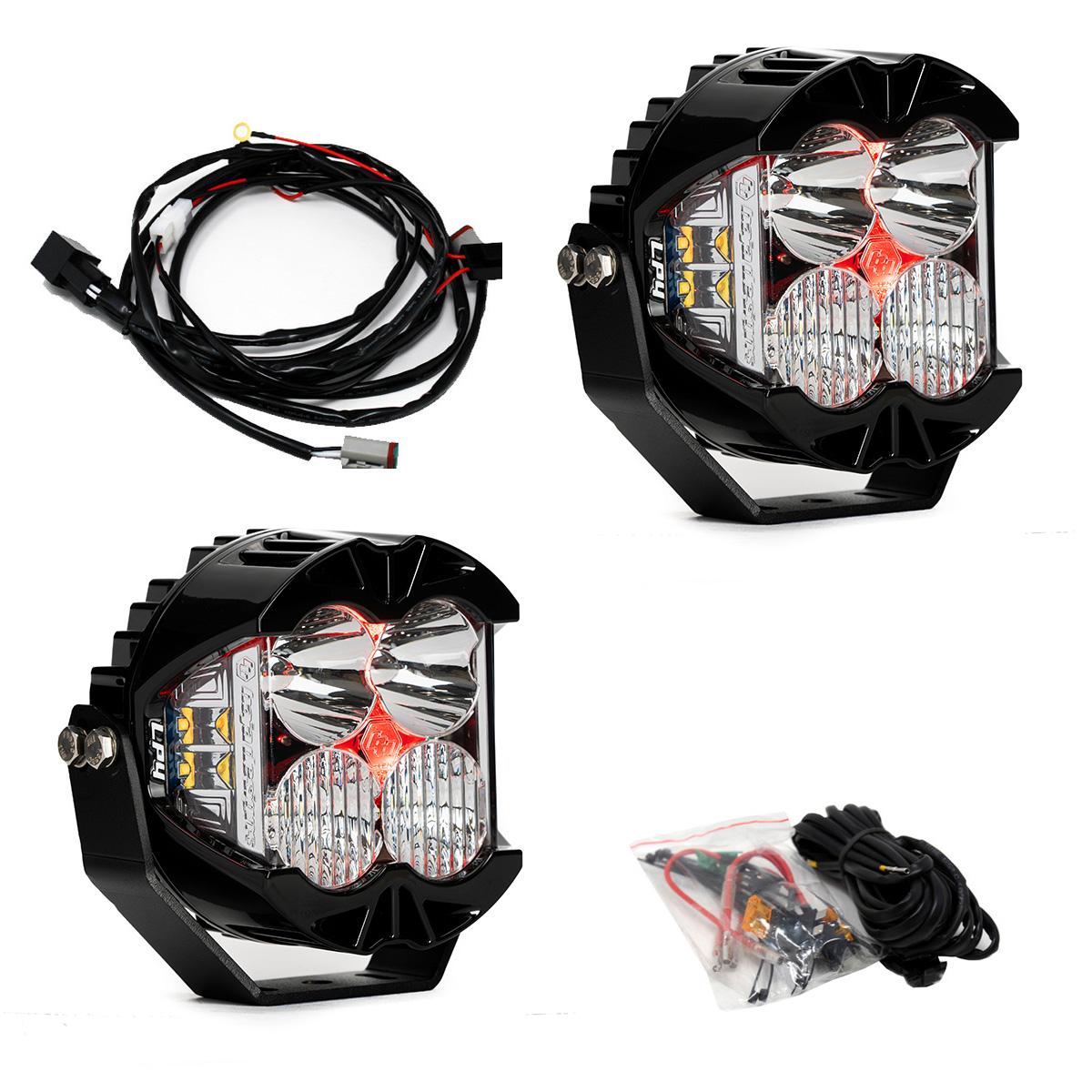

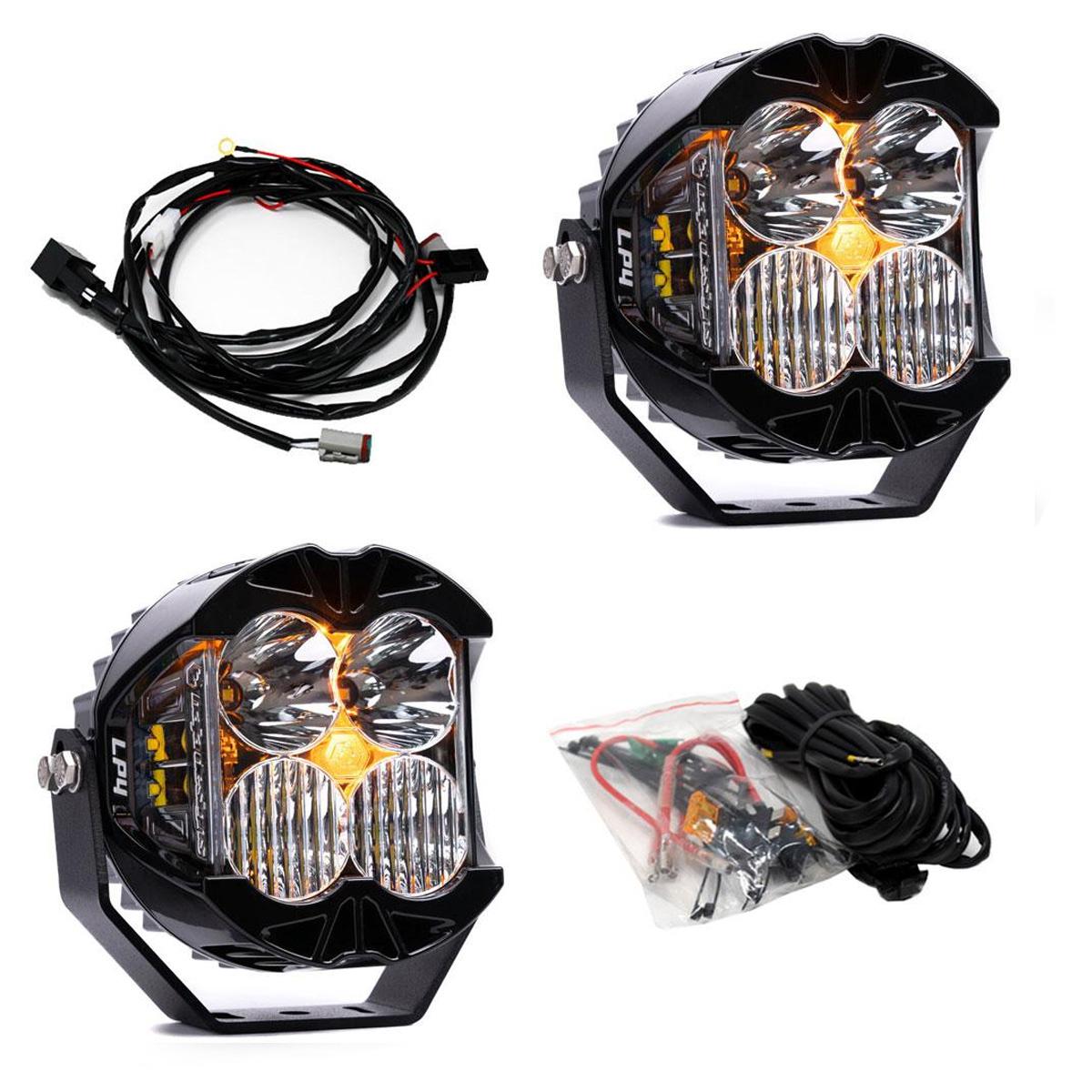

| Product Type | LP4 Pro LED Light Pod Pair w/ Wiring Harness |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | Yes |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Spot; Clear; Pair |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
Standards & Compliance
| Durability Compliance | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Impact Resistance Compliance | IK10 Compliant (Mechanical Impact Testing) |
| Water Resistance Compliance | IP69K (Waterproof up to 9ft & Pressure Washable) |

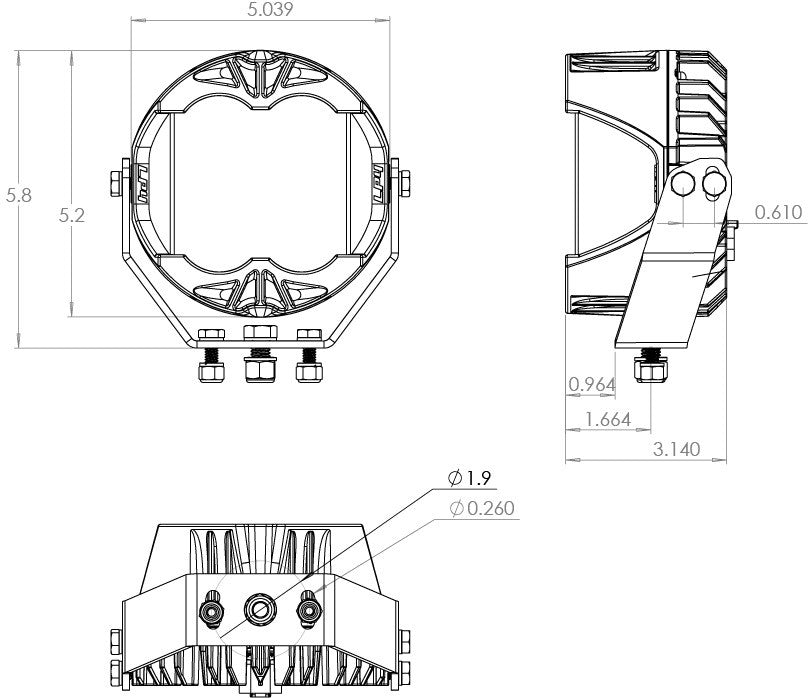

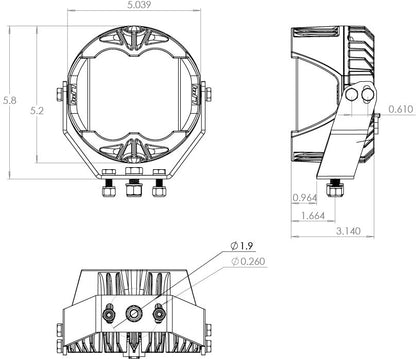

Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Weight (lbs.) | 2.800 |
Description
The Baja Designs LP4 Pro, the smallest variant in the LP lineup, maintains the power and features of its siblings. With a total of 8,857 lumens and a 200-degree spread of usable LED light, the LP4 delivers 6,885 forward-projecting lumens and 1,972 lumens of dedicated peripheral lighting through Integrated Peripheral Technology (IPT). To ensure optimal performance, the LP4 incorporates our proprietary Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. This significantly enhances cooling capacity and overall performance. The LP4 Pro offers customization with red, blue, or green backlight options in addition to the original amber, allowing enthusiasts to personalize their vehicle for shows, photo shoots, or wherever they seek attention.
Baja Designs LP series lights featuring red, blue, or green backlights are intended exclusively for exhibition use. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver bears the responsibility of adhering to all highway equipment laws and safety regulations.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)

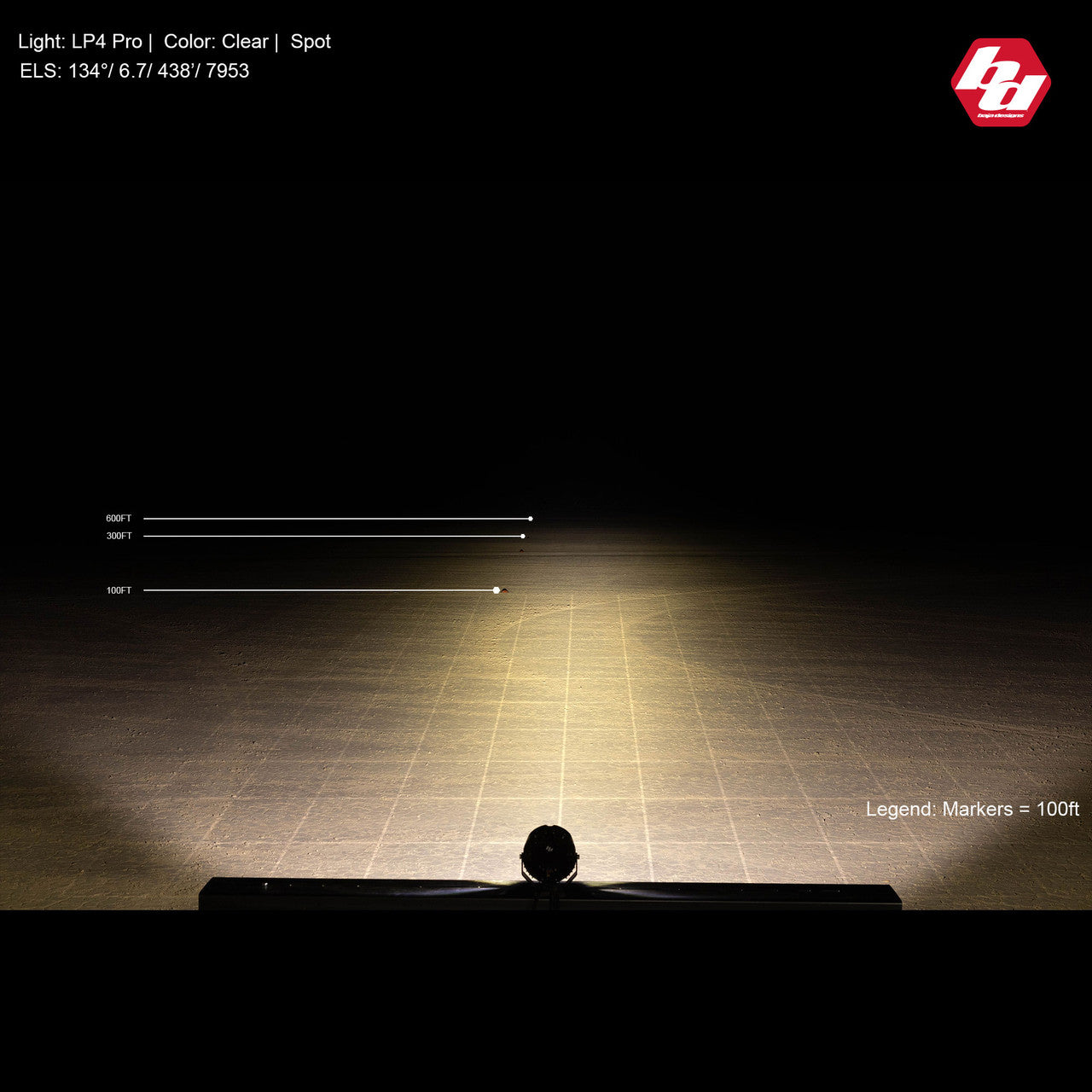

LP4 Spot (Clear): ELS 134°/ 6.7/ 438'/ 7953
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
INSTALLATION INSTRUCTIONS
DISCLAIMER AND WARNING:
Disclaimer
Baja Designs California Proposition 65

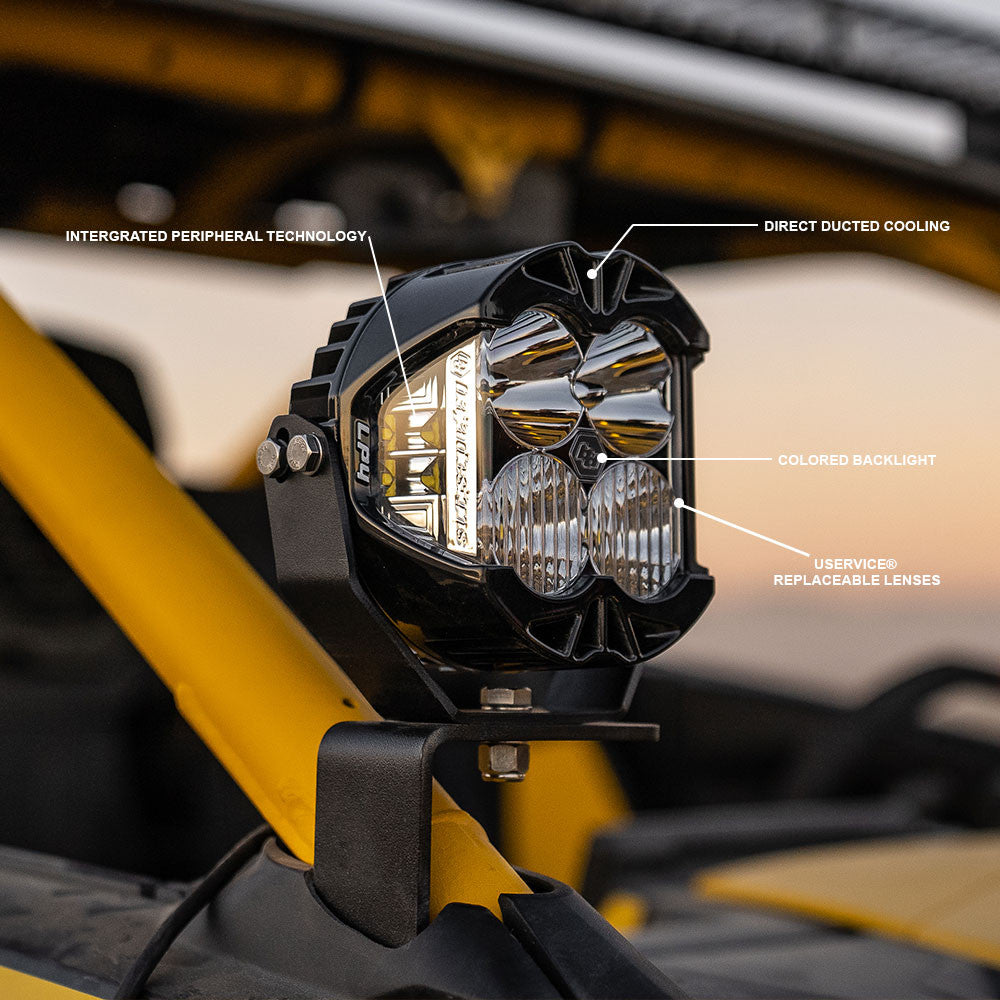

GET TO KNOW THE LP SERIES
DIRECT DUCTED COOLING (DDC)
With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
INTEGRATED PERIPHERAL TECHNOLOGY (IPT)
One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
UNIQUE DESIGN
The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.
COLOUR BACKLIGHT OPTIONS
Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
uSERVICE LENS REPLACEMENT
Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
