• Type of lamp LED
• Type of LED Osram
• PCS LED´s 4
• Voltage (V DC) 9-32V DC
• Theoretical effect (w) 12V 40
• Theoretical effect (w) 24V 40
• Consumption (w) 12V 37.1
• Consumption (w) 24V 36.5
• Functions Temperature control system
• Theoretical lumen 4800
• Actual lumen 2949

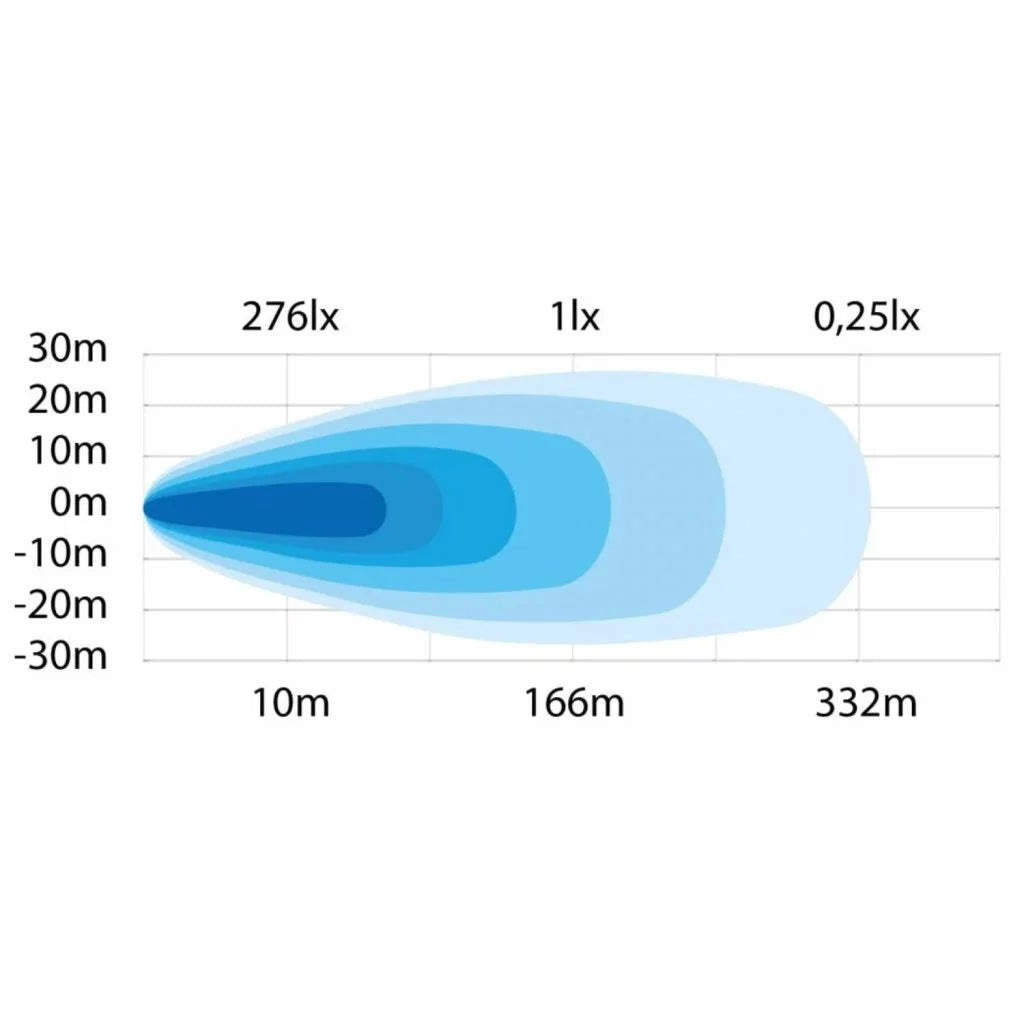

• 1 LUX @ m 166
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s Amber
• Beam pattern Flood
• Position light Yes amber and white
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassis Aluminum
• Material lens Polycarbonate

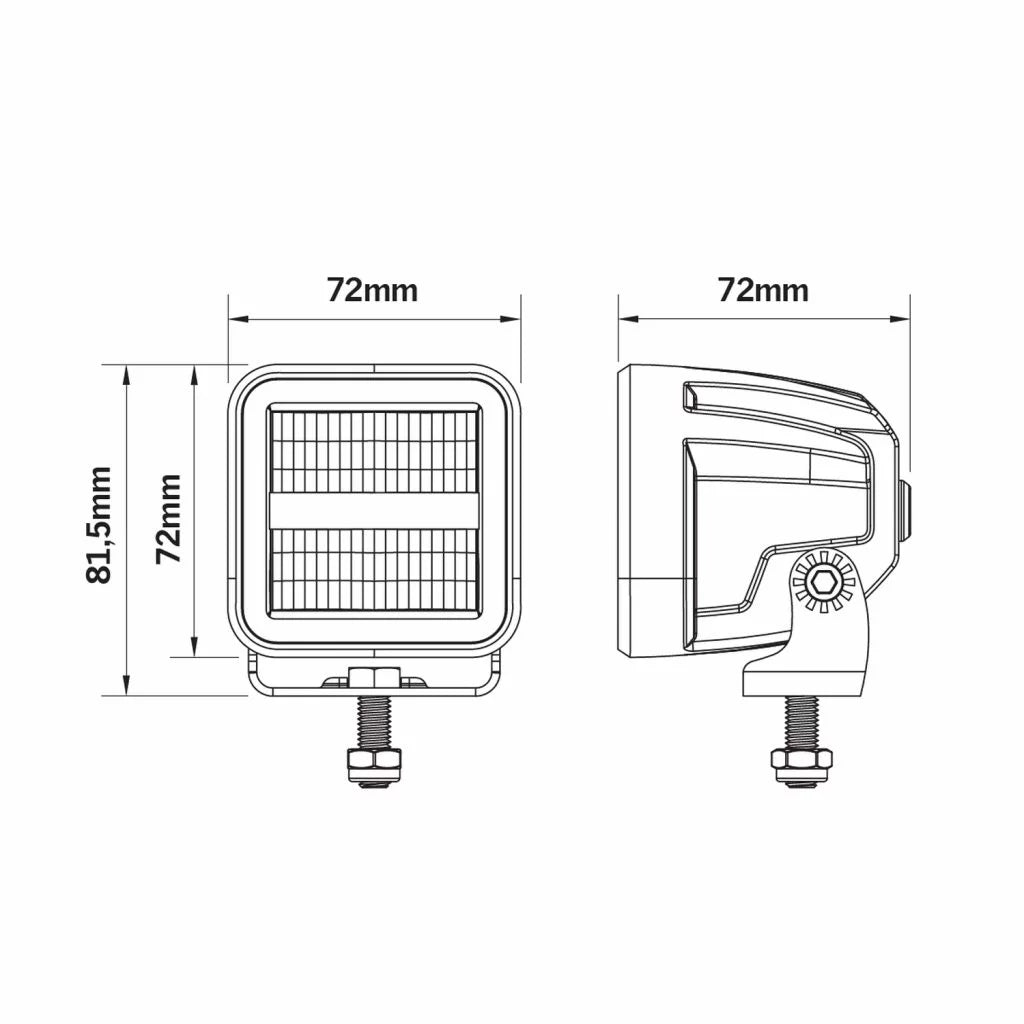

• Length (mm) 72
• Depth (mm) 72
• Height (mm) 72
• Height including bracket (mm) 81.5
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  No
• EMC ECE R10
• 3 Year Function Warranty

SOLD INDIVIDUALLY

Wiring Harness Options:

One Light – 72999 Harness + 1 x 270438 Adapter
Two Lights – 73240 Harness + 2 x 270438 Adapter
