TORKLIFT CANNON HITCH EXTENSION for Ford F-250/F-350 w/ Factory 3" Receiver
TORKLIFT CANNON HITCH EXTENSION for Ford F-250/F-350 w/ Factory 3" Receiver
SKU:E1636
IN STOCK ONLINE
Couldn't load pickup availability

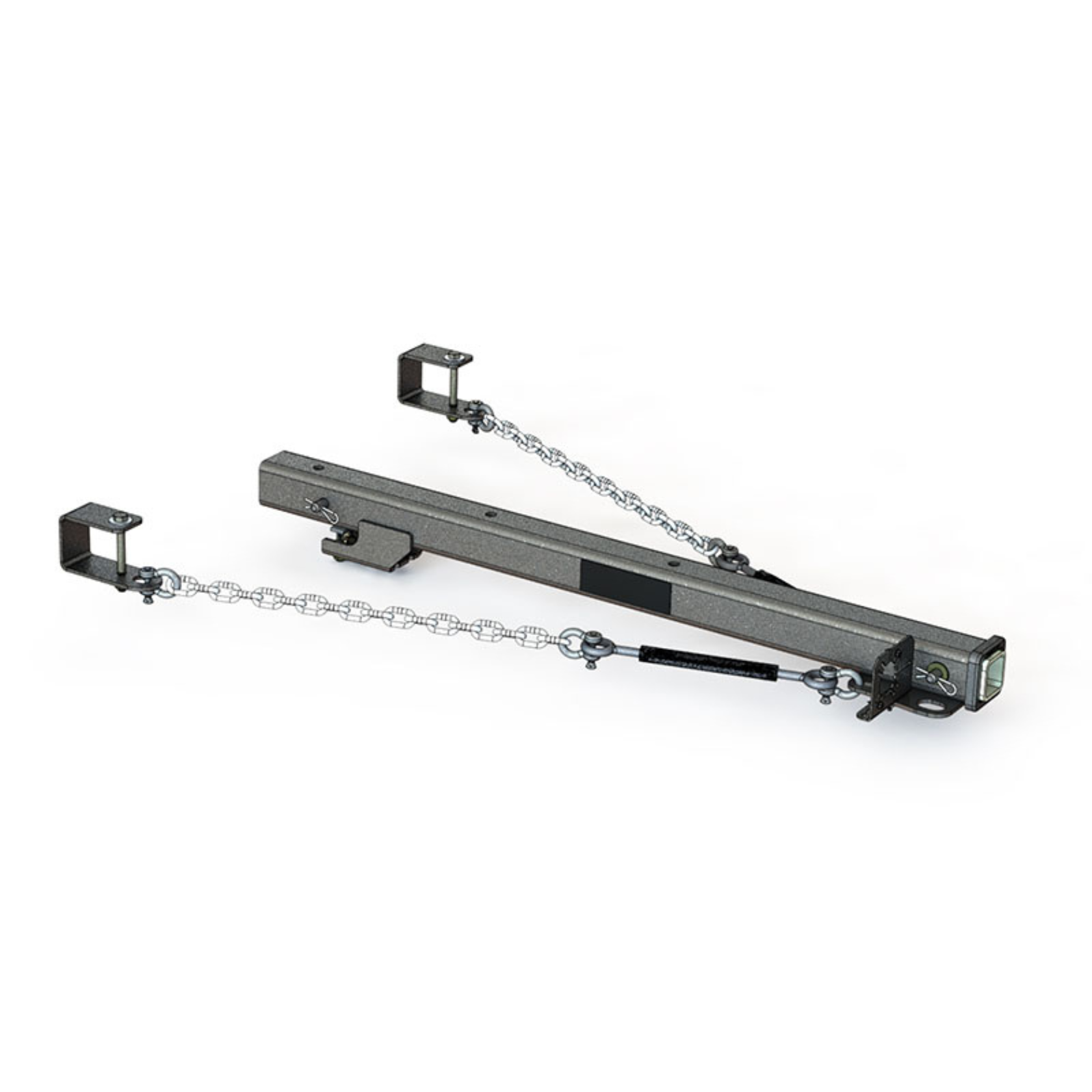

The Cannon is the only trailer receiver hitch extension manufactured specifically for 3-inch factory receivers and is perfect for a truck camper or anything else that creates overhang or the need for an extension. The Cannon utilizes the SuperTruss patented lateral support safety chains and an all new built-in set bolt system that prevents extension and receiver movement while towing. Lengths for this trailer receiver extension are 36", 42" and 48". The Cannon extension achieves high tow ratings thanks to its internal reinforcement and is rated to tow up to 7,200* lbs and 720 lbs tongue weight. Legendary Lifetime Warranty included and made in the USA. Some trucks do not come with a 3" factory receiver opening. If your truck does not have a 3" opening, see our SuperTruss Extension options.
The Cannon extension is specially designed for 3-inch truck receivers. If you are looking to tow heavier items than the Cannon is rated to, make sure you check out the World's strongest hitch and extension combination. The SUPER HITCH® and SuperTruss can achieve 14,000 pounds with weight distribution.
Features of the Cannon hitch extension include:
- Made exclusively for trucks with a 3" factory receiver
- Available in eight lengths from 21" to 60"
- Internally reinforced
- Hardened reinforced hitch pin locations
- Uses patented, lateral-support safety chains
- Compatible with 2" and 2-1/2" ball mounts
- Includes safety chains
- Legendary Lifetime Warranty
- Proudly made in the USA
*Weight ratings dependent on length of extension.
Cannon Extensions Application Guide
|
CAPACITIES DEAD WEIGHT RATING |
CAPACITIES WEIGHT DISTRIBUTING (REQUIRED) |
||
|---|---|---|---|
| LENGTH | GTW(F1) / GVW(F2) | GTW(F1) / GVW(F2) | Part # |
| 21" | 550 / 5,500 | 1,100 / 11,000 | E1621 |
| 24" | 500 / 5,000 | 1,000 / 10,000 | E1624 |
| 28" | 450 / 4,500 | 900 / 9,000 | E1628 |
| 32" | 400 / 4,000 | 800 / 8,000 | E1632 |
| 36" | 360 / 3,600 | 720 / 7,200 | E1636 |
| 42" | 330 / 3,300 | 660 / 6,600 | E1642 |
| 48" | 300 / 3,000 | 600 / 6,000 | E1648 |
| 60" | 250 / 2,500 | 500 / 5,000 | E1660 |
| F1 - Trailers Gross Tongue Weight (GTW) when fully loaded F2 - Trailers Gross Vehicle Weight (GVW) when fully loaded |
|||
| Footnotes: Consult owners manual for specific vehicle towing capacity (WARNING: The higher capacities are obtained only with the use of the load equalizing hitch. Exceeding these dead weight capacities, without using a load equalizing hitch, may result in damage to the hitch or your vehicle.) Caution: Weight distributing hitch is mandatory on larger trailers. † Works with 36" - 60" Cannon extensions (SUPER HITCH® F1005H - Requires minimum 48" Cannon Extension). Minimum length requirements due to interference with lateral support safety chains. | |||
